Help! 78 Corolla Se Ke55


  • Please log in to reply
22 replies to this topic

#1 Trentshad

Trentshad

    New Member

  • Members
  • PipPip
  • 13 posts
  • Online:27 Jan 2017 08:22 PM
  • Real Name:Trent

Posted 26 January 2017 - 03:30 PM

I have just come into possession of a 78 Carolla. Body and everything is in great shape. The engine has a bad knock. It's undrivable because of the knock. I drove it on to and off of a car trailer to get it back to my house. The engine say ke55 but I was told it's been replaced with a Jem engine? In the past. I want to replace the engine. Is there a brand new engine that will go into this car or if not does anyone know where I could track down a reconditioned one and a someone who works on these to put it in. Or worst case scenario someone to fix the engine that's already in there.

#2 altezzaclub

altezzaclub

    Uber Member

  • Regular Member
  • PipPipPipPipPipPipPipPipPip
  • 5544 posts
  • Online:15 Feb 2017 07:18 PM
  • Gender:Male
  • Location:All over NSW...

Posted 26 January 2017 - 08:52 PM

Where abouts do you live?? 4K engines are common and cheap. I don't know what a jem engine is, Holden Gemini?? Throw it away!

Also, what gearbox is on it?? To return to a Corolla motor might be difficult unless you have a donor car for engine, gearbox and driveshaft.

How much do you know about working on cars and what can you do yourself??
The Girl's KE70 ...........................................................and The Golden Hoonicorn
http://www.rollaclub...showtopic=42407..................................... http://www.rollaclub...lden-hoonicorn/

How not to build a rally car ......................................................... ..and HOW to build a rally car-
http://www.rollaclub...089#entry641089 ................................ http://www.rollaclub...ld-a-rally-car/

#3 Taz_Rx

Taz_Rx

    Brappn or boostn

  • Tech Moderator
  • 6589 posts
  • Gender:Male
  • Location:Hobart
  • Real Name:Si

Posted 26 January 2017 - 09:06 PM

GM maybe? Got pics?
I am just a worthless liar, I am just an imbecile. I will only complicate you, trust in me and fall aswell.

TAR - KE55E 5KTE. BB T28, 7K EFI, T50...all the good stuff!! :)
DIRT - KE55E 3/4kc. 4k w/- 3kBP head, 609 lumpstick, weber, extractors & exhaust etc....all the left overs!! :P
Un-named RX4 - 13bbp, weber, 2x2.5 ex, lensos....too much more to list!! :?
Posted ImagePosted ImagePosted Image

#4 Trentshad

Trentshad

    New Member

  • Members
  • PipPip
  • 13 posts
  • Online:27 Jan 2017 08:22 PM
  • Real Name:Trent

Posted 26 January 2017 - 09:07 PM

Thanks for you response.
I'm in Carlingford. Not sure what the engine in it is, or if it's Jem or gem. I've been looking around and I've found a 4K motor and gearbox. The gearbox in it now is auto. The one I have found comes with a four speed manual box. Is the motor the same regardless of the gearbox? My Mrs wants to keep it auto. It's actually was her first car but has been in storage for years.
I'm a plumber so I'm reasonably handy. I have a mechanic mate who can give me a bit of guidance to.

#5 Trentshad

Trentshad

    New Member

  • Members
  • PipPip
  • 13 posts
  • Online:27 Jan 2017 08:22 PM
  • Real Name:Trent

Posted 26 January 2017 - 09:08 PM

I've got pics. Just trying to figure out how to post them

#6 parrot

parrot

    Traditionalist

  • Senior Member
  • 2381 posts
  • Online:Today, 11:18 AM
  • Gender:Male
  • Location:Melbourne
  • Real Name:Pete

Posted 26 January 2017 - 10:50 PM

Weren't GEM engines a rebuilt/ replacement crowd?

AE86 Levin GT
KE15 Sprinter SL
TE27 Levin


Rear in the leaf spring, I will issue the ass immediately.

#7 corollaart

corollaart

    Known Member

  • Regular Member
  • PipPipPipPipPipPip
  • 552 posts
  • Gender:Male
  • Location:armidale
  • Real Name:rob

Posted 27 January 2017 - 05:43 AM

Your right parrot,GEM was reconditioning out fit back in the day.

I would at least pull the motor out and disassemble it to see how good or bad it is.

If it has stuffed crank or cylinders scrored it maybe cheaper to start with a better engine.

I'm sure some one on here would have a good rebuilder engine.

The auto will bolt to manual motor you have to remove the clutch and fly wheel and spigot bearing in the end of the crank

and fit the auto drive plate.

I think you will find that the auto transmission is a holden trimatic ,which toyota adapted to fit the 4k motors,so parts for that should be dime a dozen.

rob

Edited by corollaart, 27 January 2017 - 05:53 AM.


#8 Big G

Big G

    New Member

  • Members
  • PipPip
  • 29 posts
  • Online:23 Feb 2017 12:26 PM
  • Real Name:Graeme

Posted 27 January 2017 - 06:10 AM

GEM were an engine rebuild company in the day. Everything reconditioned you could could think of. They were on just about every street corner. Then came the day of the Jap imports and they disappeared off the face of the earth. If you were buying a car from the local classifieds and it had a Gem reco in it that was a bonus. A friend of mine worked there and they had some dodgey practices like boring the block with the crank in place. Just a fun fact.

#9 altezzaclub

altezzaclub

    Uber Member

  • Regular Member
  • PipPipPipPipPipPipPipPipPip
  • 5544 posts
  • Online:15 Feb 2017 07:18 PM
  • Gender:Male
  • Location:All over NSW...

Posted 27 January 2017 - 07:44 AM

Well, sounds like its a stock 4K and you know enough to strip it and find the rattle.

If you rebuild it you know its good for years to come, although it will probably cost more than an unknown bought engine you just fit and hope.
The Girl's KE70 ...........................................................and The Golden Hoonicorn
http://www.rollaclub...showtopic=42407..................................... http://www.rollaclub...lden-hoonicorn/

How not to build a rally car ......................................................... ..and HOW to build a rally car-
http://www.rollaclub...089#entry641089 ................................ http://www.rollaclub...ld-a-rally-car/

#10 ke70dave

ke70dave

    Well Known Member

  • Tech Moderator
  • 3664 posts
  • Online:Today, 12:28 PM
  • Gender:Male
  • Location:Brisbane 4178

Posted 27 January 2017 - 09:22 AM

To answer your question the engines are the same weather auto or manual. just there are a few little things that you need to swap over if you swap them. Swap the automatic flywheel and torque converter, there is a kick down on the carby on the auto engine, the maunal carby might have provision for this or you migth need to swap the linkages. Possibly a few other minor things but those are the main two differences.

Edited by ke70dave, 27 January 2017 - 09:23 AM.

Everyone is entitled to their own opinion, but not to their own facts.

#11 Trentshad

Trentshad

    New Member

  • Members
  • PipPip
  • 13 posts
  • Online:27 Jan 2017 08:22 PM
  • Real Name:Trent

Posted 27 January 2017 - 08:02 PM

Hey Guys,
Thanks for your rsponses.I jutuoded pictures and the compute crashed then I did it again and it froze and timed out. Done with computers for today. I'm going to get this engine and manual gearbox. The old engine and gearbox will be up for grabs once I'm done. Will prob need a bit of guideance as I go along. Thanks for your responses! Its been very helpful. I will get some photos on soon, just done for tonight

#12 Trentshad

Trentshad

    New Member

  • Members
  • PipPip
  • 13 posts
  • Online:27 Jan 2017 08:22 PM
  • Real Name:Trent

Posted 27 January 2017 - 08:05 PM

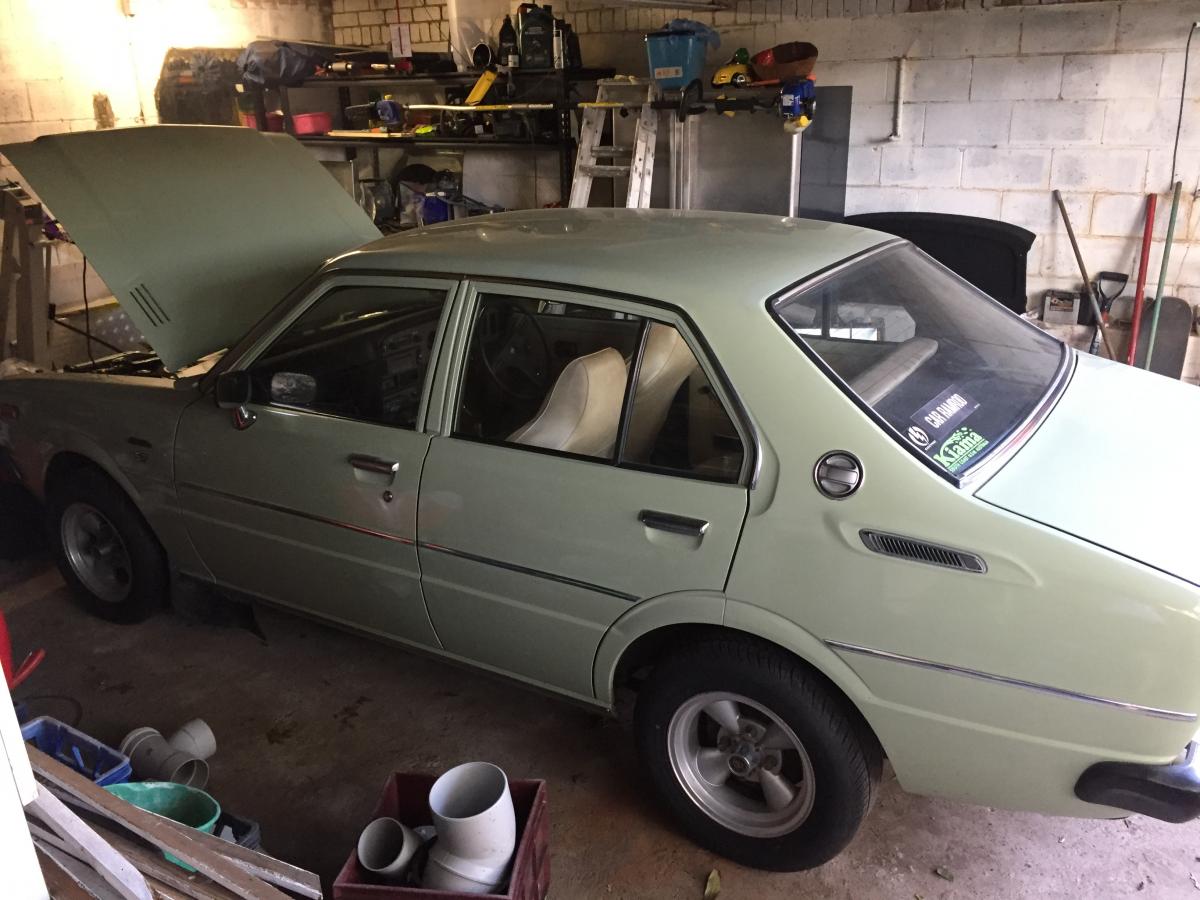

here's a pic

Attached Thumbnails

  • IMG_5984.JPG


#13 Trentshad

Trentshad

    New Member

  • Members
  • PipPip
  • 13 posts
  • Online:27 Jan 2017 08:22 PM
  • Real Name:Trent

Posted 27 January 2017 - 08:07 PM

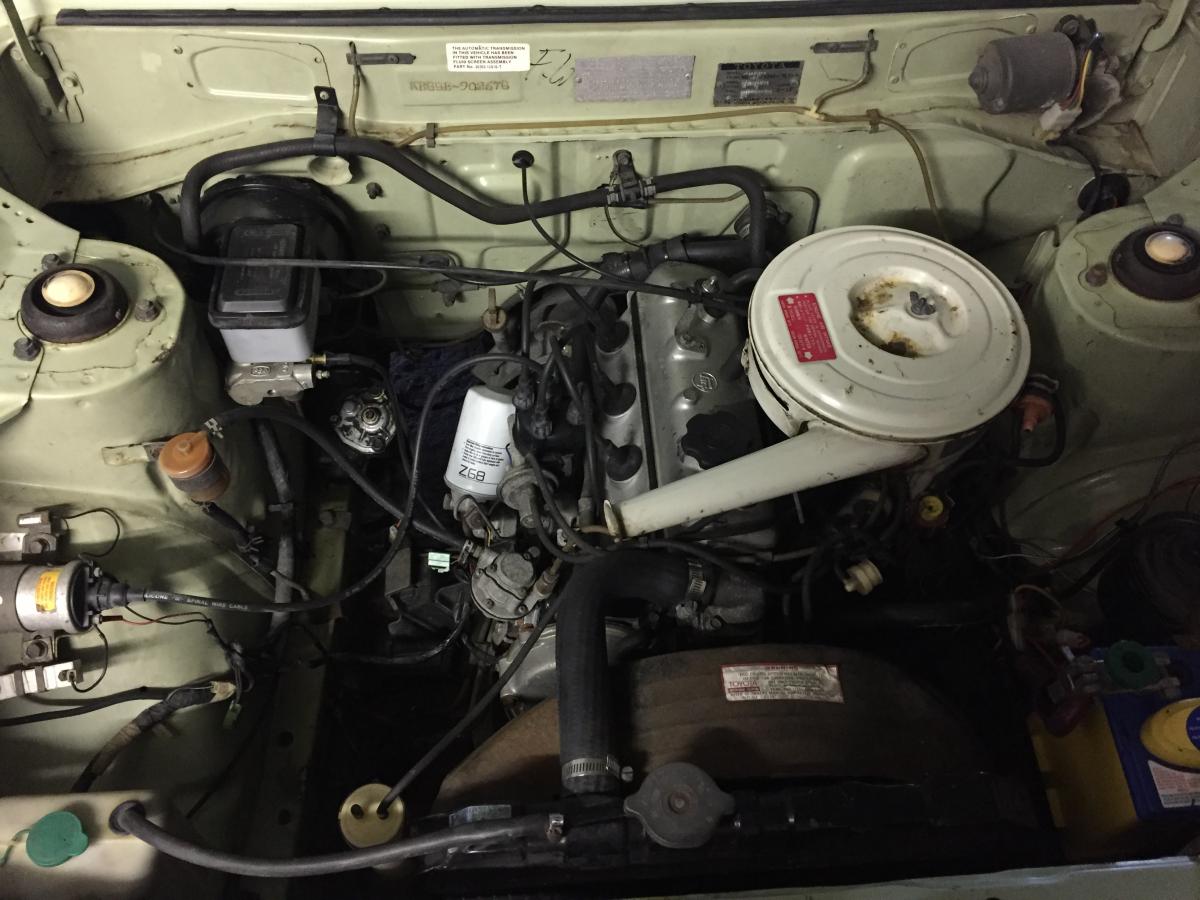

Engine

Attached Thumbnails

  • IMG_5988.JPG


#14 Trentshad

Trentshad

    New Member

  • Members
  • PipPip
  • 13 posts
  • Online:27 Jan 2017 08:22 PM
  • Real Name:Trent

Posted 27 January 2017 - 08:09 PM

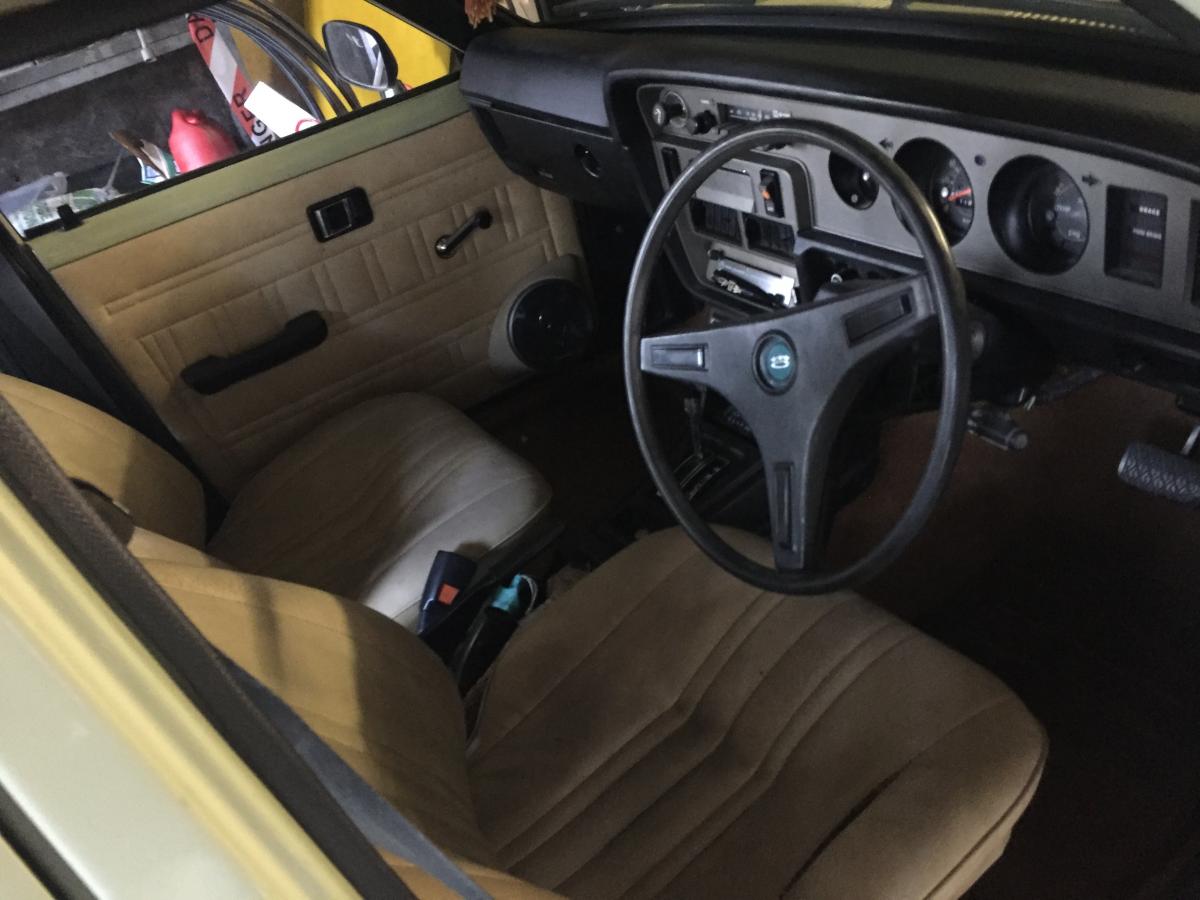

Interior

Attached Thumbnails

  • IMG_5993.JPG


#15 Trentshad

Trentshad

    New Member

  • Members
  • PipPip
  • 13 posts
  • Online:27 Jan 2017 08:22 PM
  • Real Name:Trent

Posted 27 January 2017 - 08:12 PM

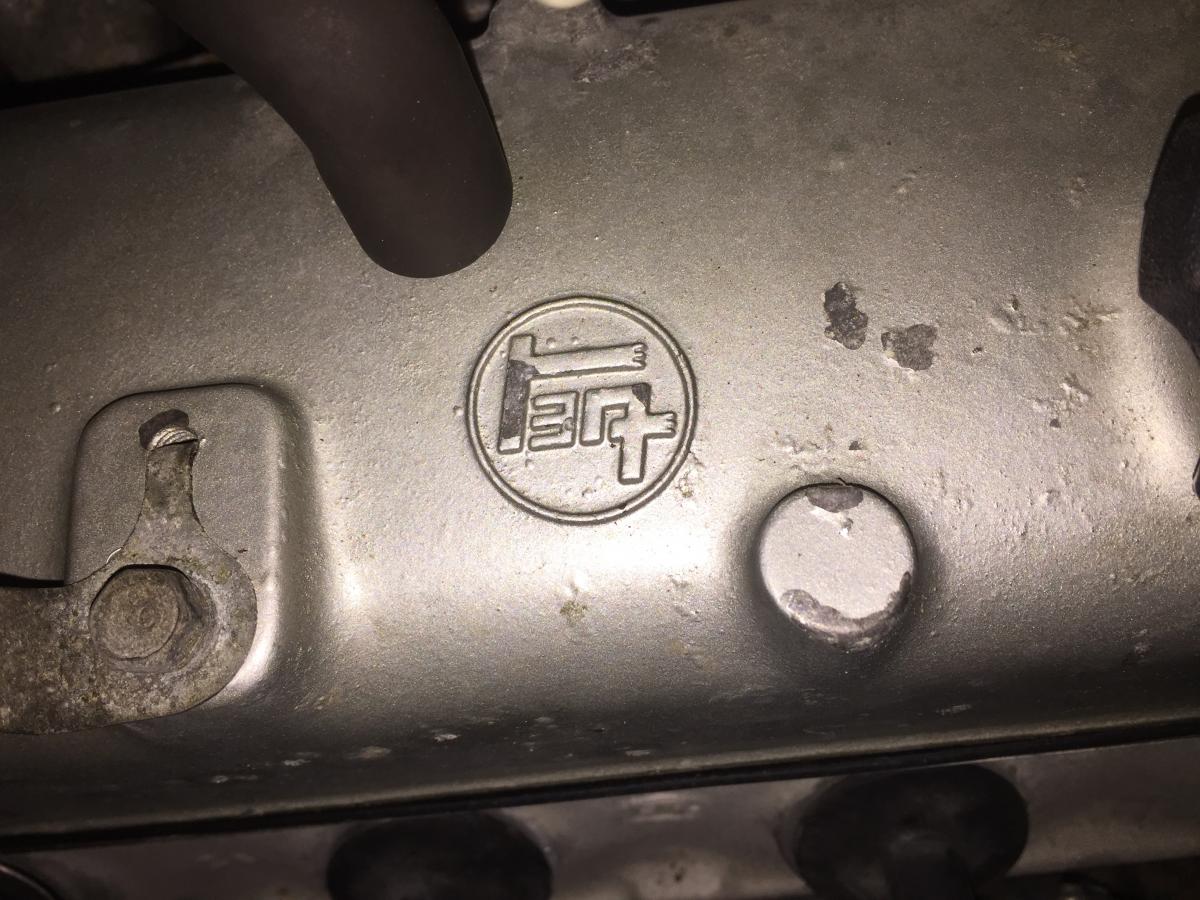

Logo on engine

Attached Thumbnails

  • IMG_5987.JPG
