I'm looking for a vacuum hose diagram for an auto 4K engine (out of a KE55). The diagram on the bonnet of the car here has been sprayed over and is unreadable. Whoever worked on the car last decided to hook them all up their own way, blocking off some lines with a screw and putting many T pieces where there was no need for T pieces :yes:

Any help you guys can give me is much appreciated.

its all in the Knowledge Base/FAQ



had the same problem in my 70, the main ones you need are

1: from charcoal canister

2: distributor advance to carby



and just try to make it look pretty from there



use these pictures grasshopper

http://www.rollaclub.com/faq/index.php?tit..._System_Diagram

its all in the Knowledge Base/FAQ



had the same problem in my 70, the main ones you need are

1: from charcoal canister

2: distributor advance to carby



and just try to make it look pretty from there



use these pictures grasshopper

http://www.rollaclub.com/faq/index.php?tit..._System_Diagram



Thanks heaps. My car is an auto though, is there much difference? I have five metres of vacuum hose and a heap of T pieces here, so I want to get it all back to stock - at least until I decide what engine is going in there :yes:

I'm pretty sure it doesnt matter, man or auto.

if your engine is stock (stock carby, unbroken vacuum plugs, etc) it shoudnt be a problem

just study the picture and you should be right

I'm pretty sure it doesnt matter, man or auto



It does, the auto has a stack more hoses and stuff like valves and vacume switches.



Grab a manual and go to the emession section, theres a diagram in there.

It does, the auto has a stack more hoses and stuff like valves and vacume switches.



Grab a manual and go to the emession section, theres a diagram in there.





Told you to talk to these gyes didn't I.

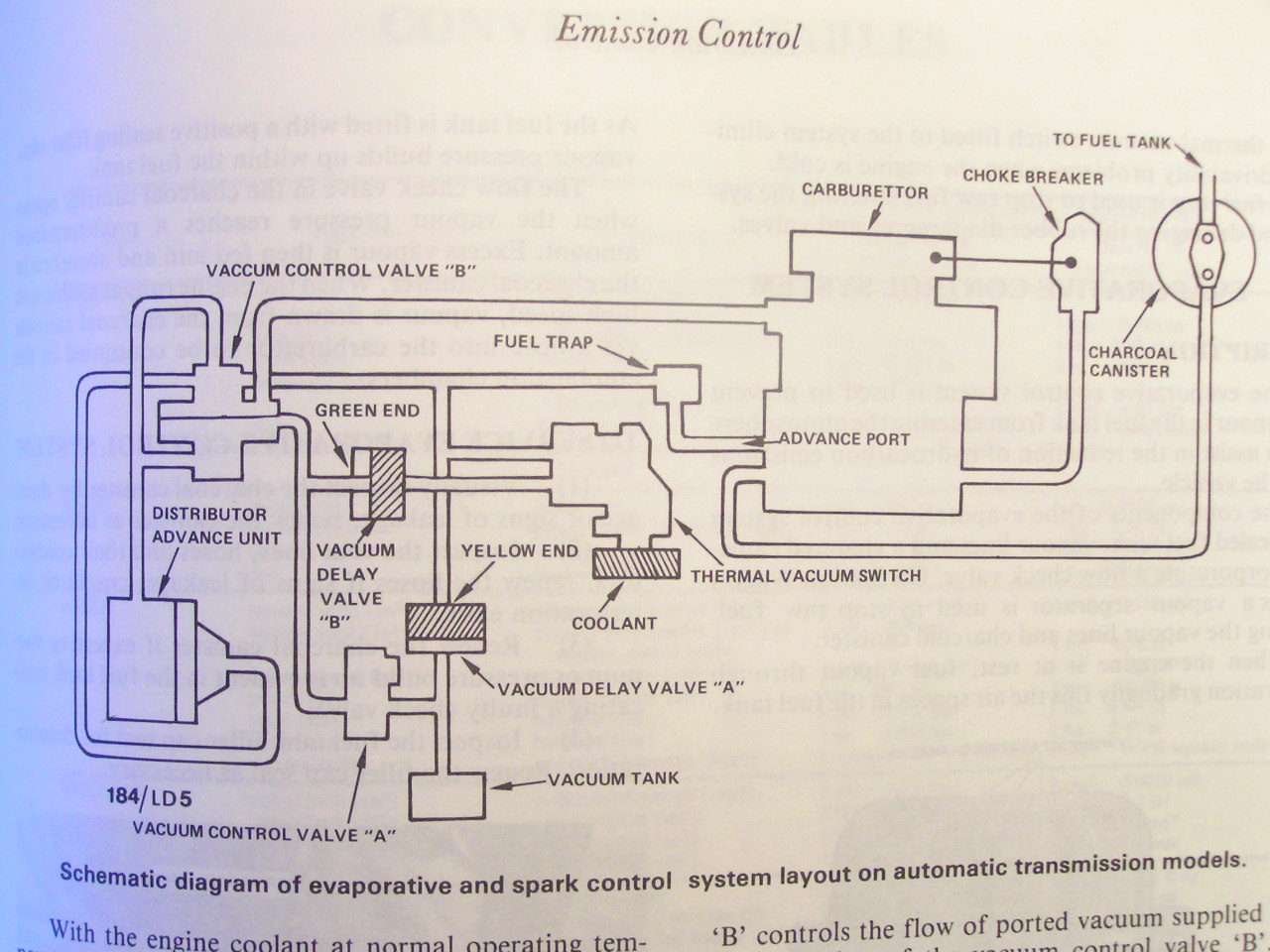

This is out of the Gregorys repair manual.

Told you to talk to these gyes didn't I.



This is out of the Gregorys repair manual.



That is EXACTLY what I needed. Thankyou very much.

That is EXACTLY what I needed. Thankyou very much.



Anytime champ(Y)
