I've finally got my ke20 painted so the parts are all going back on and I'm trying to figure out how the wiper motor goes back in and various other bits. Would anyone be kind enough to post a pic of their under dash area? :bash:

inside the cabin? the firewall (for wiper motor mounting)?

inside the cabin? the firewall (for wiper motor mounting)?



Yep inside. I've been trying to figure out the orientation of the wiper motor and some of the heater ducting. I have a manual but it left this area out. :bash:

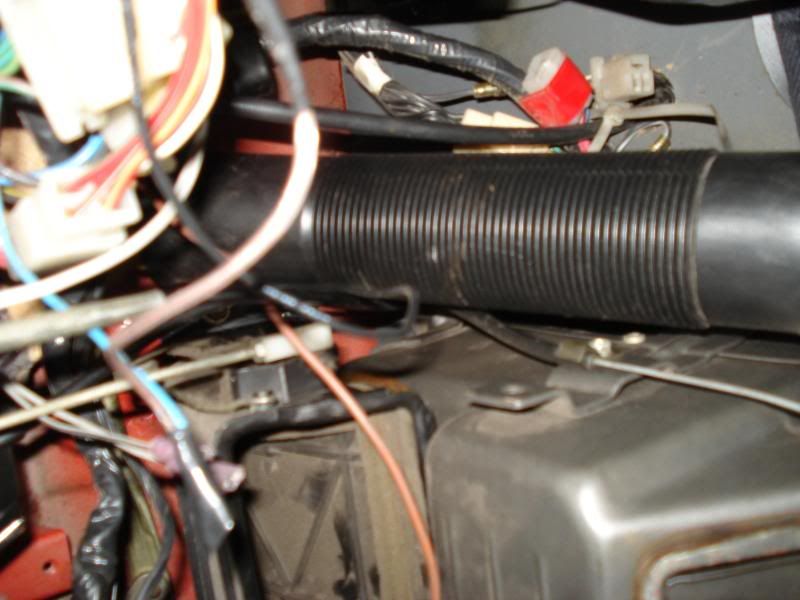

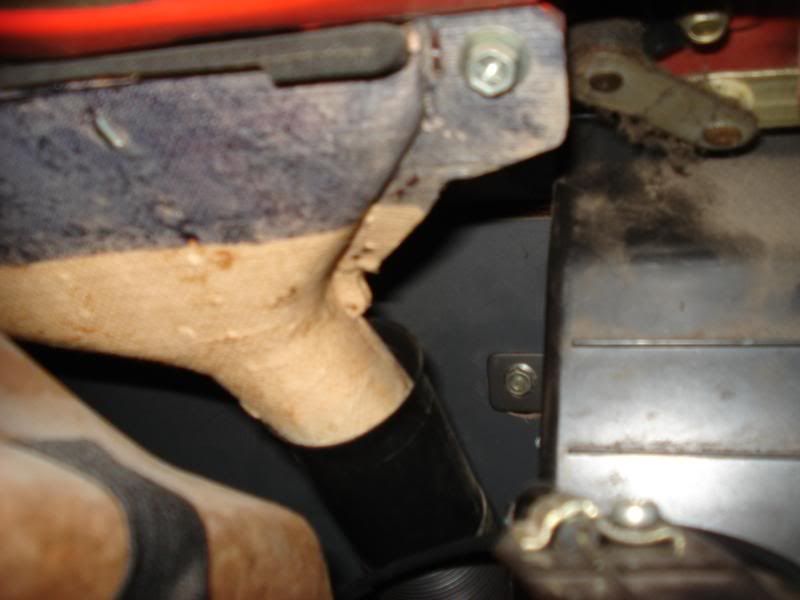

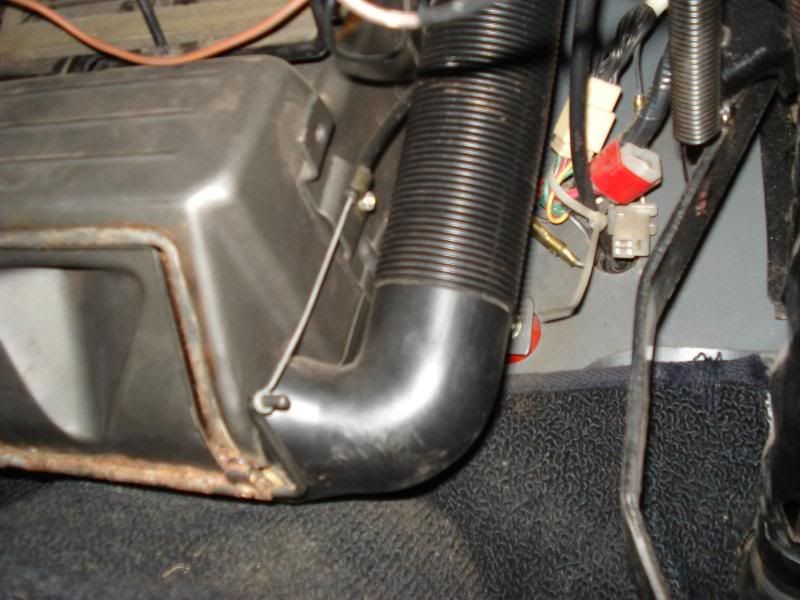

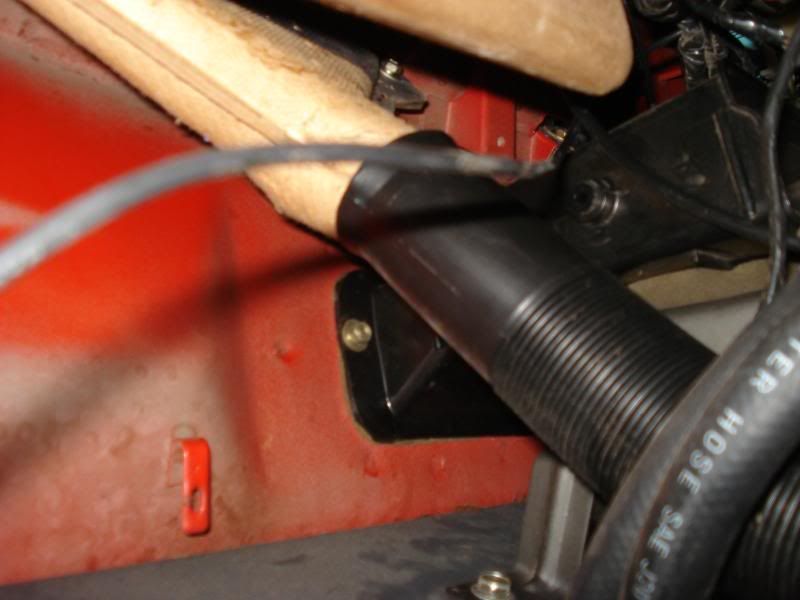

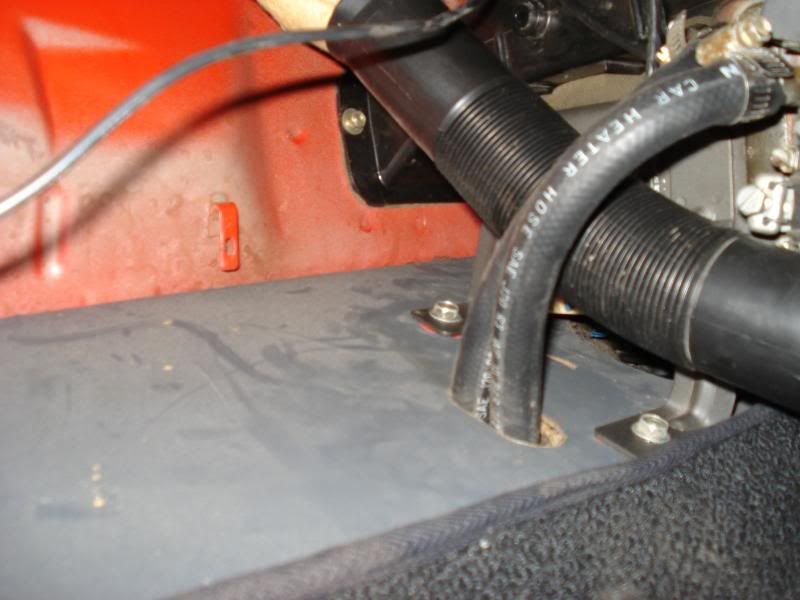

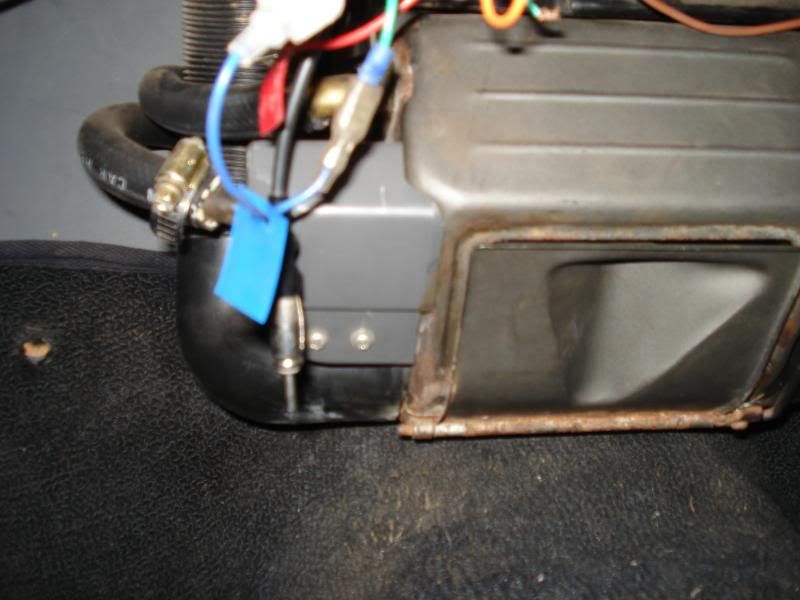

here's some i took the other morning



excuse the blur and the non-rotated ones :bash:



i'll grab some of the wiper motor tonite



Edited August 2, 200818 yr by dfunkt

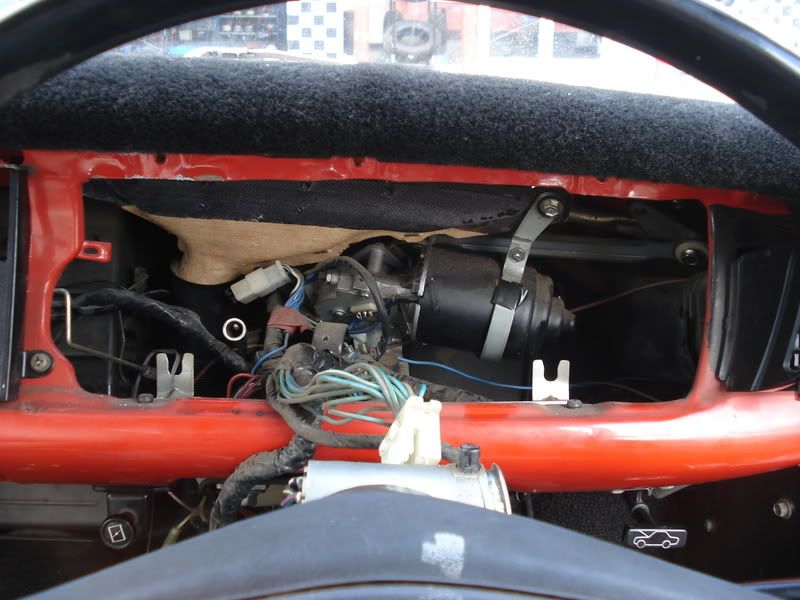

Here's a general shot looking where the cluster should be



Love your work! Thanks for posting these dfunkt! :lol:

you just got lucky with your timing pieman...



altho, i now have to swap clusters again as i need to find why the dash lights aren't working :lol:

lets get some pics of the painted car!
