l1ttle_d3vil Posted March 19, 2005 Report Share Posted March 19, 2005 posted this message on toyspeed but haven't solved much there so thought ill try here. heres a link to that thread so you don't end up asking the same questions. http://forums.toyspeed.org.nz/viewtopic.php?t=29092 ...heres my original thread. got a problem wiring my ignitor up... the green plug off the coil/ignitor pack (in the top left) plugs into the yellow plug i have arrowed. thats all sweet but where is the smaller green two pin plug (in the box) supposed to go? from looking at wiring diagrams it seems that it goes to the ignitor aswell but i only got one plug coming from the ignitor. so...do i have the wrong ignitor? (its off a 1985 ae82 fxgt - i don't know the exact model of my engine or what the loom is off) I'm thinking that could be part of the problem as the plug colours don't match - then again ive never seen a coil with a yellow plug. or is there another way around it? can i just cut the plug off and rewire it to the coil or something? any help would be appreciated. cheers Quote Link to comment Share on other sites More sharing options...
ira11y Posted March 20, 2005 Report Share Posted March 20, 2005 (edited) Well you have there a big port ignitor and coil, the green plug should plug up to another green plug and the yellow plug goes to the distributor ( 3 pin), where did you get the loom for your engine? and you need to find what engine you have exactly. If your loom has grey plugs then id say that you have a smallport loom. Is that a rwd jap engine?? the dizzy looks to be a rwd version? Edited March 20, 2005 by ira11y Quote Link to comment Share on other sites More sharing options...

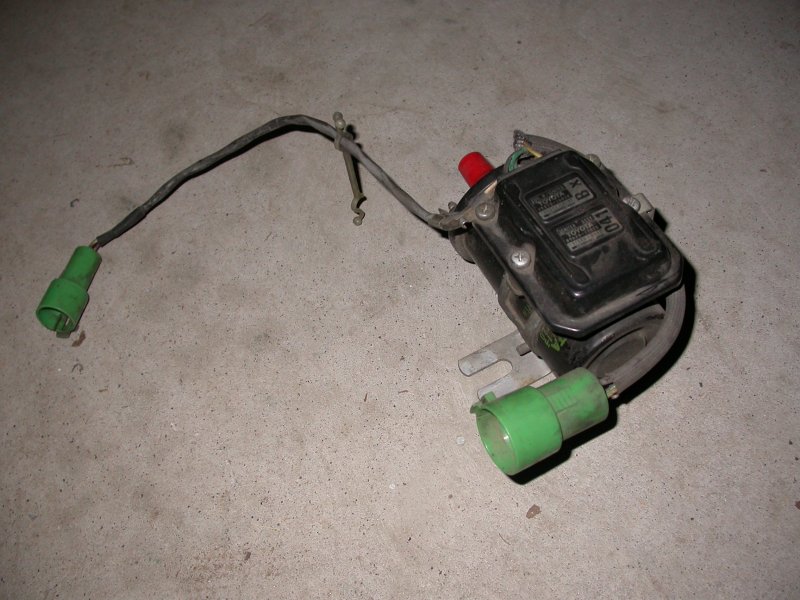

Medicine_Man Posted March 20, 2005 Report Share Posted March 20, 2005 No idea if this will help, but my Coil/Ignitor has 2 green plugs.. Quote Link to comment Share on other sites More sharing options...
l1ttle_d3vil Posted March 21, 2005 Author Report Share Posted March 21, 2005 found out tonight that the yellow plug i had connected to the coil/ignitor IS for air/con or something - definatly not the coil/ignitor anyway. i stripped another loom off a different model (newer i think) 4age back and found the right 4-pin green plug that i need. i don't know exactly what my engine is out of, and i don't know exactly what my loom is off (not much chance of finding out either unless you can tell from looking at the actual loom). all i know is its a bluetop engine, with what i think is a rwd loom, its gone into a ke35 and i don't have any spark from the coil when i plug the air-con plug in :D Medicine_Man, yes that helps. can you upload a different angle of your coil/ignitor? do you know what is the 2-pin green plug is for exactly? looks in that photo as if its just a terminal screwed onto the top of the ignitor or something? and the plug for the dizzy is one of the yellow ones on the right of the pic - thats all sweet. Quote Link to comment Share on other sites More sharing options...
l1ttle_d3vil Posted March 21, 2005 Author Report Share Posted March 21, 2005 (edited) can anyone tell me what the yellow plug in the bottom of this pic is for/where it goes to? ive been told it might go to a fusebox or relay box or something - does anyone know for sure? i traced one of the wires from the ignitor to this plug, the other two plugs to the ECU, and the 4th plug goes to some sort of plug which has a fuse plugged into the end. is the wire that goes to the plug in this pic just for a power wire or something more complicated? i can't see anywhere that this plug goes in to so just wondering if i can wire it somewhere else - depending on what it is. Edited March 21, 2005 by l1ttle_d3vil Quote Link to comment Share on other sites More sharing options...
ira11y Posted March 22, 2005 Report Share Posted March 22, 2005 ok first off the ignitor medicineman is showing you have does not appear to be from a 4AGE so theres your first problem. The plug below is not used for the ecu, it looks like a stereo plug, the plug you are missing from the ecu in that shot is for the fuel pump relay which has a yellow plug. in fact the whole loom appears to be wrong, the orange plug is definately ODD they should ALL be yellow plugs like the RHS plug on the ECU. If i get motivated ill take a shot of a full loom and a coil and igniter sometime in the near future. Quote Link to comment Share on other sites More sharing options...
Medicine_Man Posted March 22, 2005 Report Share Posted March 22, 2005 ok first off the ignitor medicineman is showing you have does not appear to be from a 4AGE so theres your first problem. Its a Factory AW11 MR2 item (Redtop 4AGE) Quote Link to comment Share on other sites More sharing options...
l1ttle_d3vil Posted March 22, 2005 Author Report Share Posted March 22, 2005 ok first off the ignitor medicineman is showing you have does not appear to be from a 4AGE so theres your first problem. Its a Factory AW11 MR2 item (Redtop 4AGE) mines bluetop - thats why it'll be different. Quote Link to comment Share on other sites More sharing options...
Medicine_Man Posted March 22, 2005 Report Share Posted March 22, 2005 Surely there can't be that much difference in the Bluetop/Redtop coil/ignitor setup?, they are practically the same engine, same ignition principles... Quote Link to comment Share on other sites More sharing options...
Super Jamie Posted March 22, 2005 Report Share Posted March 22, 2005 haha you'd be surprised. even moreso if you have an MR2 item. if you have the option to use a 4 wire generic bosch ignitor, go for that. it'll cost you though. other options are 2tg or scorpion or rx7 Quote Link to comment Share on other sites More sharing options...
ira11y Posted March 23, 2005 Report Share Posted March 23, 2005 (edited) Here you go, doesent get much easier than this Edited March 23, 2005 by ira11y Quote Link to comment Share on other sites More sharing options...
