September 29, 200917 yr comment_377657 hey guys, i was cleaning up the centre console and installed a set of green LEDs instead of the stock light bulb. made sure they where the correct amp-idge (10) and the worked when testing. i then was removing the wiring for the bulb and some how got the LEDs and bulb on at the same time (bridged with screwdriver i think) anyway i heard a "pop" from the direction of the battery. i have replaced all fuses in the kick pannel because they just looked old and crappy and one was burnt but not blown. i also replaced all the fuses in the battery fuse box but still the dash lights wont come on. can any one tell me why they wont work (LEDs now removed) or better yet what fuse is for the dashlights? i can't work out what one it is :P Report
September 29, 200917 yr Author comment_377719 GAUGE fuse - 7.5A hmmm that would make sense... apart form the fact i can't find it... its a ke70 if that makes any difference... all the fuses in both boxes are 10, 15 or 20amp so maybe that's the problem... i just can't find the dash/gauge/cluster fuse :P Report
September 29, 200917 yr Author comment_377742 I would guess bottom right of the dash.. i got 6 fuses there, all have been replaced, 2 20s and 4 10s. all have been replaced and still not working i think I'm missing something Edited September 29, 200917 yr by Reaper_Mobb Report
September 29, 200917 yr comment_377744 There is also a variable resistor down there that adjusts the brightness of the dash lights.. Report
September 30, 200917 yr Author comment_377975 There is also a variable resistor down there that adjusts the brightness of the dash lights.. still not working :P makes driving at night/early morning soooo hard.... any other suggestions Report

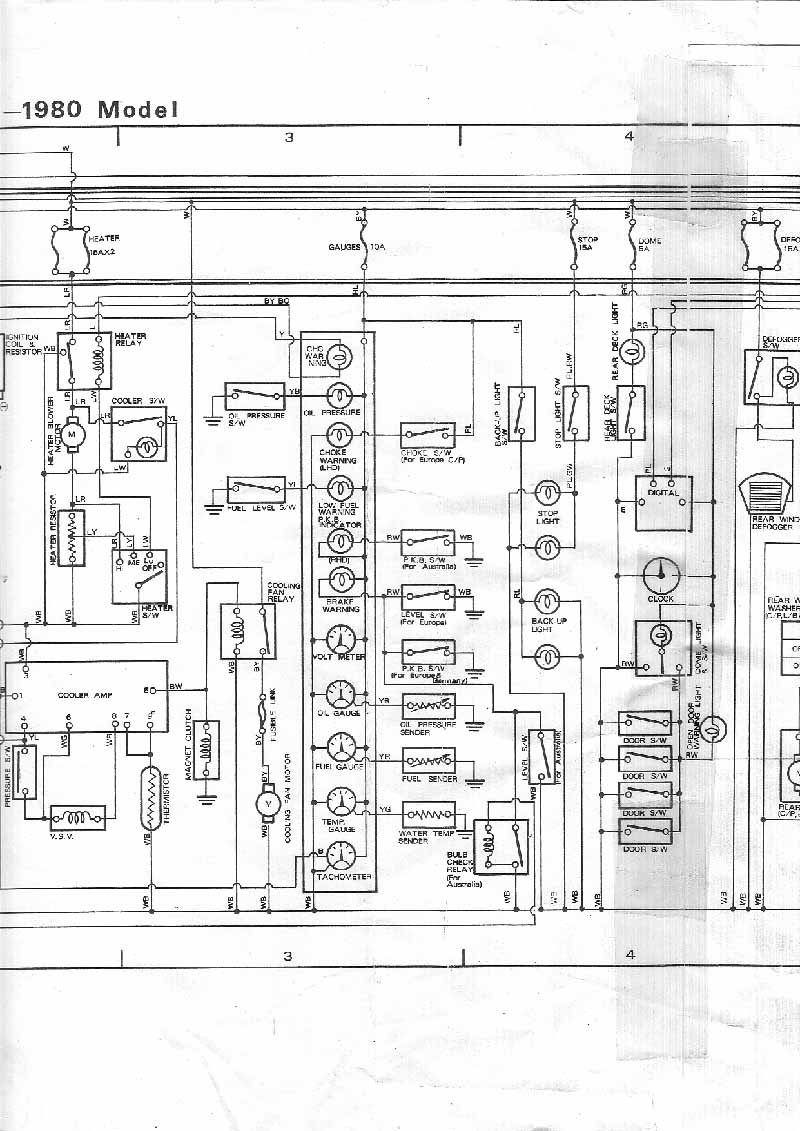

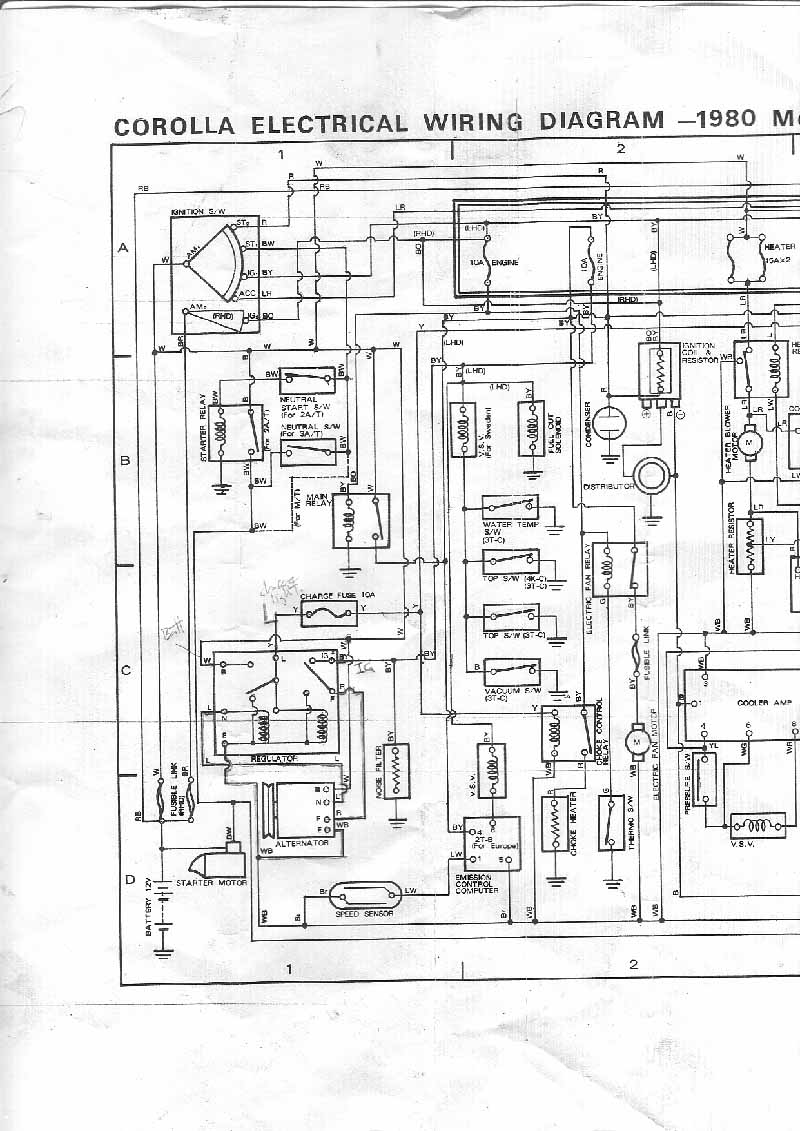

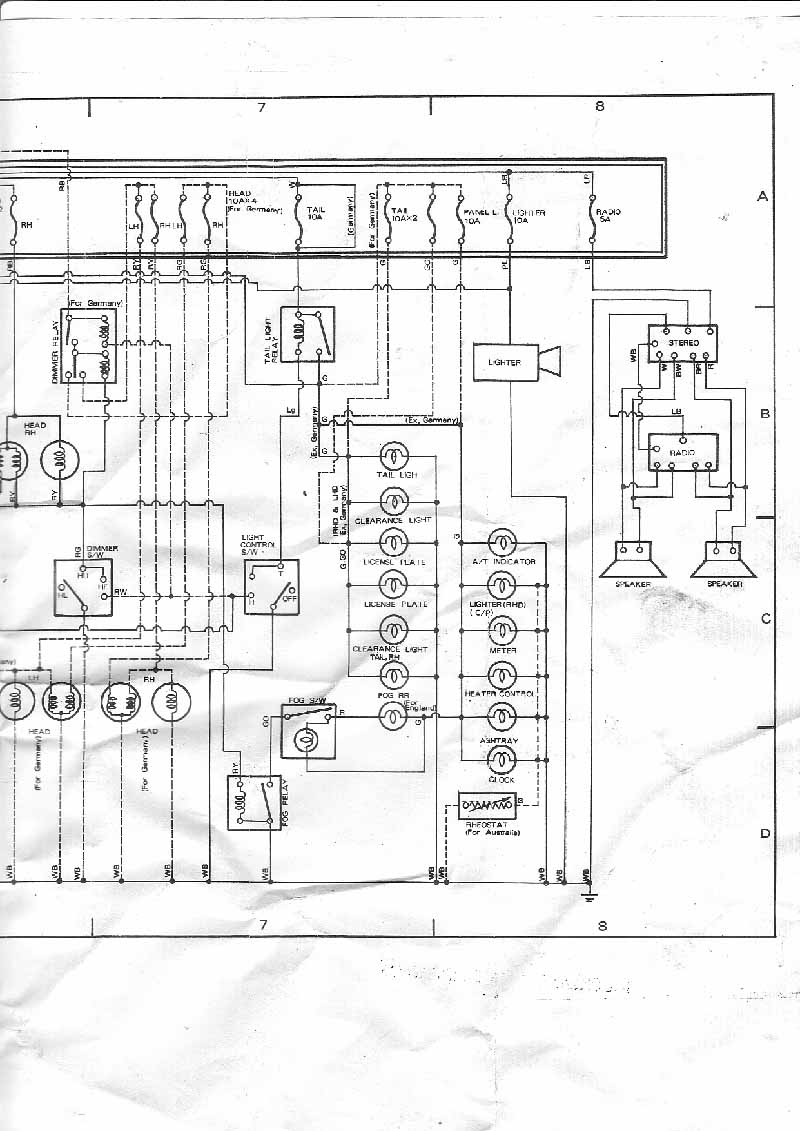

October 22, 200916 yr comment_384481 Can't remember where I downloaded this from, either the Toymods forum or even this forum itself. Here's the entire KE70 wiring. A bit blurry though, due to the age of the hard copy, I believe. It's a universal diagram. If you're right-hand drive, there's another batch of fuses at the bottom panel, just to your right underneath the dashboard and in front of your door. I remember hearing from one wireman that this batch is prone to shorts if water leaks in. Report
April 20, 201016 yr comment_431230 there is a few fuses behind the driverside kick panel aswell Report
