O2 Help / A/f Mixtures!

[Evan G]

ok my jay car kit is assembled but problems with the wiring!



I'm using a 4 pin o2 sensor



white - (continuity between both white wires = heating element)

white - ^^

grey - earth (continuity between grey and o2 housing)

black - signal



for the jay car gauge theres 12v, IN (signal) and earth



if i earth out the signal for the gauge, gauge shows 7. if connected to the o2 sensor. it shows 22



um help please?



edit - i connect the signal wire to the gauge and sprayed the o2 sensor with brake cleaner, value didnt change





-------------------------





orite Ive got 4 o2 sensors (3 wide band and a narrow)



threw the narrow in, went for a drive.



showes...

10:1 under full load

drops down to 9.1 when the gas pushed to the floor (accelerator pump)

released the gas at 100kph, dropped down to 8.5 then crept up to 9.5



* i have a miss at idle when i push the brake pedal, so pumping the pedal at idle = 8.1:1 *



with the choke on at idle 10?



i tried another sensor and got the same results



NO wonder i chew through fuel!

Edited September 6, 2010 by Evan G

[Trev]

ok my jay car kit is assembled but problems with the wiring!



I'm using a 4 pin o2 sensor



white - (continuity between both white wires = heating element)

white - ^^

grey - earth (continuity between grey and o2 housing)

black - signal



for the jay car gauge theres 12v, IN (signal) and earth



if i earth out the signal for the gauge, gauge shows 7. if connected to the o2 sensor. it shows 22



um help please?



edit - i connect the signal wire to the gauge and sprayed the o2 sensor with brake cleaner, value didnt change



22 is normally the default for ambient air, so it never changes when the car is running?

[Evan G]

22 is normally the default for ambient air, so it never changes when the car is running?





i havent put it in the car yet.. just want to test it



but even with a good does of brake cleaner it should change?

[Trev]

i havent put it in the car yet.. just want to test it



but even with a good does of brake cleaner it should change?



Well it sounds fine, the o2 on the dyno used to read 20 odd when not in use.



Have you sprayed it when hot?

Edited August 28, 2010 by Trev

[Evan G]

yep when hot.



ill install the o2 sensor and go for a drive

[Trev]

yep when hot.



ill install the o2 sensor and go for a drive



What type of sensor do you have?



lambda meters will shit themselves if you put fluid on them when hot, better off using gas like butane.

Edited August 28, 2010 by Trev

[Evan G]

What type of sensor do you have?



lambda meters will shit themselves if you put fluid on them when hot, better off using gas like butane.



i borrowed it from work. i think its a lamba meter not a o2 sensor?



went for a drive showing 10.5 and not moving



i reckon it might be the sensor

[Evan G]

wheres mr alltezzaclub when you need him :P

[Trev]

went for a drive showing 10.5 and not moving



i reckon it might be the sensor



lambda meters will shit themselves if you put fluid on them when hot, better off using gas like butane.



So you don't think my experience with them is good enough?



ok.

[altezzaclub]

Sorry Evan- digging the garden...



Hang on-

[altezzaclub]

I'm using a 4 pin o2 sensor



white - (continuity between both white wires = heating element)

white - ^^

grey - earth (continuity between grey and o2 housing)

black - signal



for the jay car gauge theres 12v, IN (signal) and earth



if i earth out the signal for the gauge, gauge shows 7. if connected to the o2 sensor. it shows 22

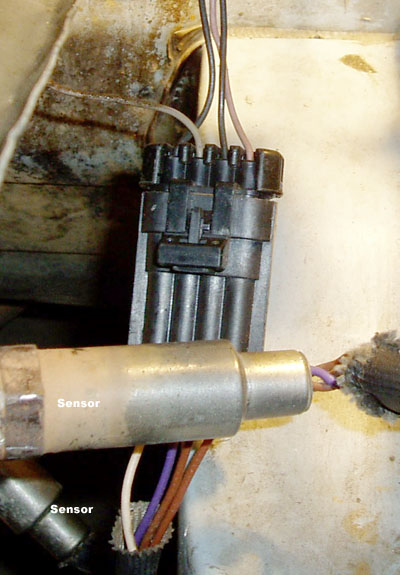

OK, mine are VT Commonwhore ones- I grabbed the plugs and a foot of wire off the loomb as well. The wires change colour going through the plugs so you can tell left-hand bank from RH. These are the colours from one side



White becomes black- earth for sensor



Brown becomes black- earth for heater



Brown becomes brown/pink- 12V in



Purple becomes gray- signal to Jaycar unit.



I earthed the blacks in separate spots to stop interference.



The unit takes a couple of minutes driving before it activates, it just shows 'rich' before then, then suddenly figures appear.



If I turn it on without the motor running it shows "r" and all the bars go rich.

Edited August 29, 2010 by altezzaclub

[altezzaclub]

..and having been for a drive, if I turn the motor off the unit continues to read figures- lean ones like 17 or 18.



I don't know why it starts off reading rich when driving off in the morning, I suppose its because the choke it out.. :P



but it stays rich for a minute with the choke pushed back in until the motor wams up some more.

[Evan G]

orite Ive got 4 o2 sensors (3 wide band and a narrow)



threw the narrow in, went for a drive.



showes...

10:1 under full load

drops down to 9.1 when the gas pushed to the floor (accelerator pump)

released the gas at 100kph, dropped down to 8.5 then crept up to 9.5



* i have a miss at idle when i push the brake pedal, so pumping the pedal at idle = 8.1:1 :jamie:*



with the choke on at idle 10?



i tried another sensor and got the same results



NO wonder i chew through fuel!

[altezzaclub]

haha!! Its very interesting isn't it! I reckon most guys on here could up their performance and/or fuel consumption with one!



So- Compared to my SUs...



What does it show at idle? (14.7 flashing into lean)



What does it show at a constant 60kph? (14.7 jumping up and down about 13.5 to 15.5)



What does it show if you left off a fraction? (momentarily rich then leans to 16)



What does it show when you lift right off and are on over-run? (leans dow to 18 or 'L')



What does it show if you ease the throttle on? (goes from 16 to 14.0)

[Evan G]

haha!! Its very interesting isn't it! I reckon most guys on here could up their performance and/or fuel consumption with one!



So- Compared to my SUs...



What does it show at idle? (14.7 flashing into lean) 9.5



What does it show at a constant 60kph? (14.7 jumping up and down about 13.5 to 15.5) 10.1



What does it show if you left off a fraction? (momentarily rich then leans to 16) 9.8



What does it show when you lift right off and are on over-run? (leans dow to 18 or 'L') 8.5



What does it show if you ease the throttle on? (goes from 16 to 14.0) 10.1



bang on the throttle = goes down to 8.5 then back up to 10.5



something aint right?
