The First 'Big' Thing I Built


carbonboy

Recommended Posts

Well, I've been thinking about doing a build thread for my boat. I completed a 9 week (full time) Boat Building Pre-Apprenticeship back in 2007 as a way of trying to further a career as something more than just a labourer. This didnt quite go the way I wanted but I like to think I've still picked up a few handy skills & timber can be a real pleasure to work with sometimes. This boat was the end result of the Pre-App, my employer at the time was good enough to give me the time off to attend trade school & scheduled work I could do in the evenings after school to keep some form of income coming. I was full time casual, so no work equaled no pay!



The process started with doing FULL-SIZE drawings, its only a total of 2.83 metres long so not that great a task. From these, our basic 'skeleton' frames were constructed, gusseted & were able to be positioned accurately with the help of a temporary work station. The frame in the foreground isnt gusseted as the transom sheet does this for us. :wink:



post-5437-078007800 1303436806_thumb.jpg



The keel was then cut/hand-planed to shape. The bowsprit its attached to was constructed of strips of 6mm thick pine which were steamed then bent around a pre-constructed mould (basically blocks of wood nailed to a board following our scribed line), glued with epoxy & clamped.



post-5437-041714900 1303437016_thumb.jpg



post-5437-017139600 1303437274_thumb.jpg



Framework begins.



post-5437-081410800 1303437347_thumb.jpg



Chine (the point where the side of the boat meets the bottom) & gunwhale (top of the sides of the boat, in this case the lower one :wink: ) strips go on.



post-5437-027444900 1303437437_thumb.jpg



post-5437-093758400 1303437531_thumb.jpg



Everything glued, stainless steel screws in & clamps off!



post-5437-037665300 1303437603_thumb.jpg



post-5437-008569000 1303437694_thumb.jpg



Dammit! Due to the rather sharp curve from the first frame (or station) to the bow, these chine strips were prone to cracking, even after being steamed for 6 hours. Pretty much everyone in the class had at least one let go, so repairs experience was nice to have!



post-5437-049177100 1303437864_thumb.jpg



You'd never know it happened! The sheets of plywood in the background started out as 4 pieces, which had to be scarfed & glued to make a larger sheet. The better the join, the better the end result. A few peoples joins failed immediately, mine wasnt entirely dead straight but held up nice & strong. These sheets had our panel shapes traced out onto them from our full size drawings then cut out oversized so they could be fitted nicely then trimmed to suit.



post-5437-046155700 1303437904_thumb.jpg



Reinforcments were added, I think these were referred to as 'knees'. With the various angles, they were also a pain to make & get a really good fit. I think I remade mine twice.



post-5437-035548200 1303438029_thumb.jpg

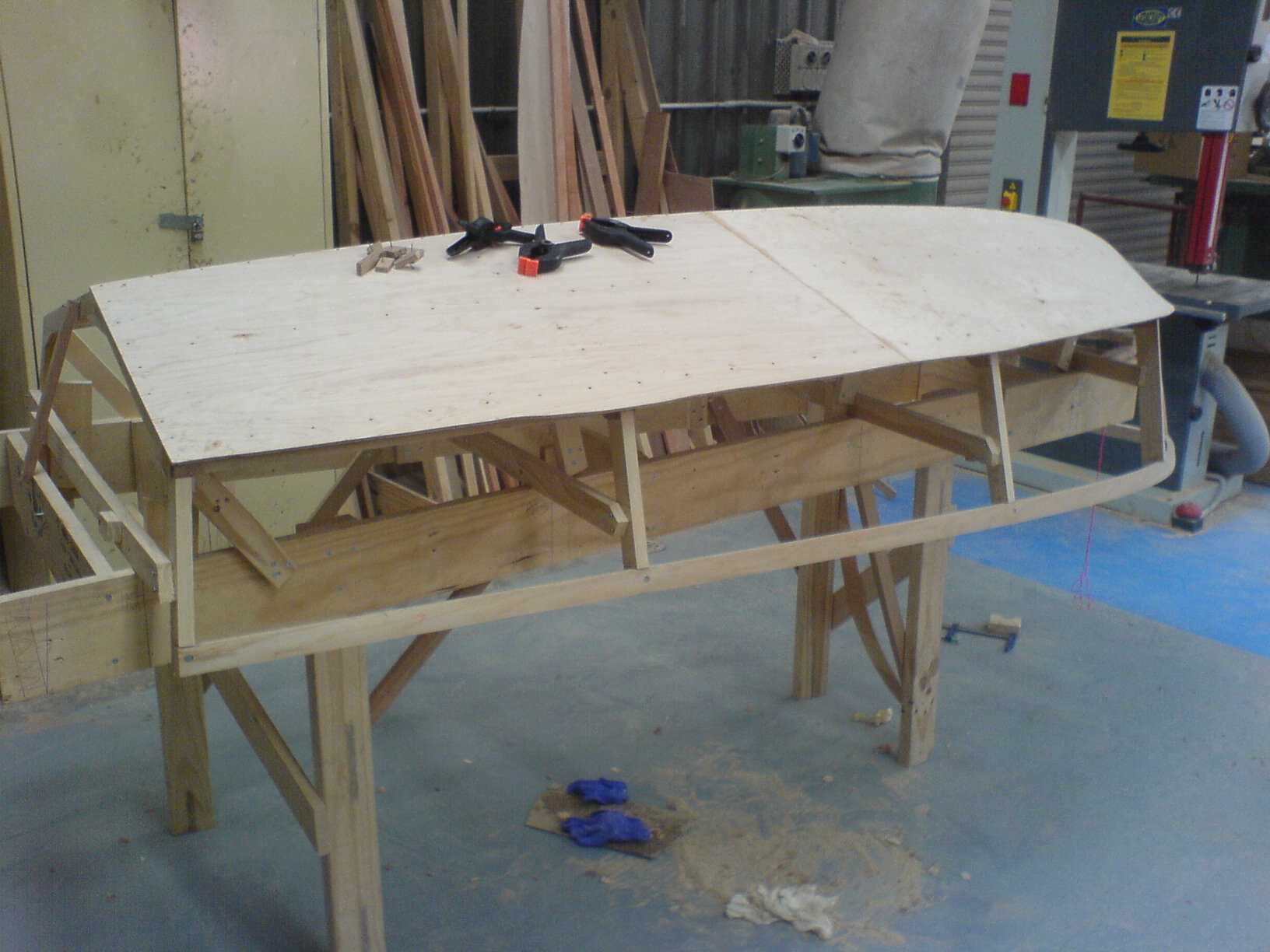

First plywood sheets on.



post-5437-036579100 1303438412_thumb.jpg

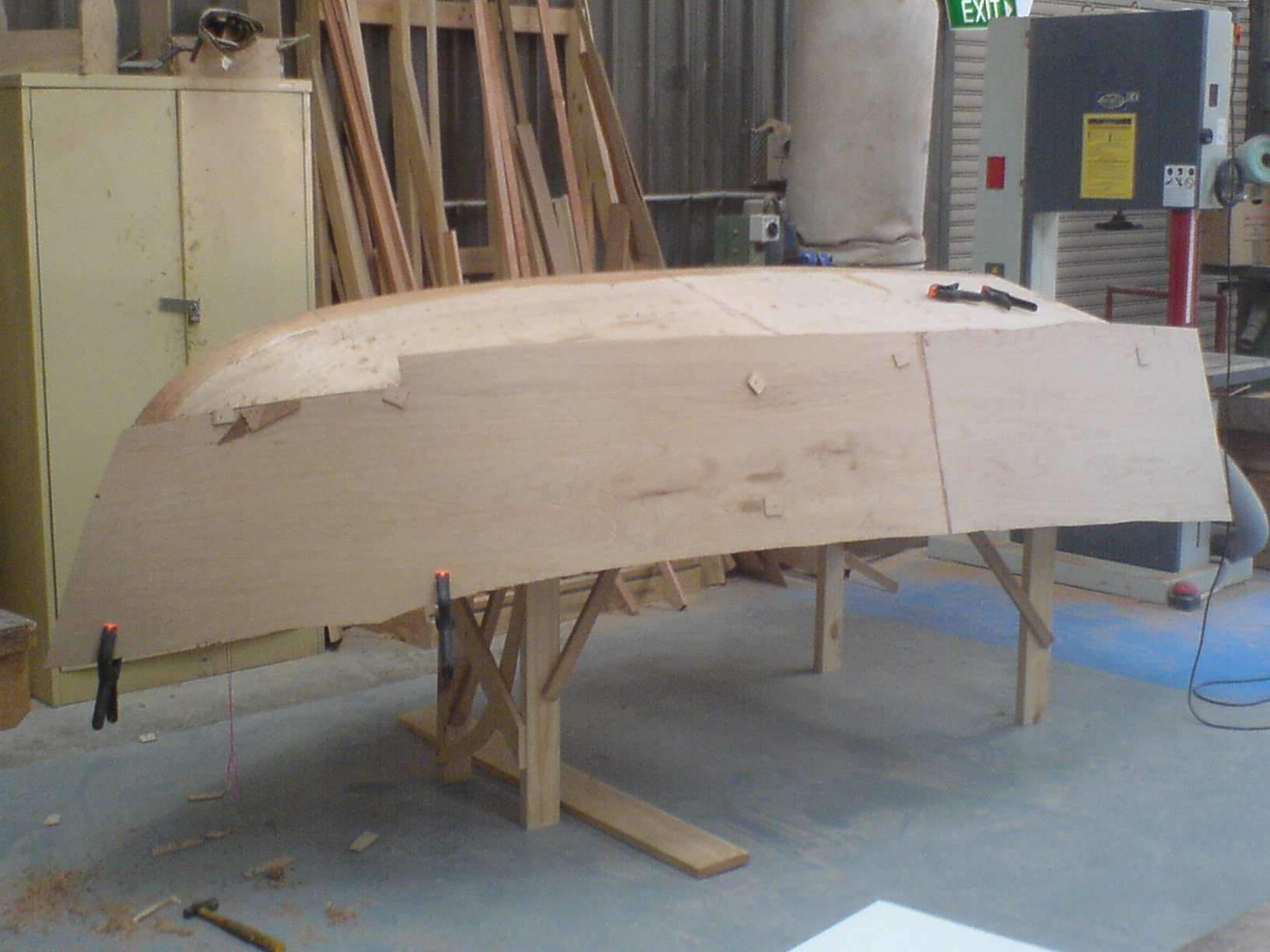

Then the rest.



post-5437-044773900 1303438478_thumb.jpg



Still needs trimming to suit but a nice fit so far.



post-5437-098045000 1303438530_thumb.jpg



Some cut their ply sheets exactly to size...seemed like a good idea but the final fit was horrible. No play to move it around to close up gaps etc, so I spent some time joining ply sheets together :laff:



post-5437-011727400 1303438590_thumb.jpg



A little extra glue to fill some small holes never hurt. :wink: It was also about this time that the glue-in-hair jokes started appearing. I had long hair (about mid-way down my shoulder blades length) at this point & this was 2:1 ratio epoxy, which had a tendancy to leave burn marks on bare skin. One guy got a hand on my tied-up hair, he then had my hand around his throat & me threatening to break his arm if he tried again. The jokes stopped. :yes:



post-5437-017835400 1303438729_thumb.jpg



Making the basics of a frame for it to sit on once inverted.



post-5437-069277500 1303439125_thumb.jpg



Go Thomas!



post-5437-075299500 1303439206_thumb.jpg



Lots of hand-planing later...



post-5437-042358300 1303439274_thumb.jpg



An inside look, notches had been taken out of the floor reinforcements to allow water to drain down to the keel then aft to the transom where twin bungs have been fitted.



post-5437-095362100 1303439343_thumb.jpg

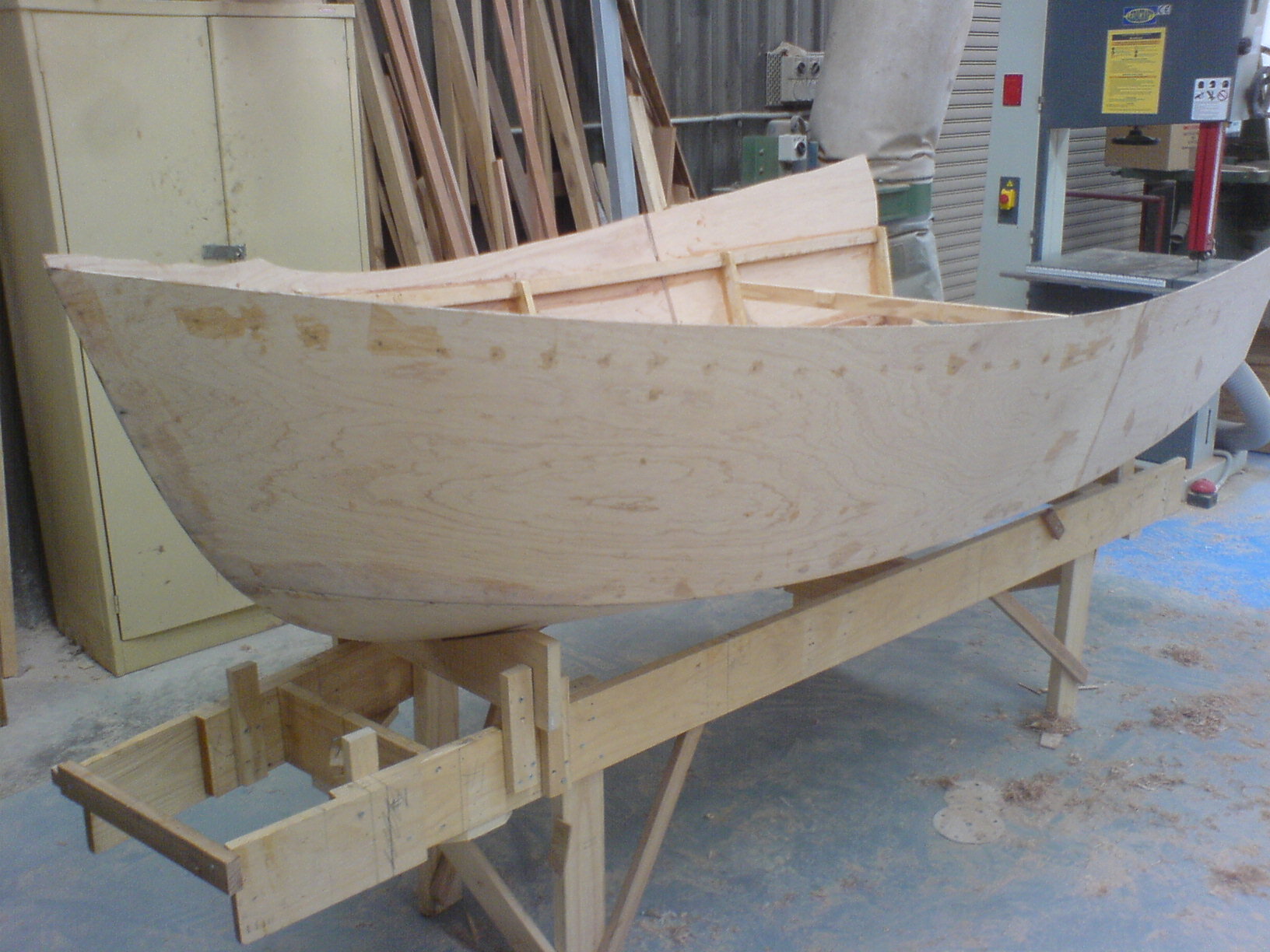

Yay, we're upright!



post-5437-056803100 1303439435_thumb.jpg

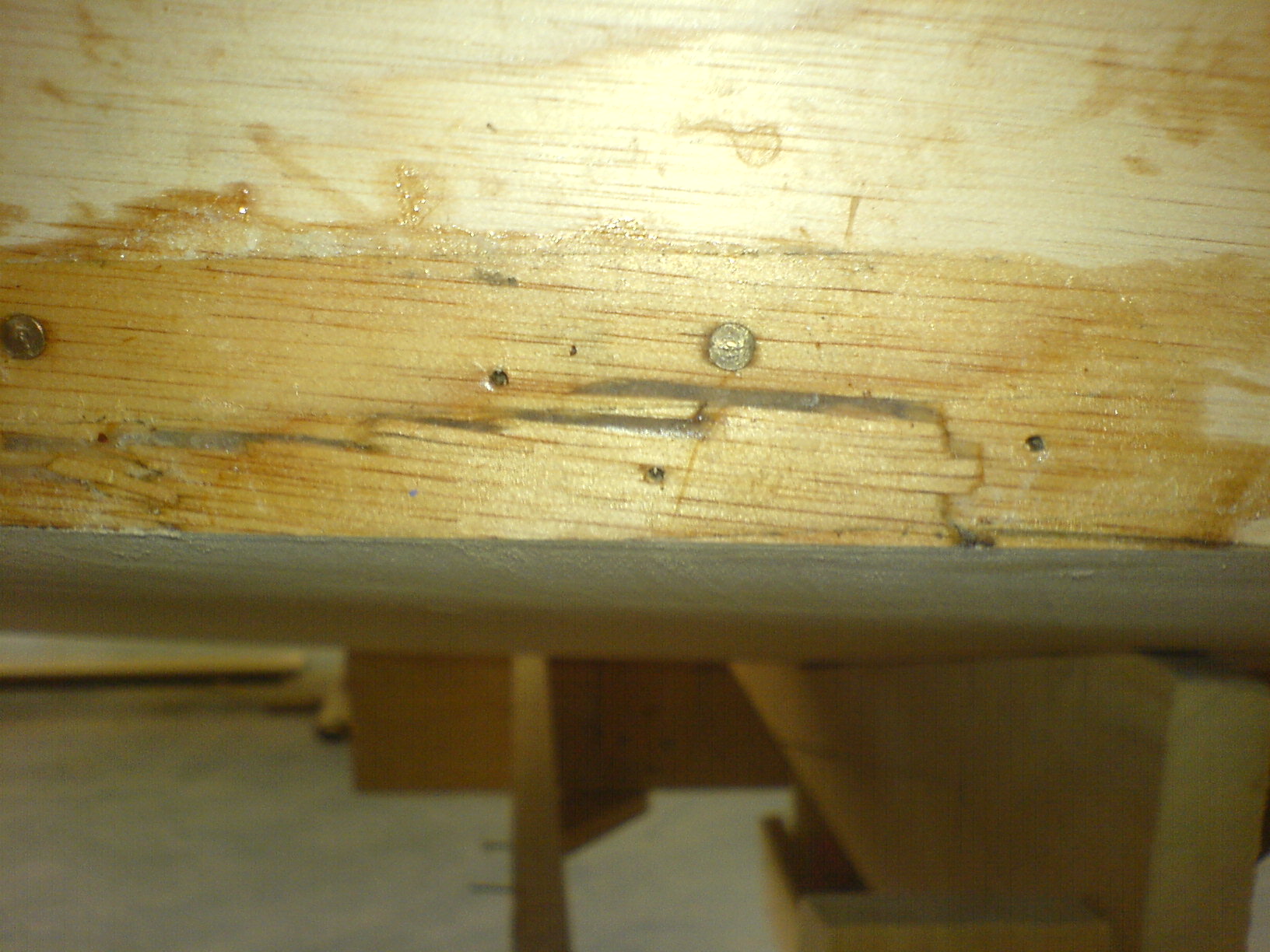

A small piece that had chipped off has now been glued back in place. :wink:



post-5437-012542200 1303439491_thumb.jpg



Transom sheet goes on.



post-5437-001600200 1303439561_thumb.jpg



post-5437-053109100 1303439586_thumb.jpg

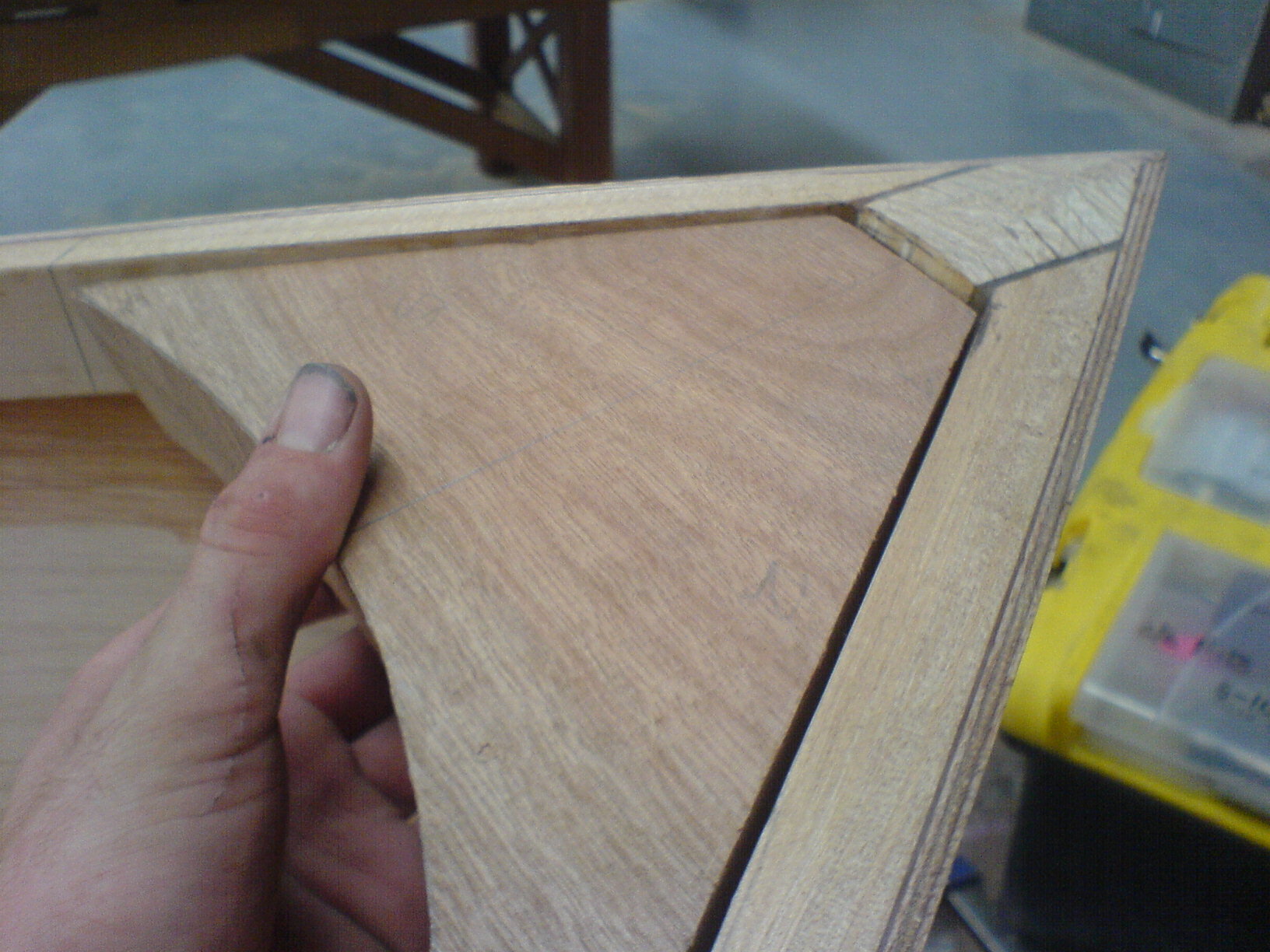

Making the second bow reo, check out the scar on my thumb! That was done on day 3 of the course, where I learned the hard way to NEVER use a chisel (especially a really f**king sharp one) towards any part of your body!! I only nicked myself in comparison to one fellow in my class....14 stitches along his index finger.



post-5437-063406900 1303439668_thumb.jpg

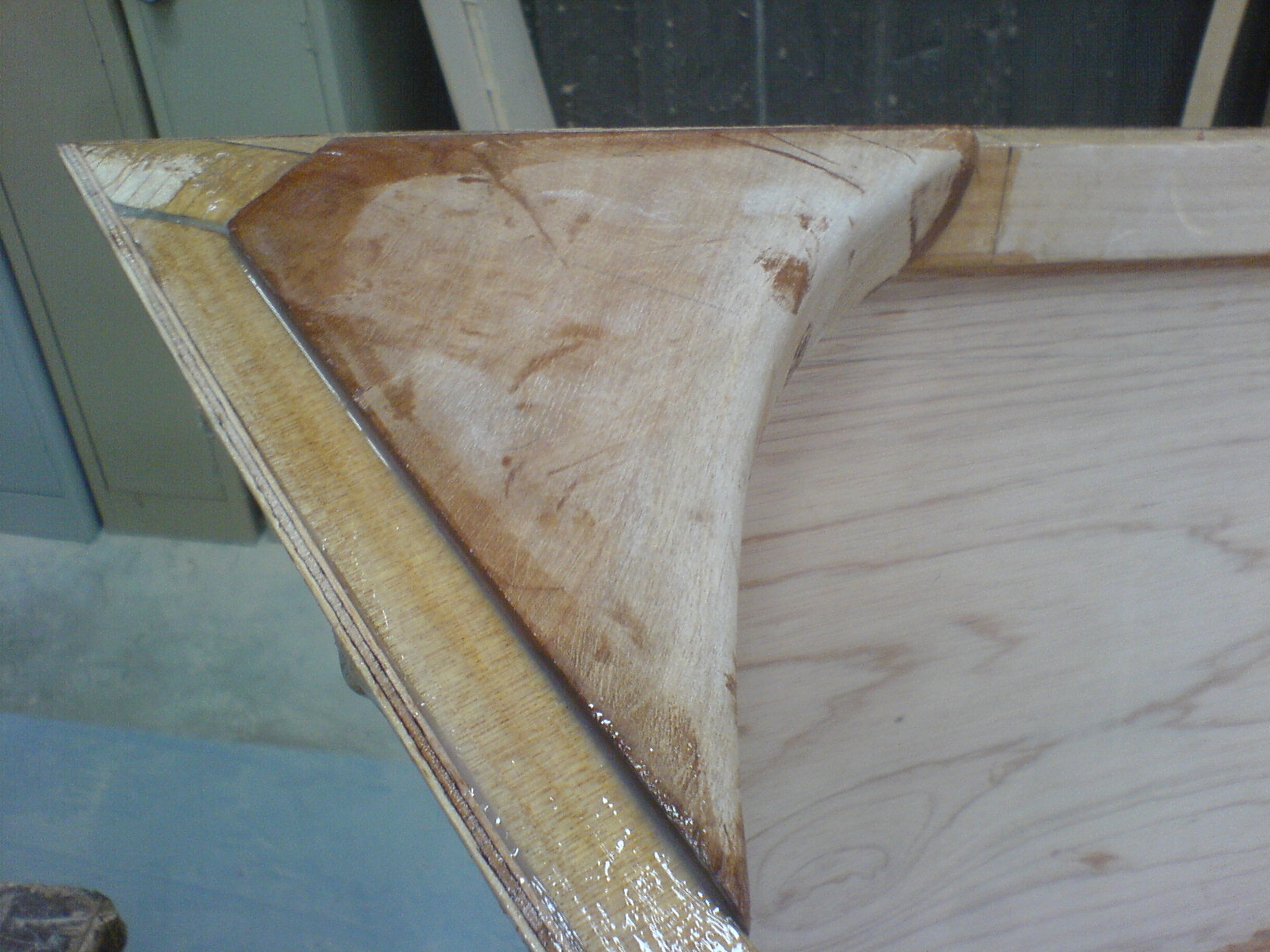

All glued in & ready for a hit with the plane.



post-5437-050035200 1303439996_thumb.jpg



post-5437-081291200 1303440048_thumb.jpg



Additional transom framework goes in, lap-joined, expoxied & silicone-bronze nailed. There was a lot of time with a hammer & punch on this thing!



post-5437-021129900 1303440135_thumb.jpg



More knees.



post-5437-035191000 1303440261_thumb.jpg

Edited by carbonboy
Link to comment
Share on other sites

Members dont see this ad
  • Replies 41
  • Created
  • Last Reply

Top Posters In This Topic

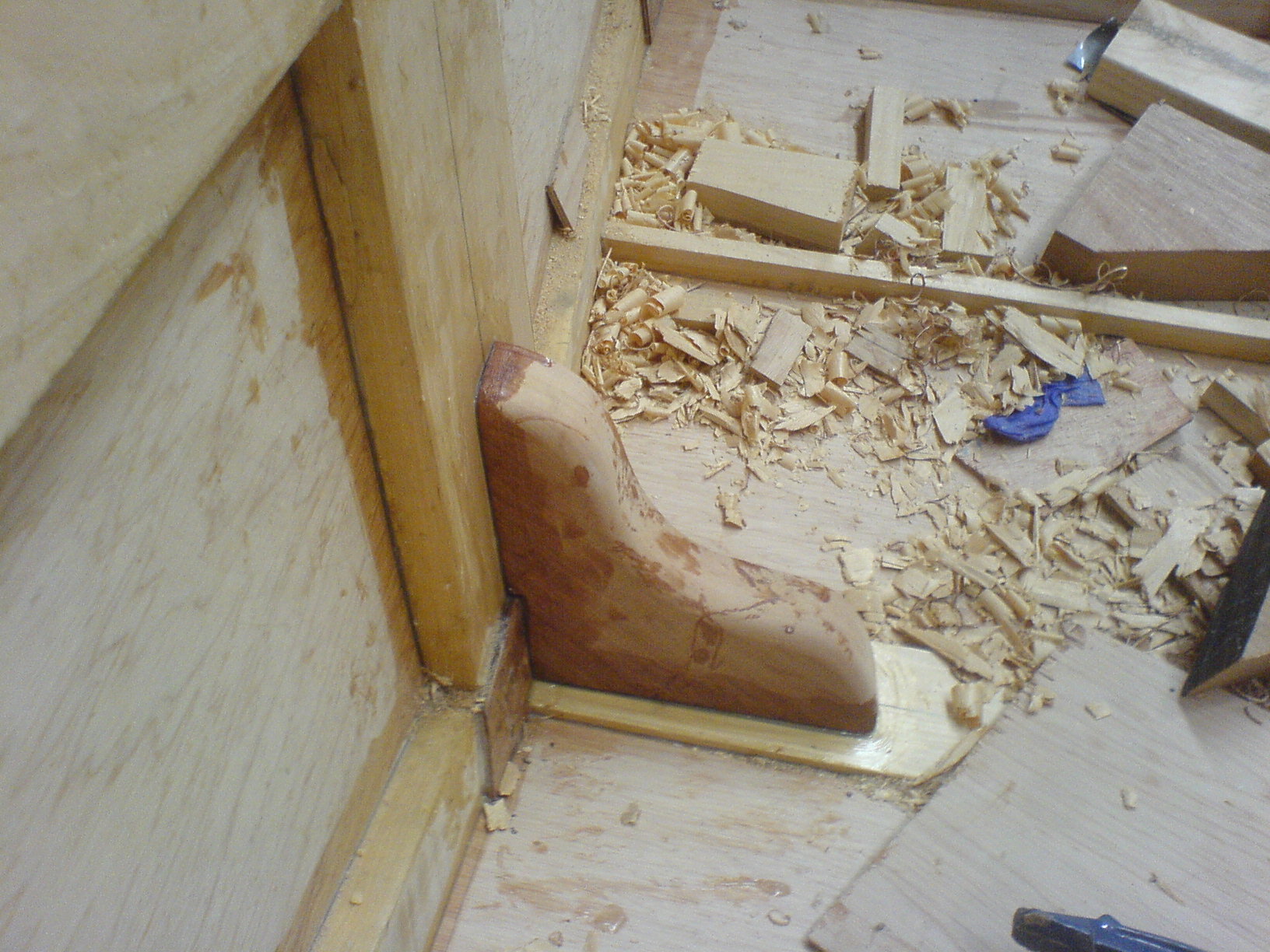

Please note that this dinghy was built entirely by following the intructions set out in the course material. Those who had problems following step by step instructions made slow progress. I still have all of this material plus the full size drawings etc, material cost would be about $300-$400 for the dinghy itself sdo if anyone's interested in constructing one just PM me.



post-5437-011924700 1303440800_thumb.jpg



Its starting to look like a boat in here... Oh yeah, we built the toolbox first, I still have it albeit epoxy sealed & well loved.



post-5437-043132700 1303440833_thumb.jpg



Seats...sorry, THWARTS going in.



post-5437-033601000 1303440995_thumb.jpg



post-5437-047828900 1303441018_thumb.jpg



post-5437-025311100 1303441060_thumb.jpg

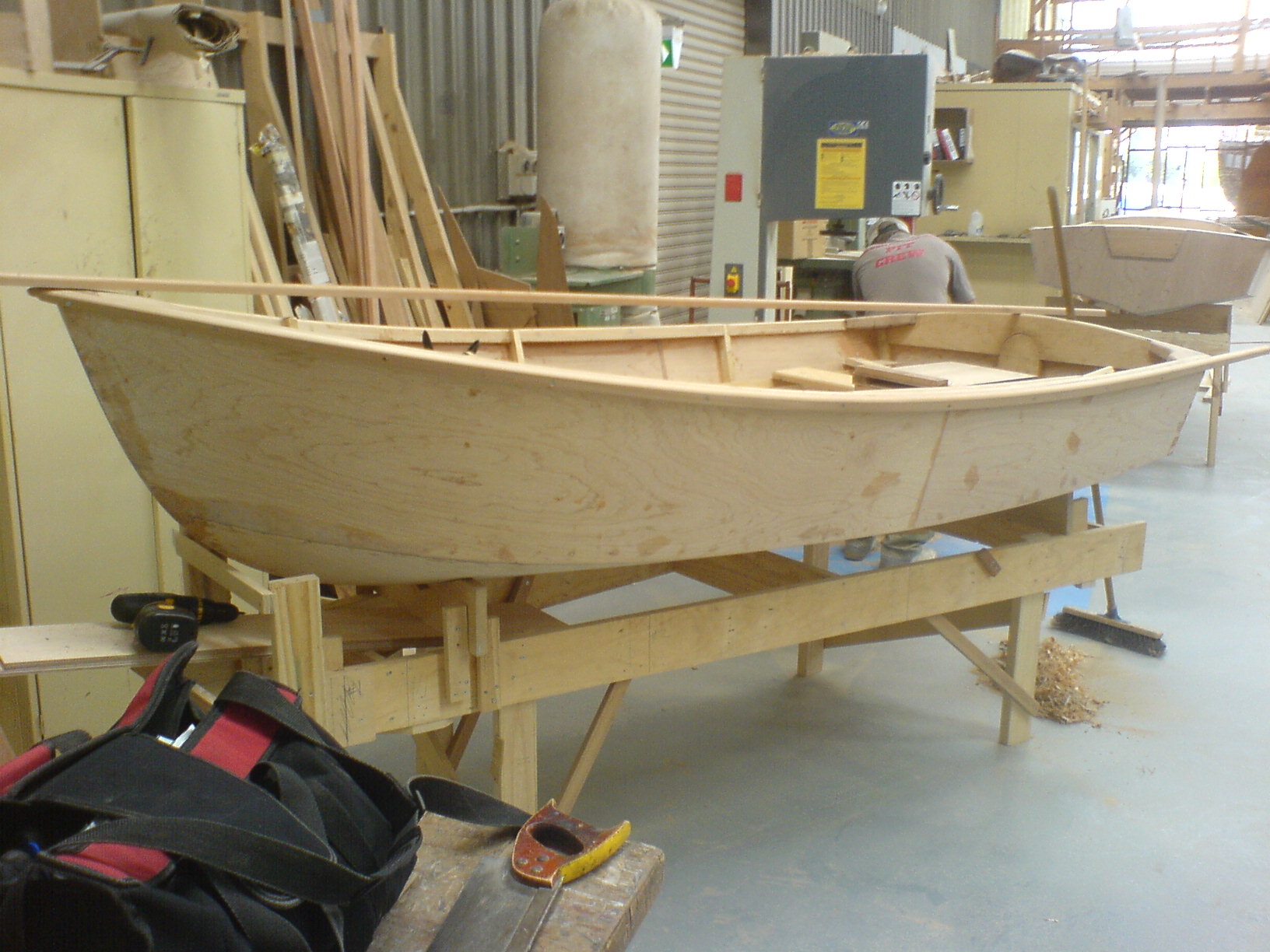

Notice on the boat in the right hand side background there's a backing plate attached to the transom? This is because the dinghy was designed to either be oar-driven or have a small outboard attached.



post-5437-089653300 1303441111_thumb.jpg



I on the other hand, had other motives of propulsion. Hence the quick design & construction of this...Well actually everything else aside from the boat I designed, trying to wrap your head around the physics of sailing can be headache inducing.



post-5437-008086000 1303441193_thumb.jpg



Finally off the stand & the sanding begins.



post-5437-008989400 1303441541_thumb.jpg

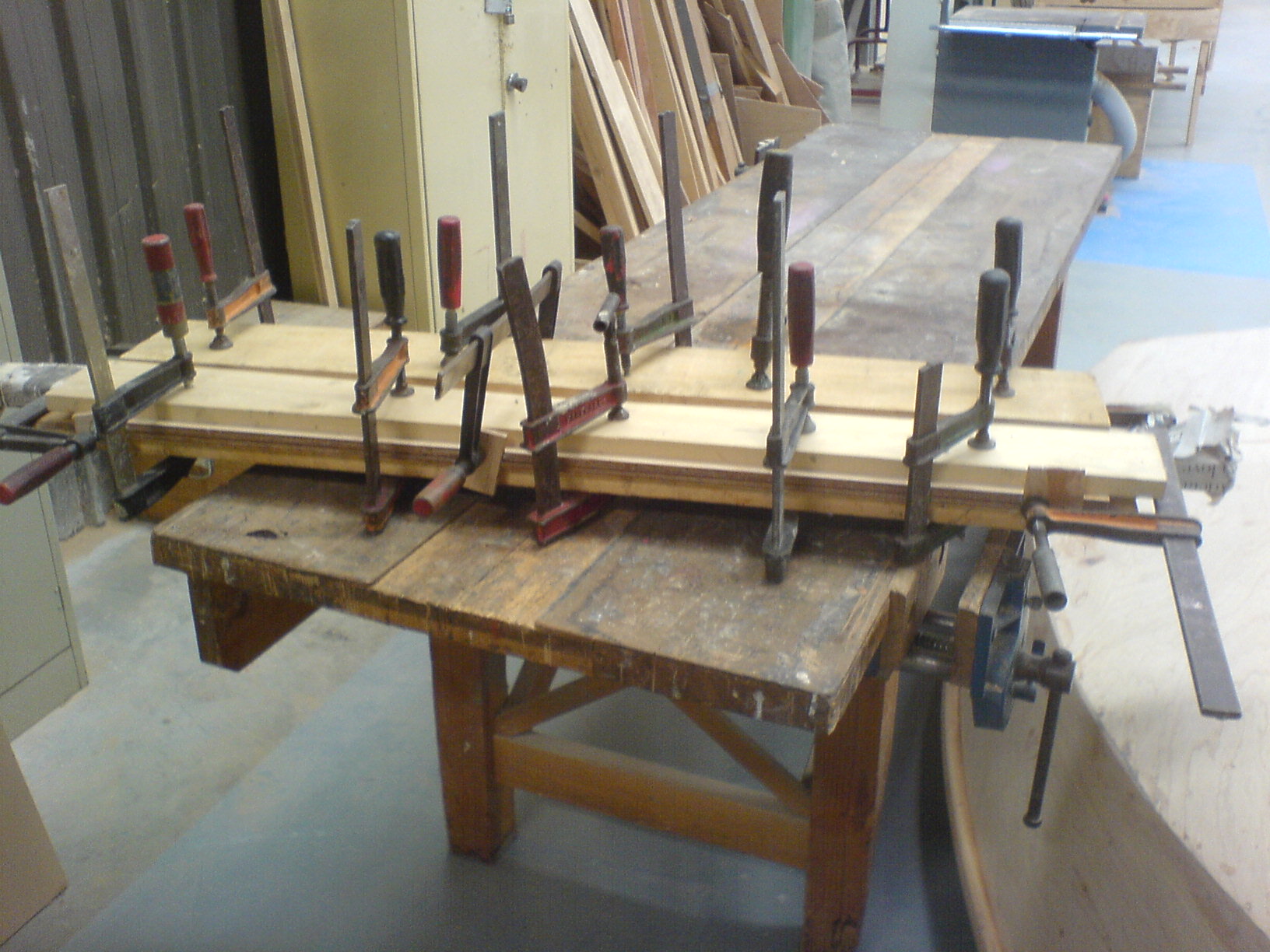

A few leftover pieces of plywood were cut to size, epoxied & clamped to make a little something to go with the case I made earlier.



post-5437-055282000 1303441610_thumb.jpg



She's looking like a boat now, additional gunwhale pieces were attached between the second & third frames to provide a bit of, lets say, extra width for comfort. :wink:



post-5437-095706100 1303441720_thumb.jpg

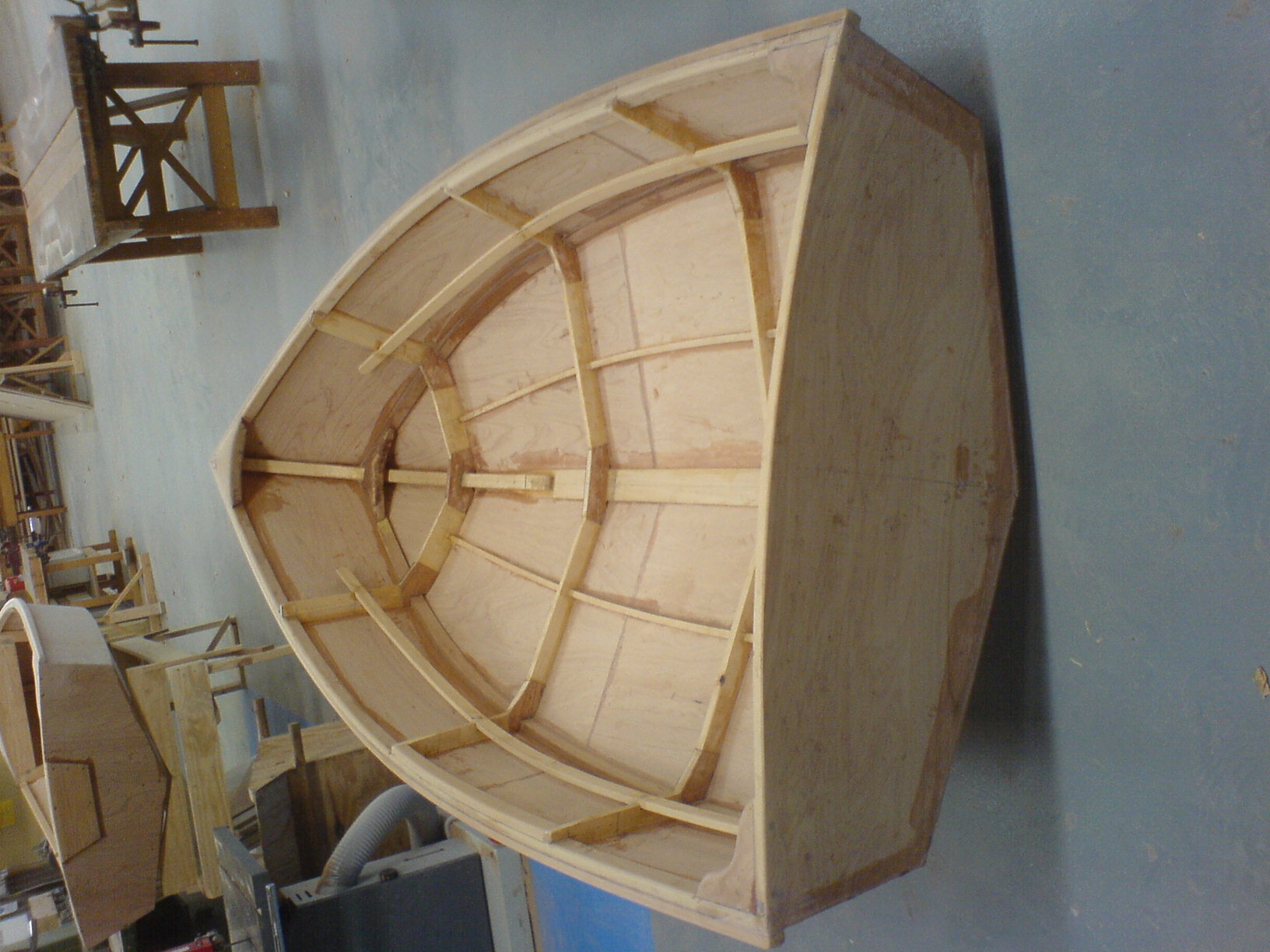

Bum shot.



post-5437-007264700 1303441764_thumb.jpg



Bow shot.



post-5437-078237800 1303441804_thumb.jpg



All completed, strapped onto trailer & being hauled off to my place of employment as my boss was kind enough to let me have some space. It wasnt a car so he was happy.



post-5437-086731900 1303441972_thumb.jpg

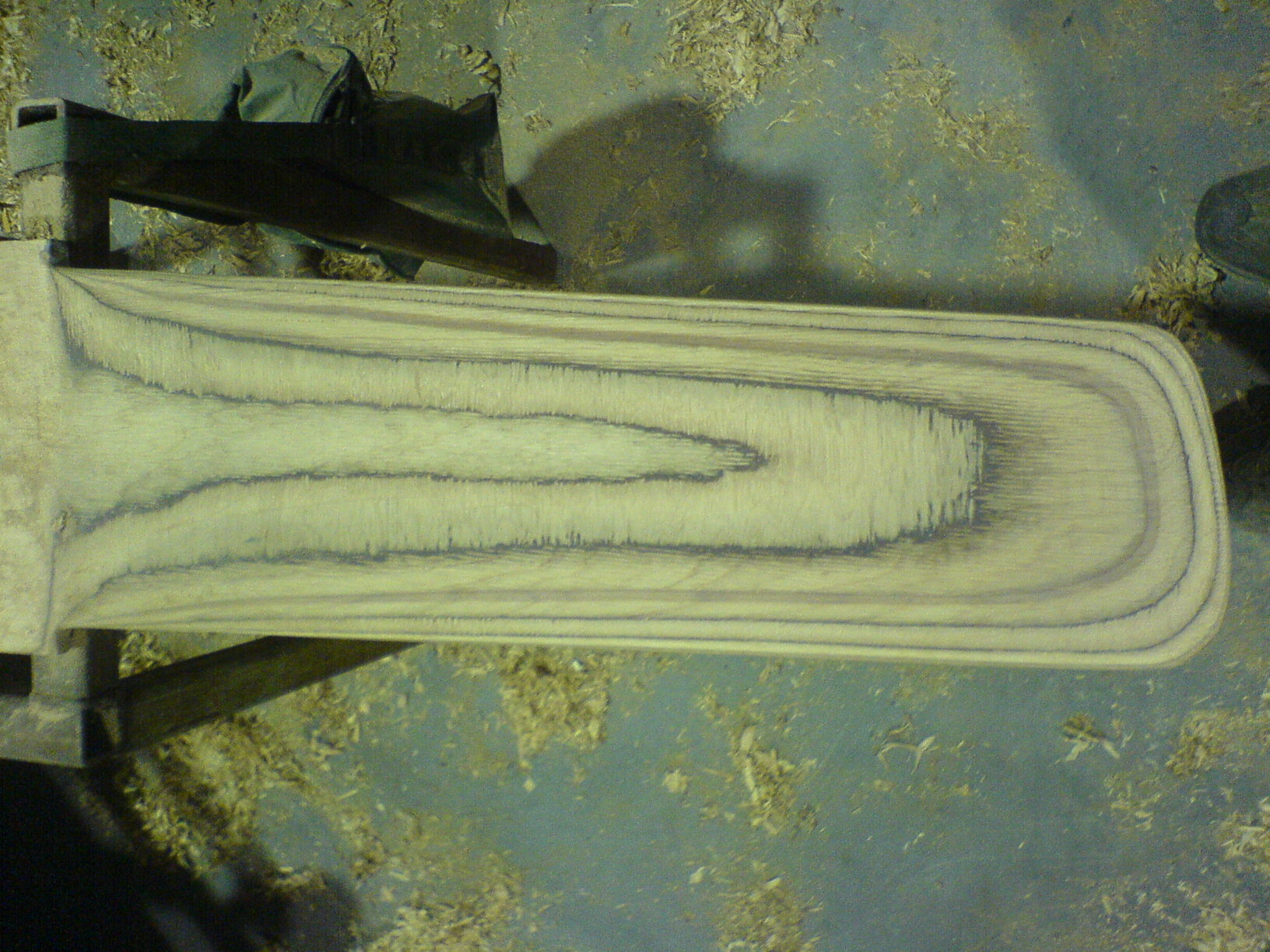

Remember the leftover plywood I had earlier? Well things were starting to take shape.



post-5437-084781300 1303442040_thumb.jpg



post-5437-093975600 1303442063_thumb.jpg



post-5437-083346000 1303442096_thumb.jpg



post-5437-066437800 1303442130_thumb.jpg



post-5437-082189100 1303442165_thumb.jpg

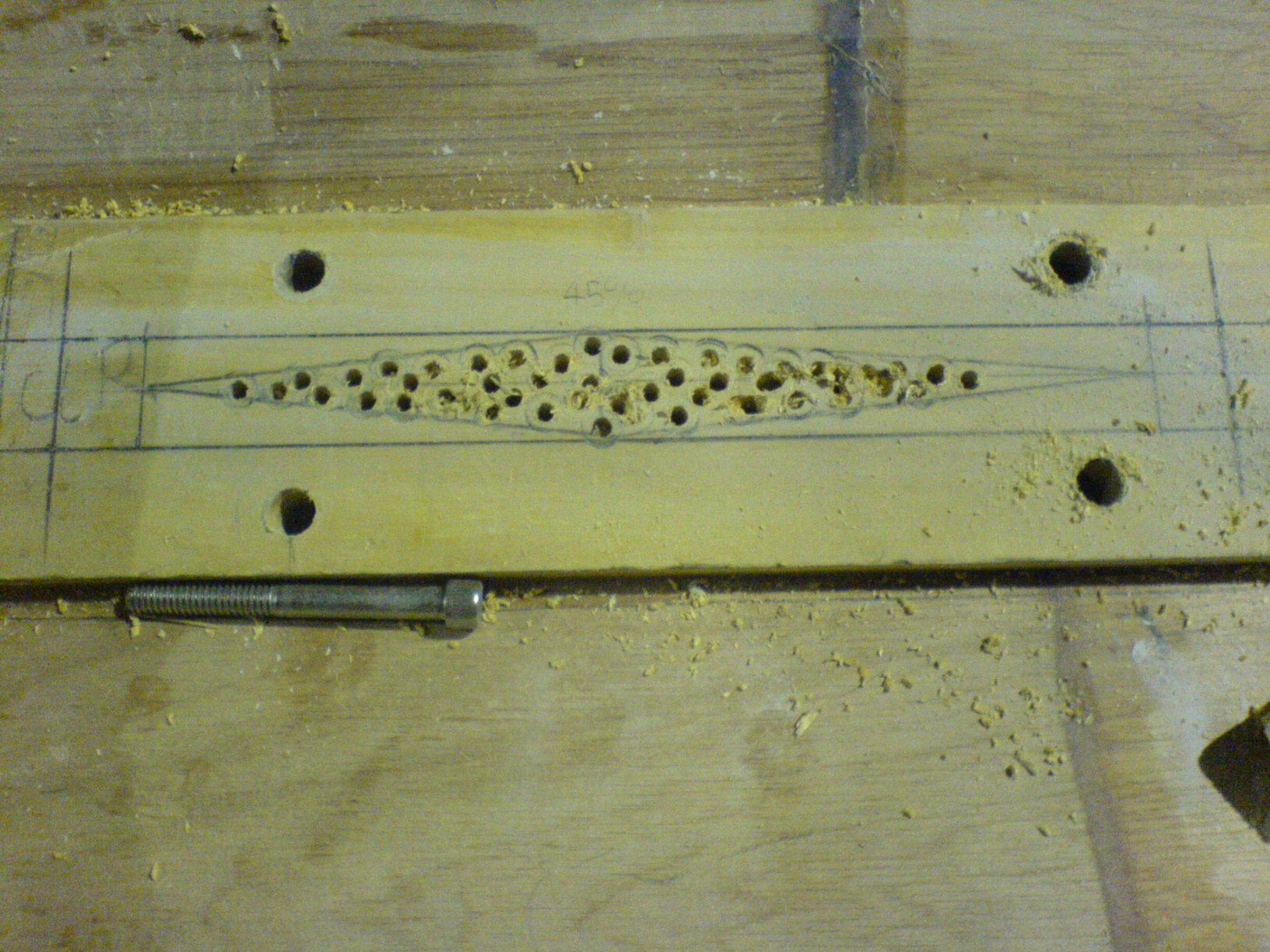

Here was a scary moment, drilling holes in my floor then using a jigsaw to cut to shape. You kinda cross your fingers & hope you worked everything out right when it comes to holes in the bottom of your boat!



post-5437-064281400 1303442276_thumb.jpg



Cassette test fitted.



post-5437-042898100 1303442313_thumb.jpg



Counter-sunk heads on the keel.



post-5437-046115200 1303442369_thumb.jpg



Hey hey, it fits!



post-5437-030024000 1303442403_thumb.jpg



The front thwart goes in for extra bracing.



post-5437-054311200 1303442445_thumb.jpg



Centreboard & base components of rudder casette being well sealed with epoxy (Everdure).



post-5437-069182100 1303442637_thumb.jpg

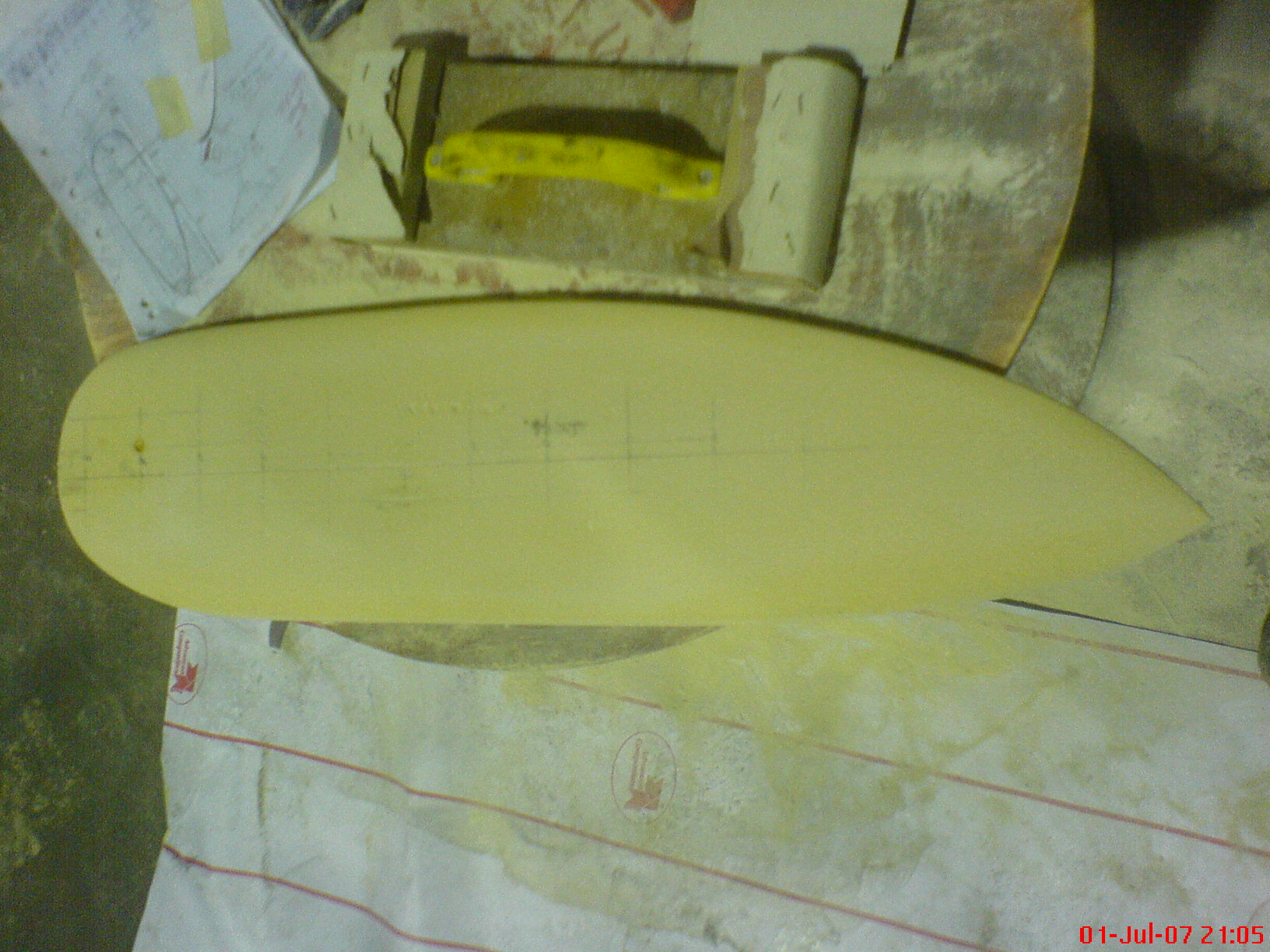

Shaping of the core of my rudder blade from 150kg/m3 high-density foam which had a 300kg/m3 piece inserted where it pivots in the casette (i.e the most crushing force). Exotic but good when you have access to offcuts for nicks!



post-5437-013373600 1303442747_thumb.jpg

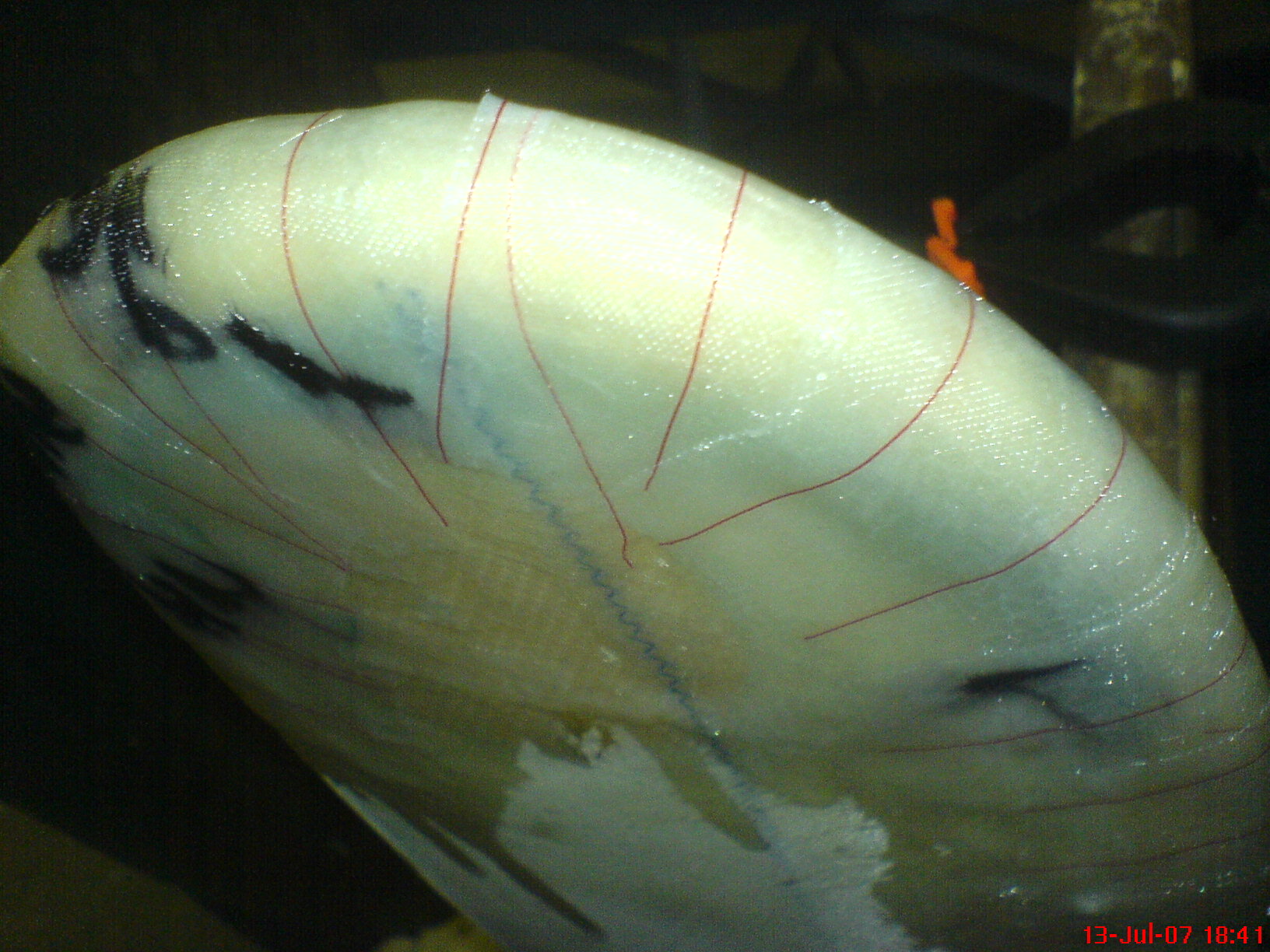

This was then skinned with woven fibreglass.



post-5437-040737700 1303442862_thumb.jpg



post-5437-015519600 1303442934_thumb.jpg

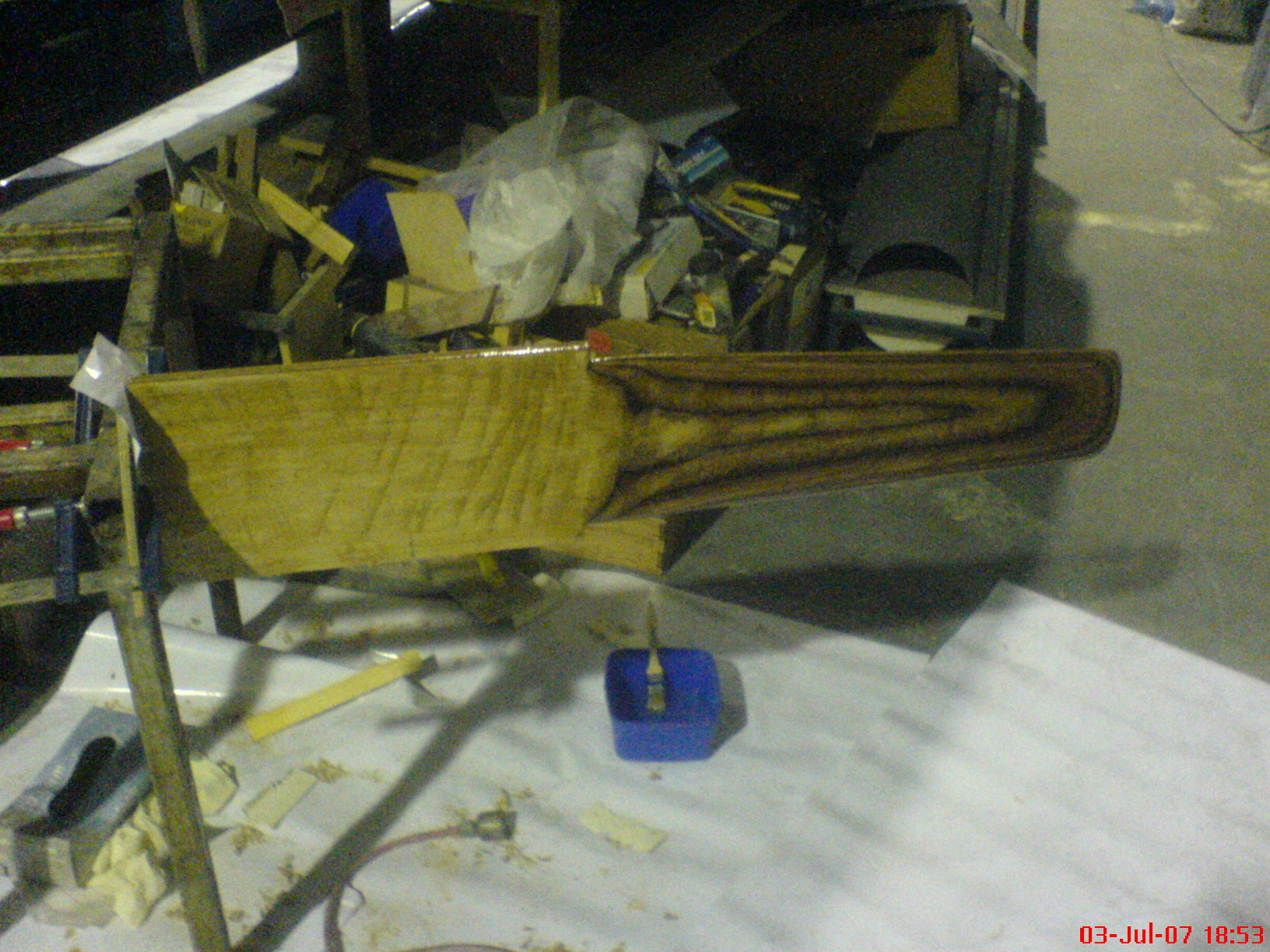

The centreboard was then coated in epoxy resin.



post-5437-024497100 1303442981_thumb.jpg

Edited by carbonboy
Link to comment
Share on other sites

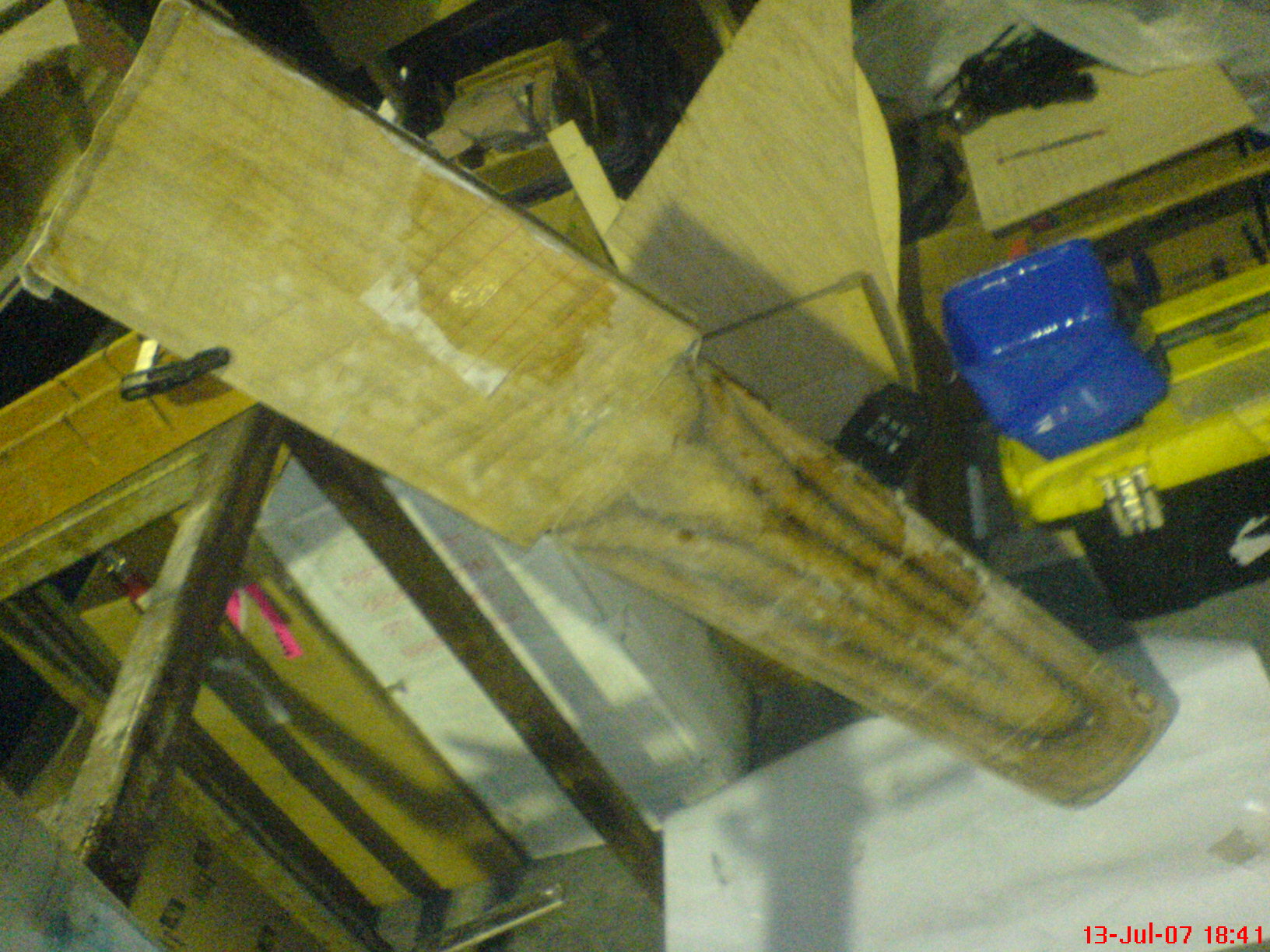

Then skinned with a lighweight (150gsm I think?) fibreglass cloth.



post-5437-029501100 1303443207_thumb.jpg



post-5437-059049500 1303443262_thumb.jpg



A good arfternoons work.



post-5437-099072600 1303443307_thumb.jpg

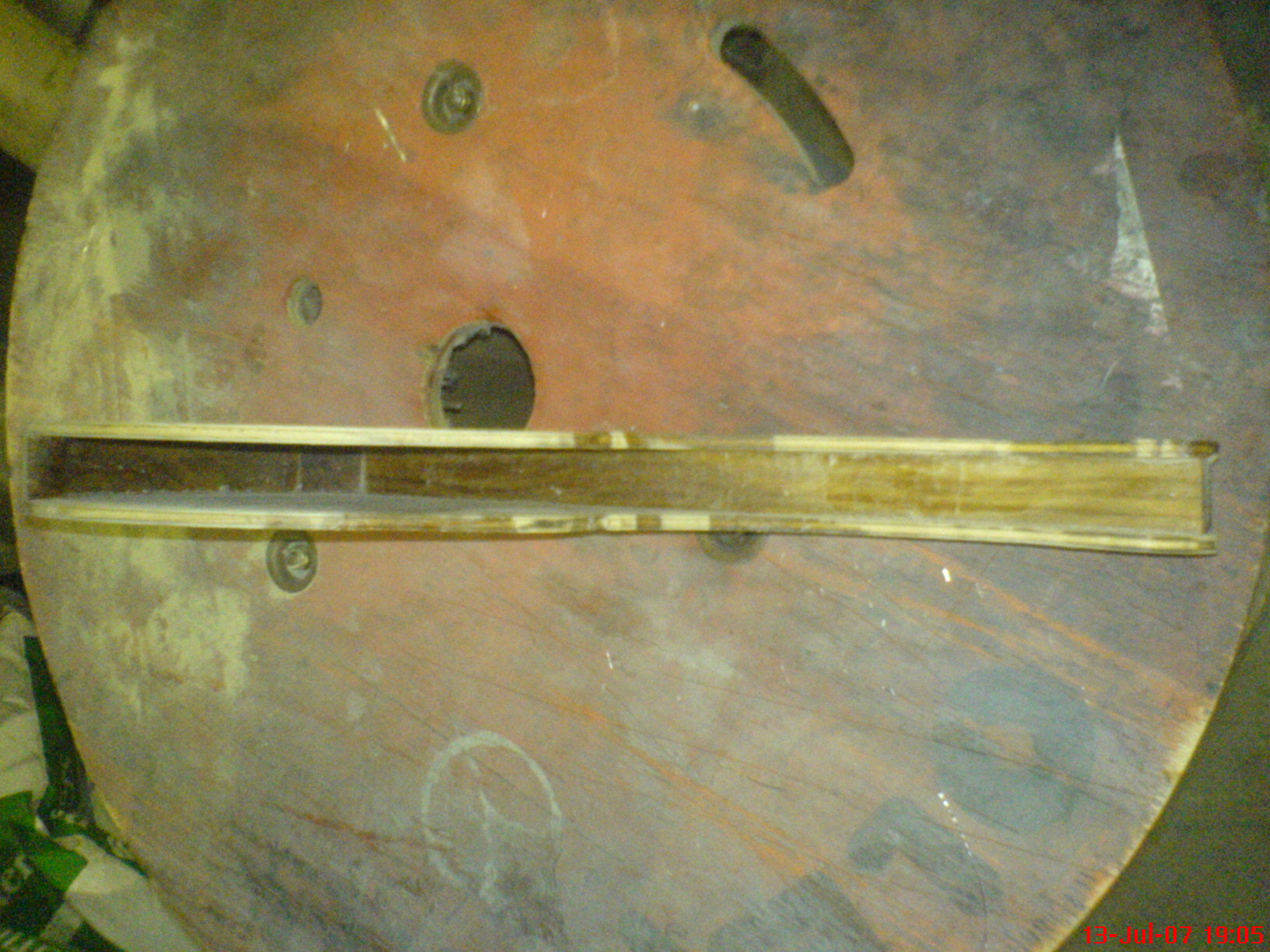

Construction of the rudder cassette starts.



post-5437-091453400 1303443340_thumb.jpg



post-5437-079549200 1303443384_thumb.jpg



This was then spaced to avoid deflection, fibreglass reinforced & vacuum bagged for cure.



post-5437-092374300 1303443431_thumb.jpg



Two pieces of fibreglass tube approx 8mm thick were laid up as I didnt have a mandrel long enough to make a one piece. So I made two & used my scarfing experience to join the two.



post-5437-018264300 1303443561_thumb.jpg

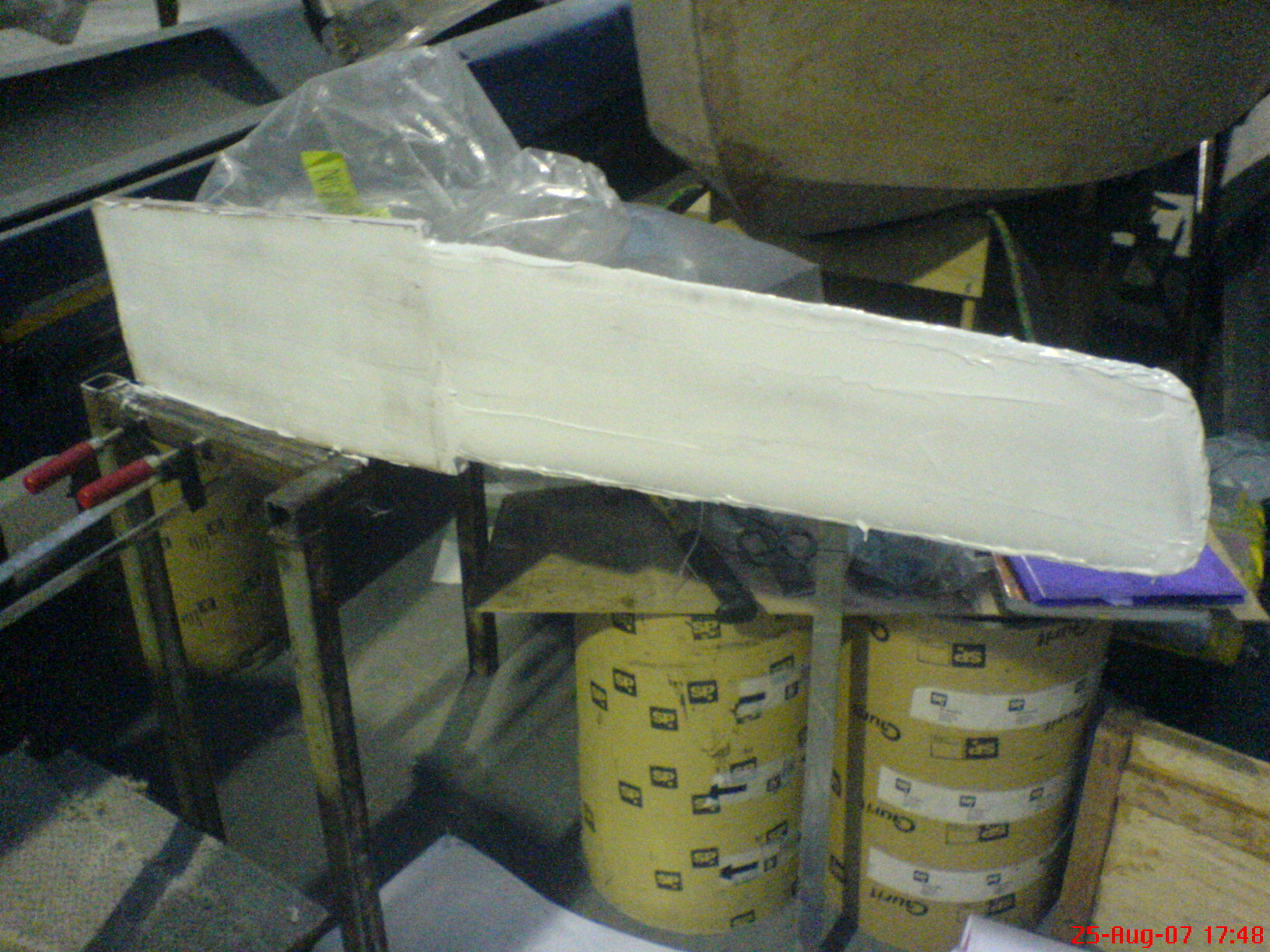

Centreboard bogged up ready to sand.



post-5437-078104600 1303443629_thumb.jpg



Cassette pieces.



post-5437-083793900 1303443655_thumb.jpg

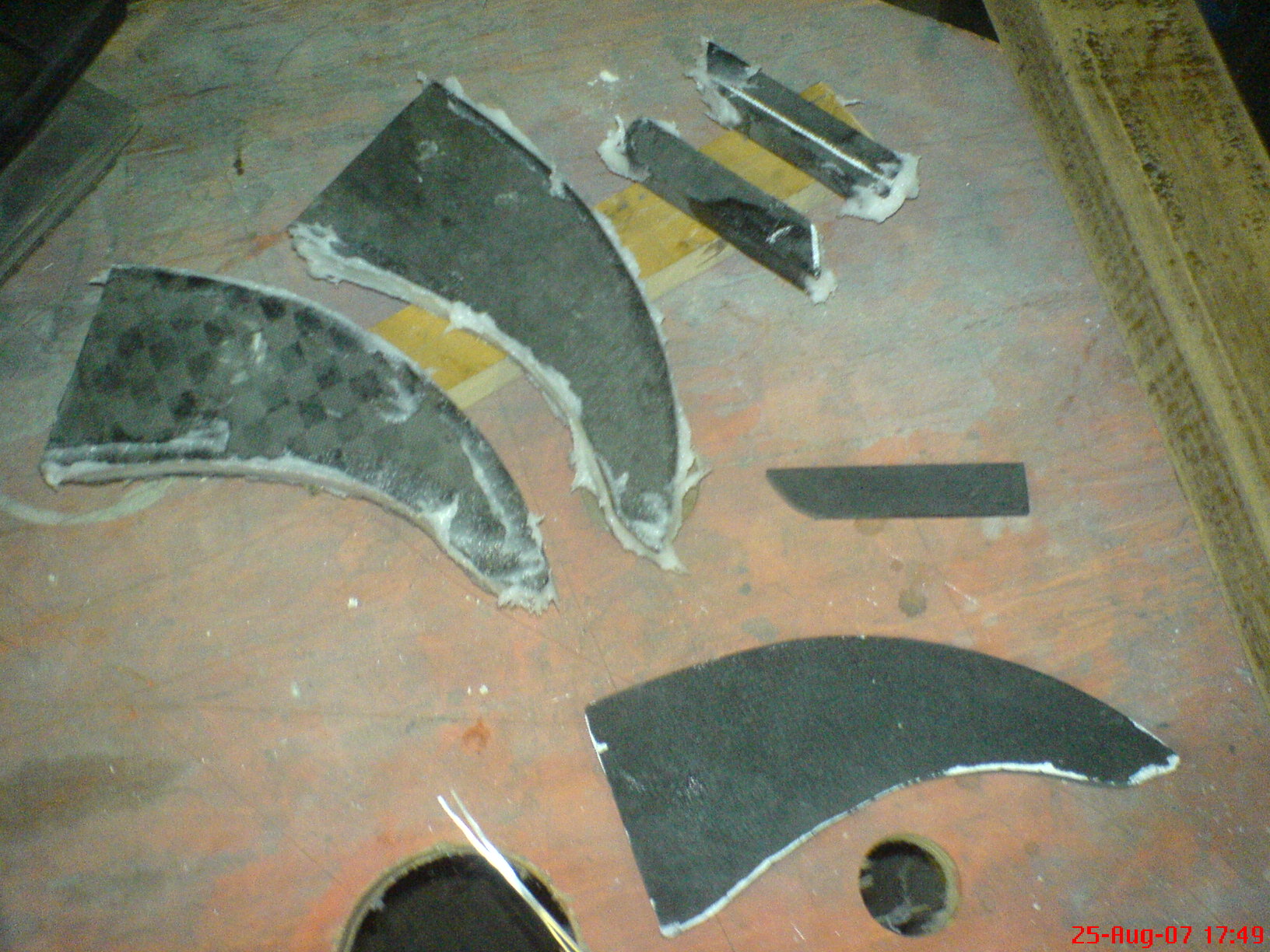

Fancy bits of offcuts being put to use..



post-5437-020497900 1303443702_thumb.jpg



More offcuts, this time being used as a baseplate for a mast.



post-5437-000814900 1303443768_thumb.jpg

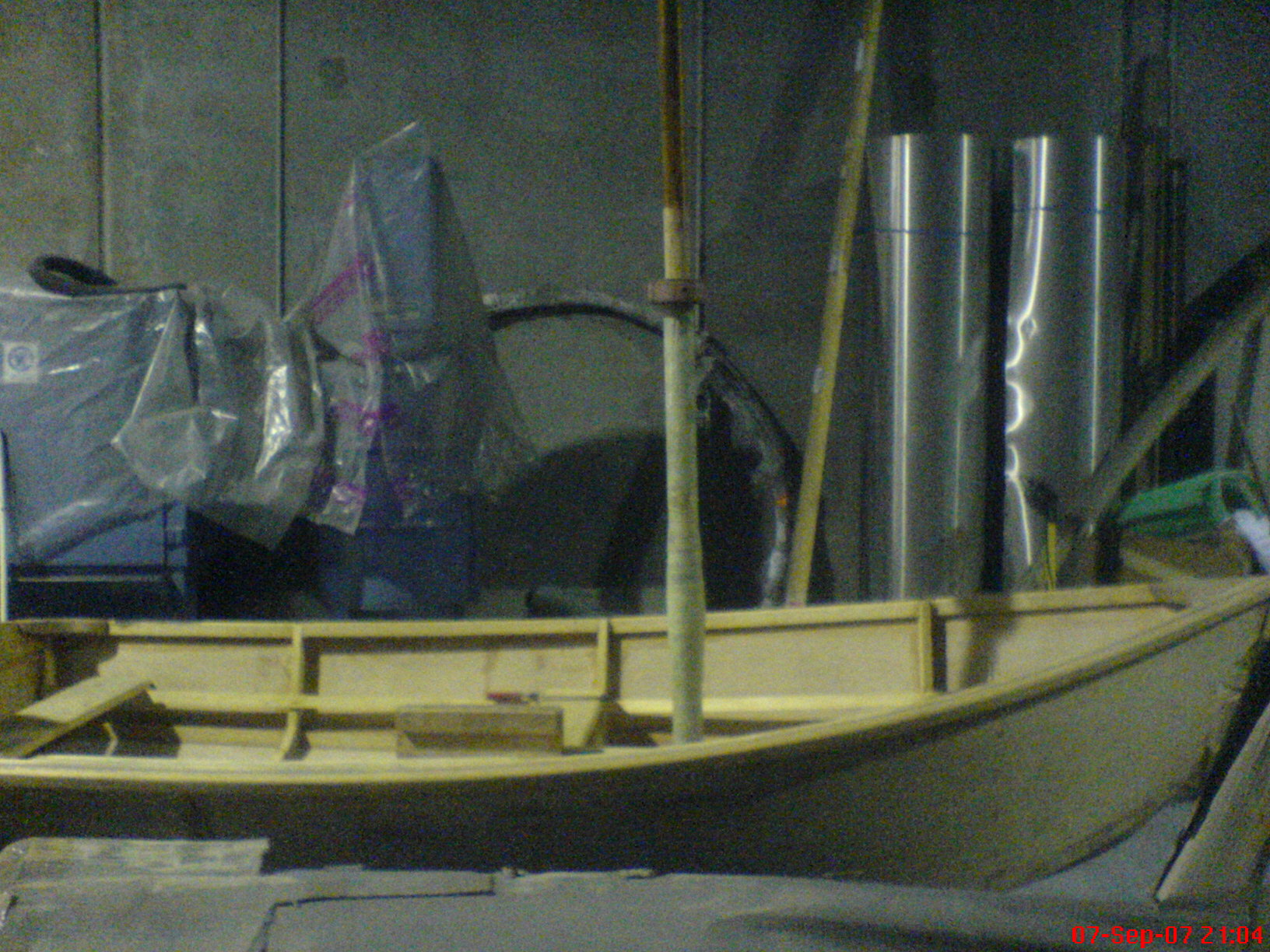

Remember the fibreglass tube I joined? Well I'd managed to cheaply acquire both a mast & boom made from white oregon. I know bugger all about timber but this was the best to use from what I'd found. I'd also found that it was hard to get ahold of in the length I needed & hideously expensive when I could. Problem was the mast was so short you wouldnt be able to duck under the boom, so I had to jack it up a (fair) bit.



post-5437-035436400 1303443861_thumb.jpg



This had additional bracing at its base, I have lifted the entire boat off the ground by this bracing & its held firm so far!



post-5437-028727600 1303444049_thumb.jpg

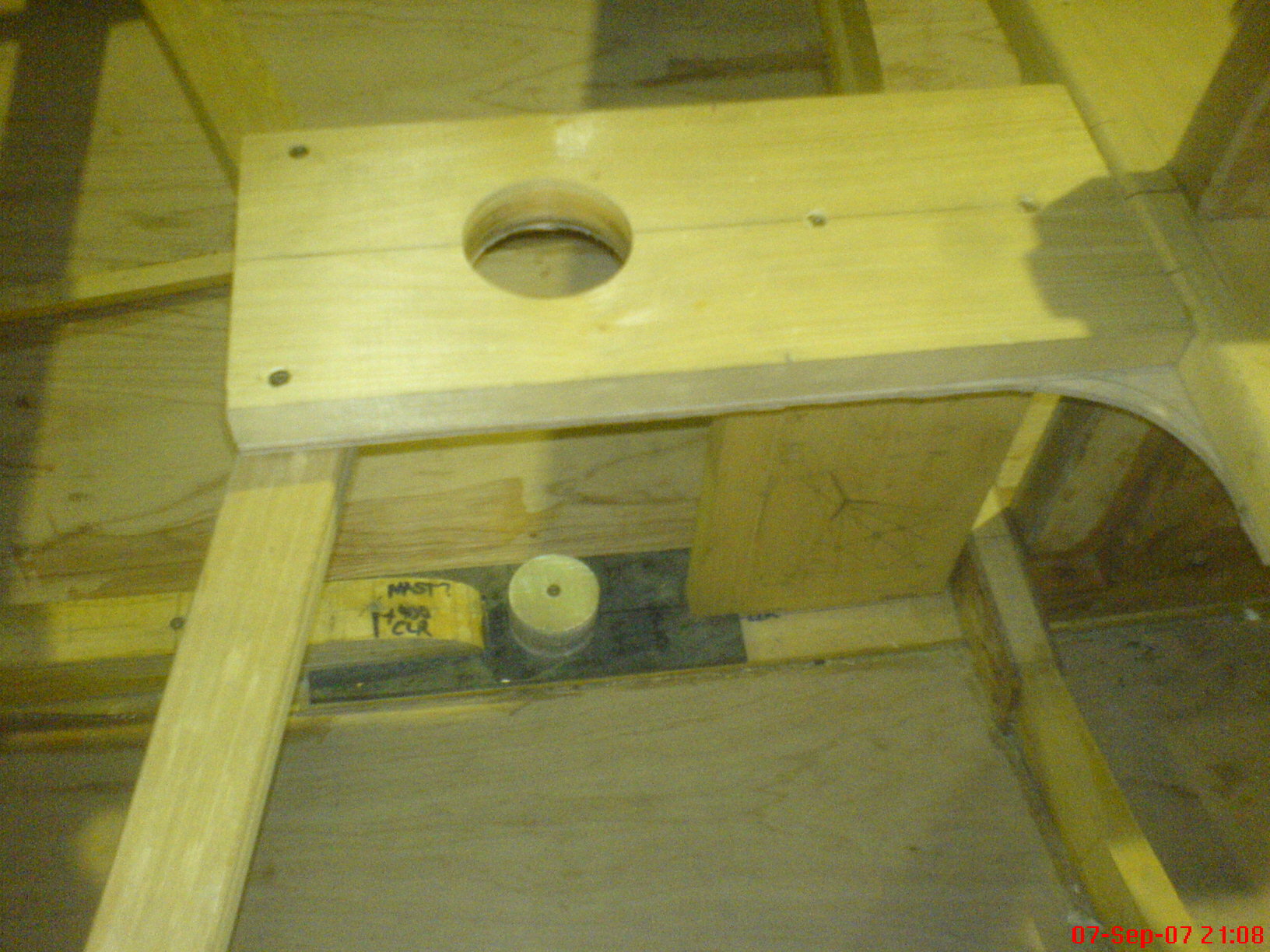

Without mast tube in place.



post-5437-014307900 1303444137_thumb.jpg

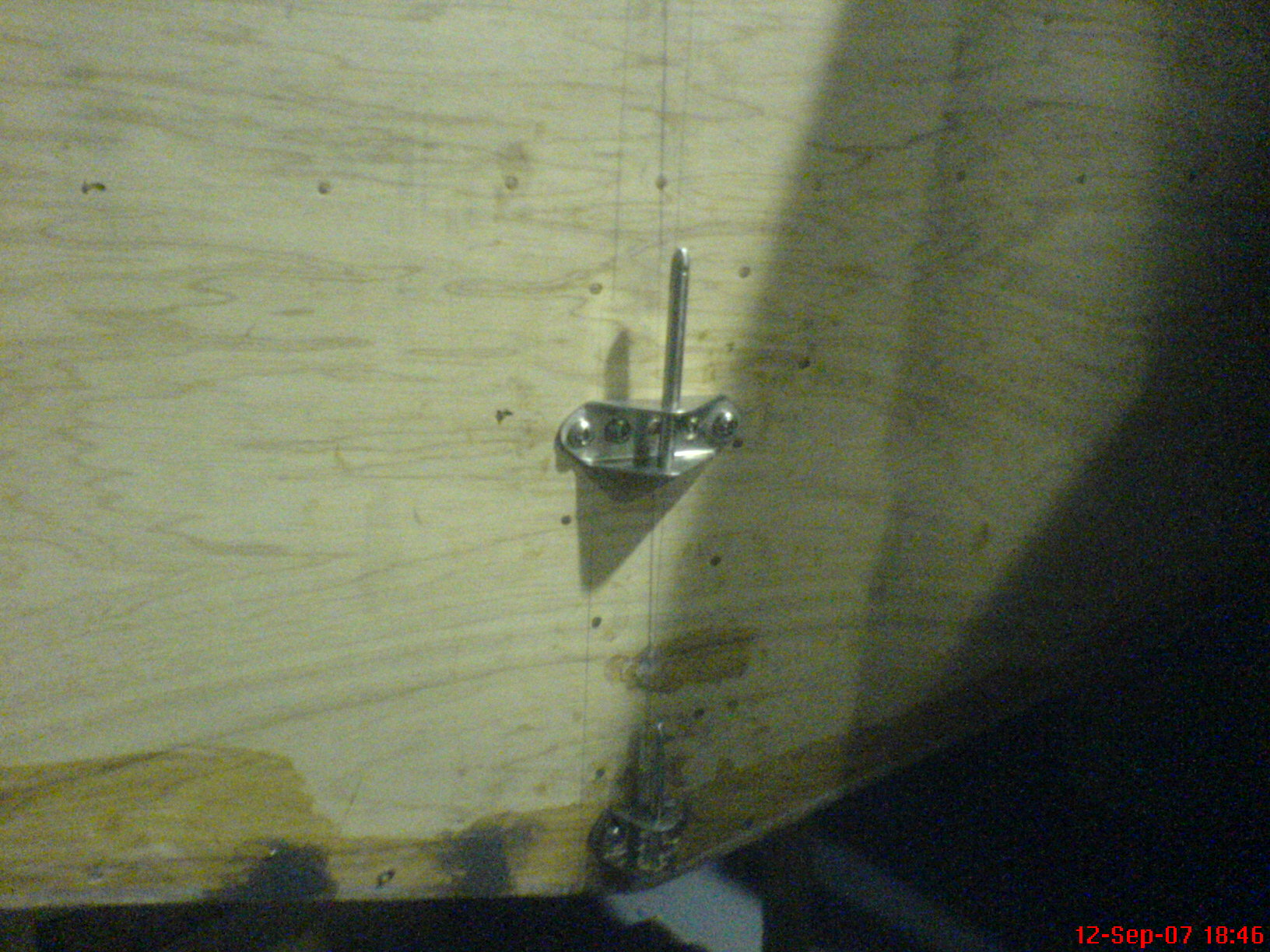

316 stainless rudder hinges attached with internal backing plates.



post-5437-087041900 1303444218_thumb.jpg

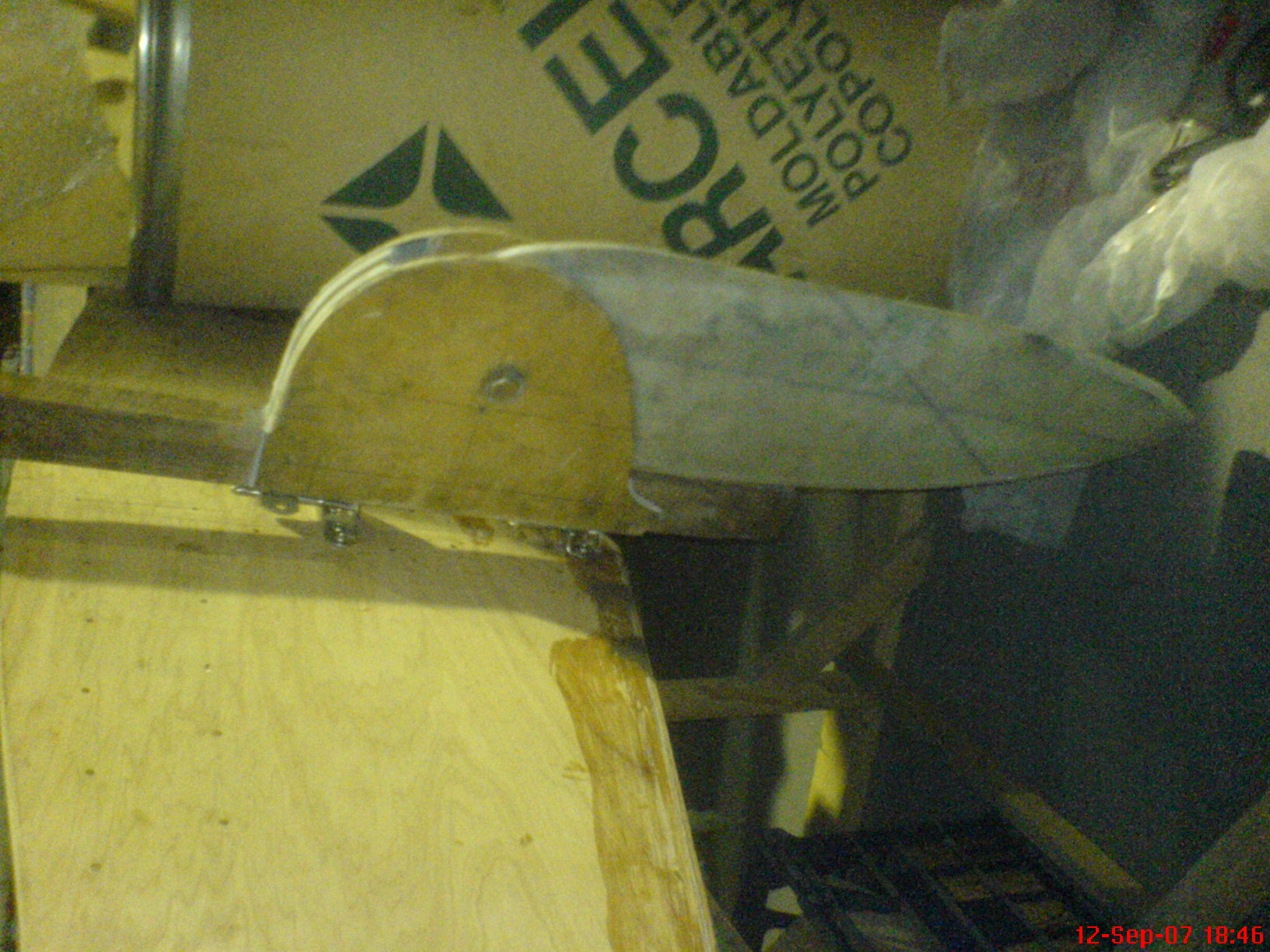

Cassette & blade test fit. Yes this is a kick up style rudder so I don't have to yank the whole lot off when coming into shallow water. Of course if I forget to pull the centreboard up that'll hit first anyway. :laff:



post-5437-047894500 1303444285_thumb.jpg



post-5437-022795600 1303444398_thumb.jpg



Base of mast & little bits.



post-5437-001675600 1303444486_thumb.jpg

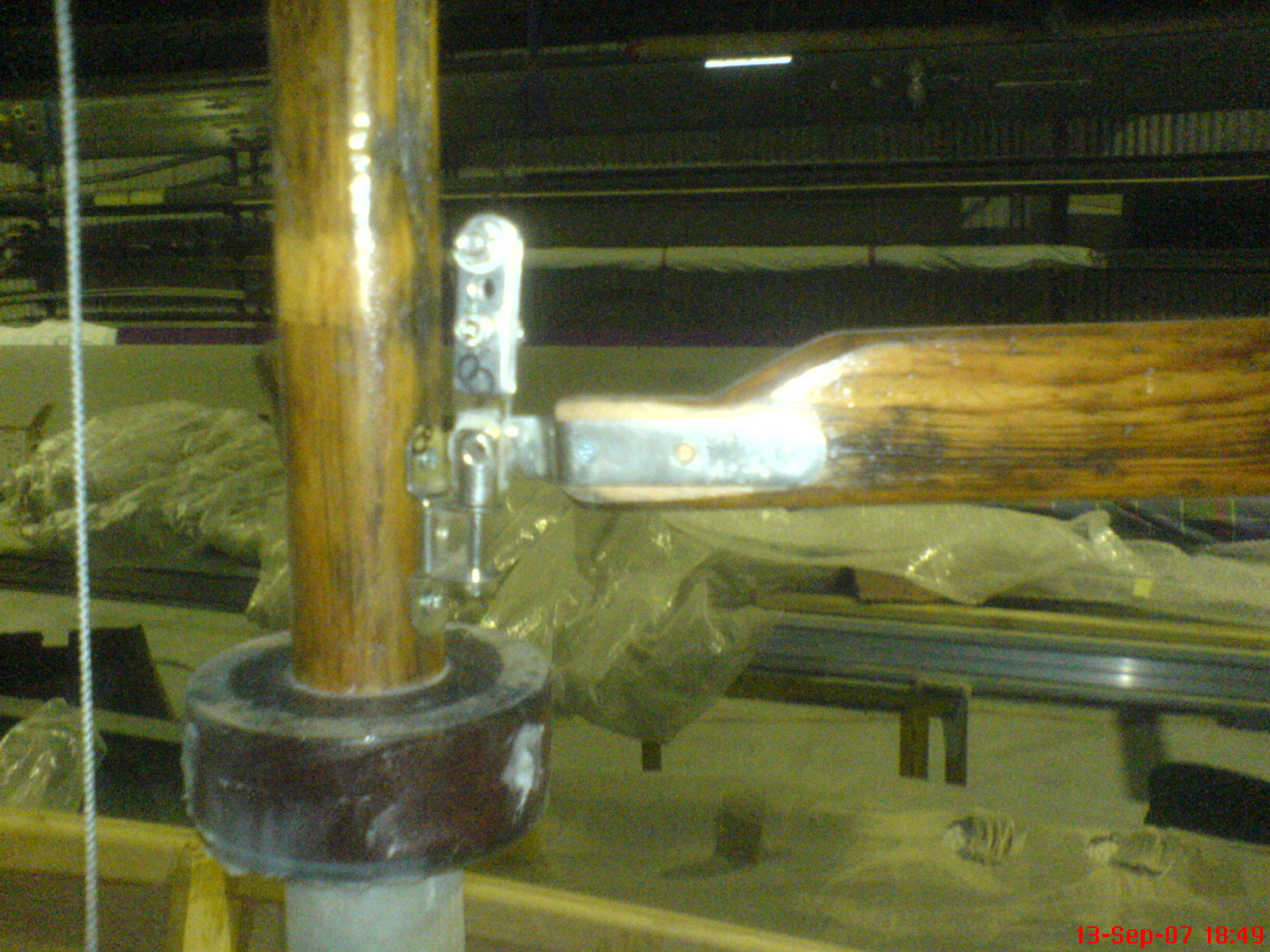

Boom attachment.



post-5437-073771400 1303444547_thumb.jpg



We then had a brief trip home to setup the rigging systems.



post-5437-058685400 1303444664_thumb.jpg

Edited by carbonboy
Link to comment
Share on other sites

More rigging shots, darn upload limits! :laff:



post-5437-000021700 1303444835_thumb.jpg

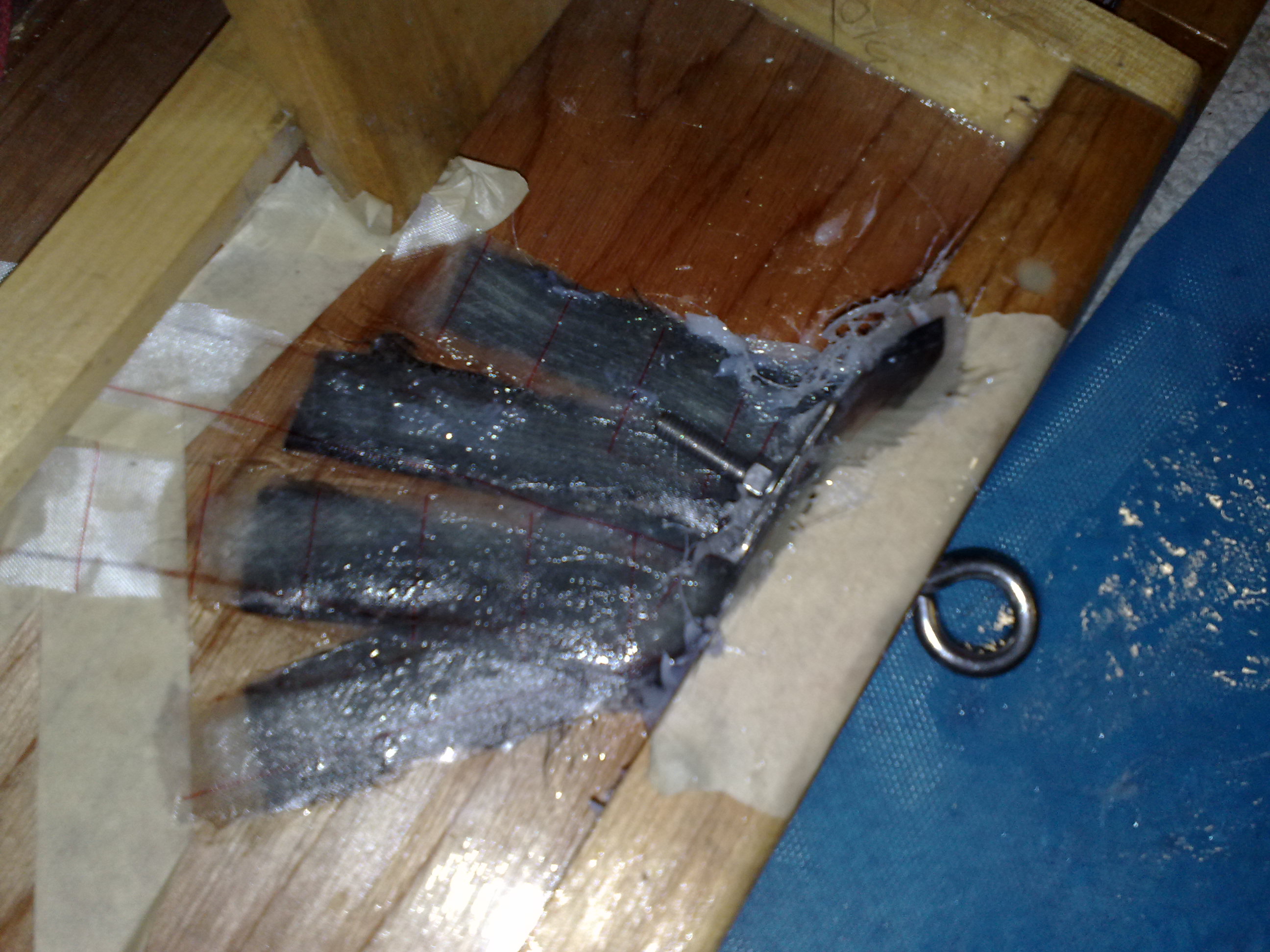

Carbon unis were laid up in such a way, that if my rigging anchor point wants to let go, its gonna have to take half the side of the boat with it.



post-5437-085758200 1303444864_thumb.jpg



The entire boat has been epoxy sealed using a product called Everdure, so little chance of rot, yay!



post-5437-036567700 1303444984_thumb.jpg



Home made rigging, can't remember the name of the line used but was some expensive marine grade, low stretch stuff. I never thought I'd find myself with a needle & thread.



post-5437-096907100 1303445021_thumb.jpg



post-5437-051845000 1303445126_thumb.jpg



Fibreglass reinforcement on the bow.



post-5437-006063400 1303445182_thumb.jpg

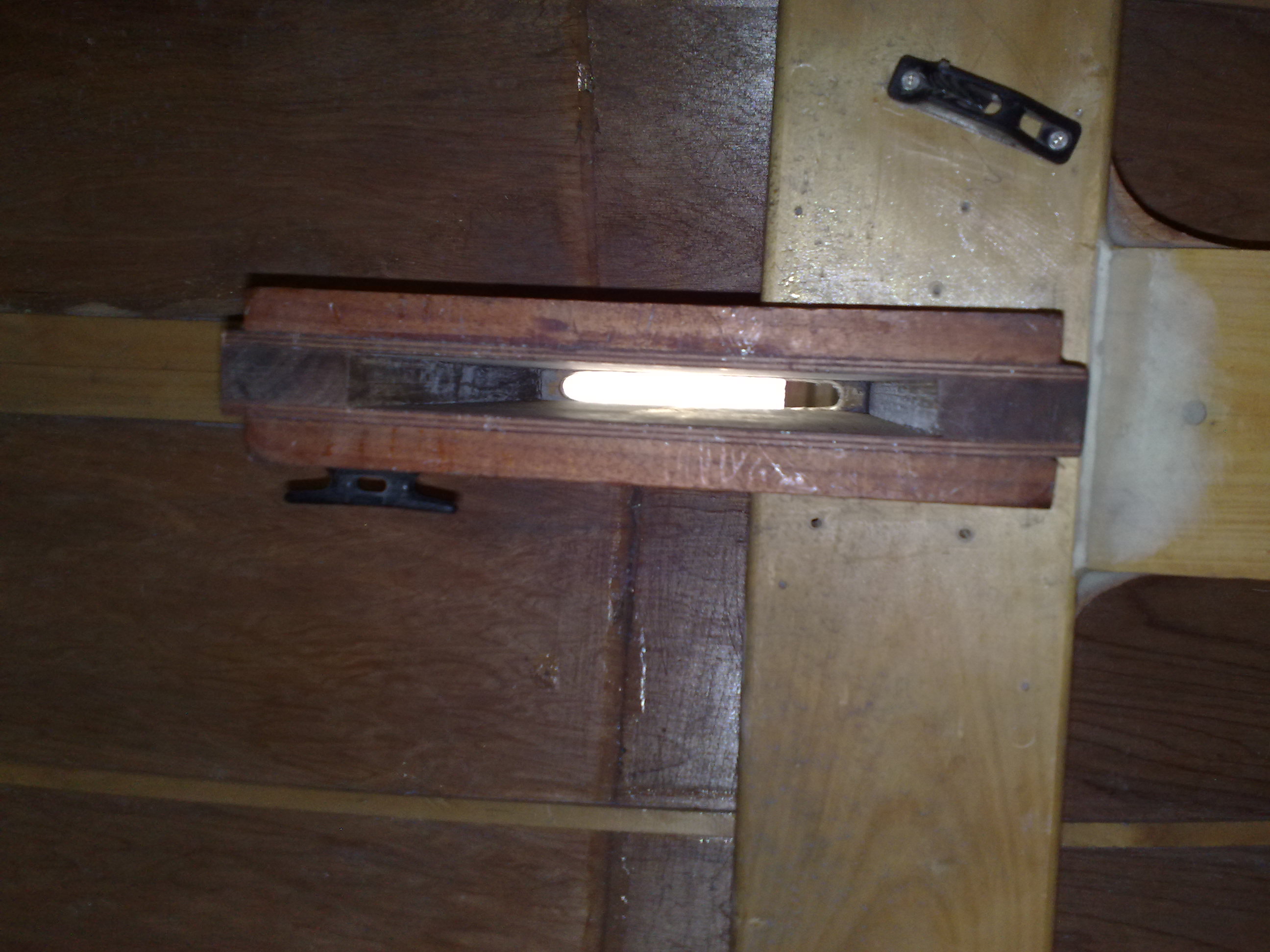

There's a hole in the bucket, dear Liza, dear Liza...For those interested, the boat is (in theory) still watertight as the height of the completely sealed/waterproof casing is higher than the theoretical waterline of the boat when loaded up. Plus water will have a hard time getting up there anyway with the snug fitting centreboard in there. :wink:



post-5437-005583500 1303445240_thumb.jpg

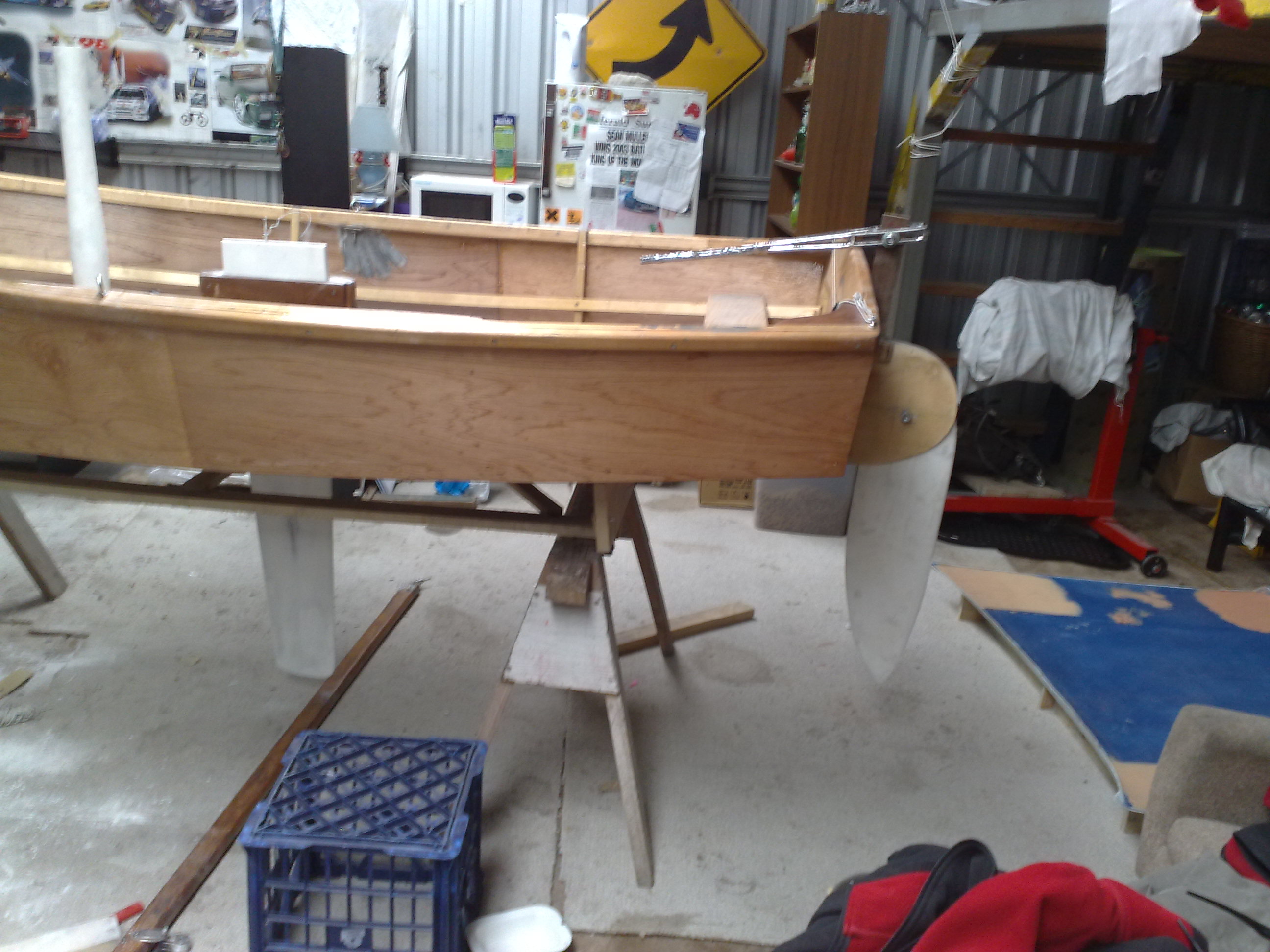

Centreboard & rudder bogged & fitted.



post-5437-034931200 1303445405_thumb.jpg

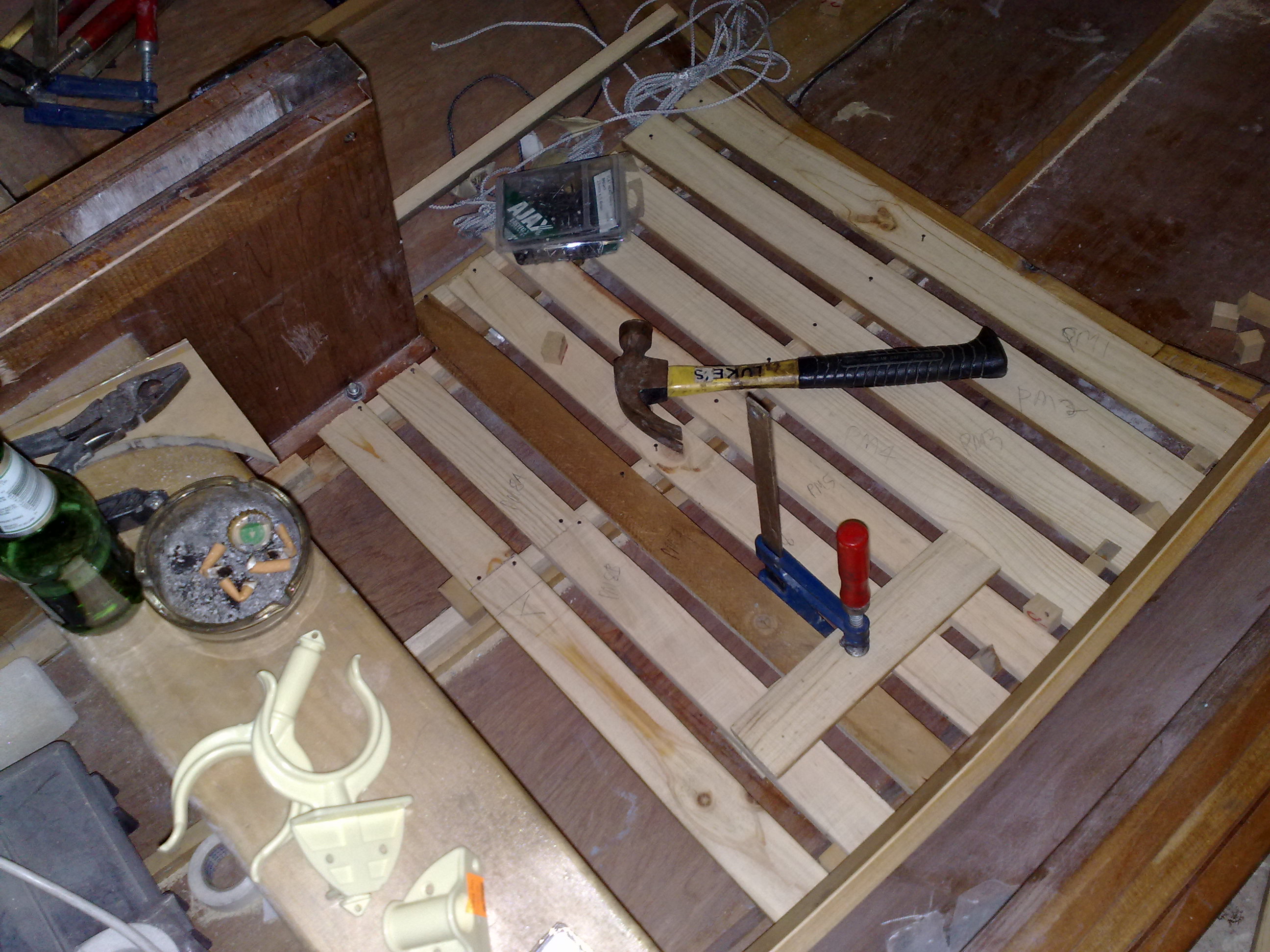

Flooring, version 1.0. Result = FAIL.



post-5437-035989900 1303445503_thumb.jpg



Flooring, version 2.0. Result = WIN.



post-5437-075865000 1303445545_thumb.jpg



Each of these holes were individually 3mm pilot drilled, then 6mm, then 8mm then countersunk on both sides then cleaned up with a sanding stone on both sides.



post-5437-035656400 1303445637_thumb.jpg



Getting a nice, even gap was difficult.



post-5437-084039600 1303445755_thumb.jpg

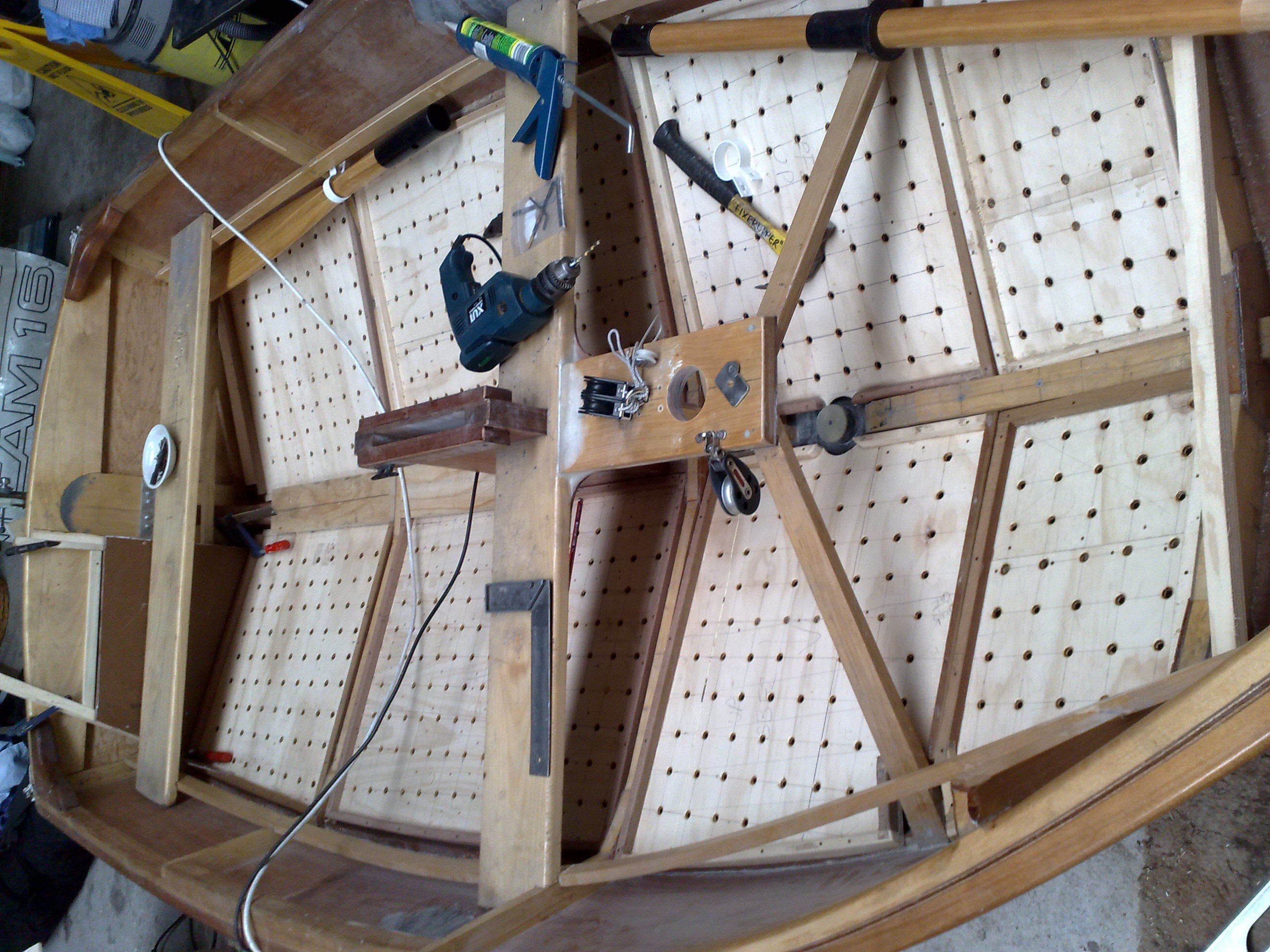

Lots & lots & lots of holes! These panels sit on top of the existing framework & allow water to drain off underneath, so I hoped!



post-5437-080316300 1303445906_thumb.jpg

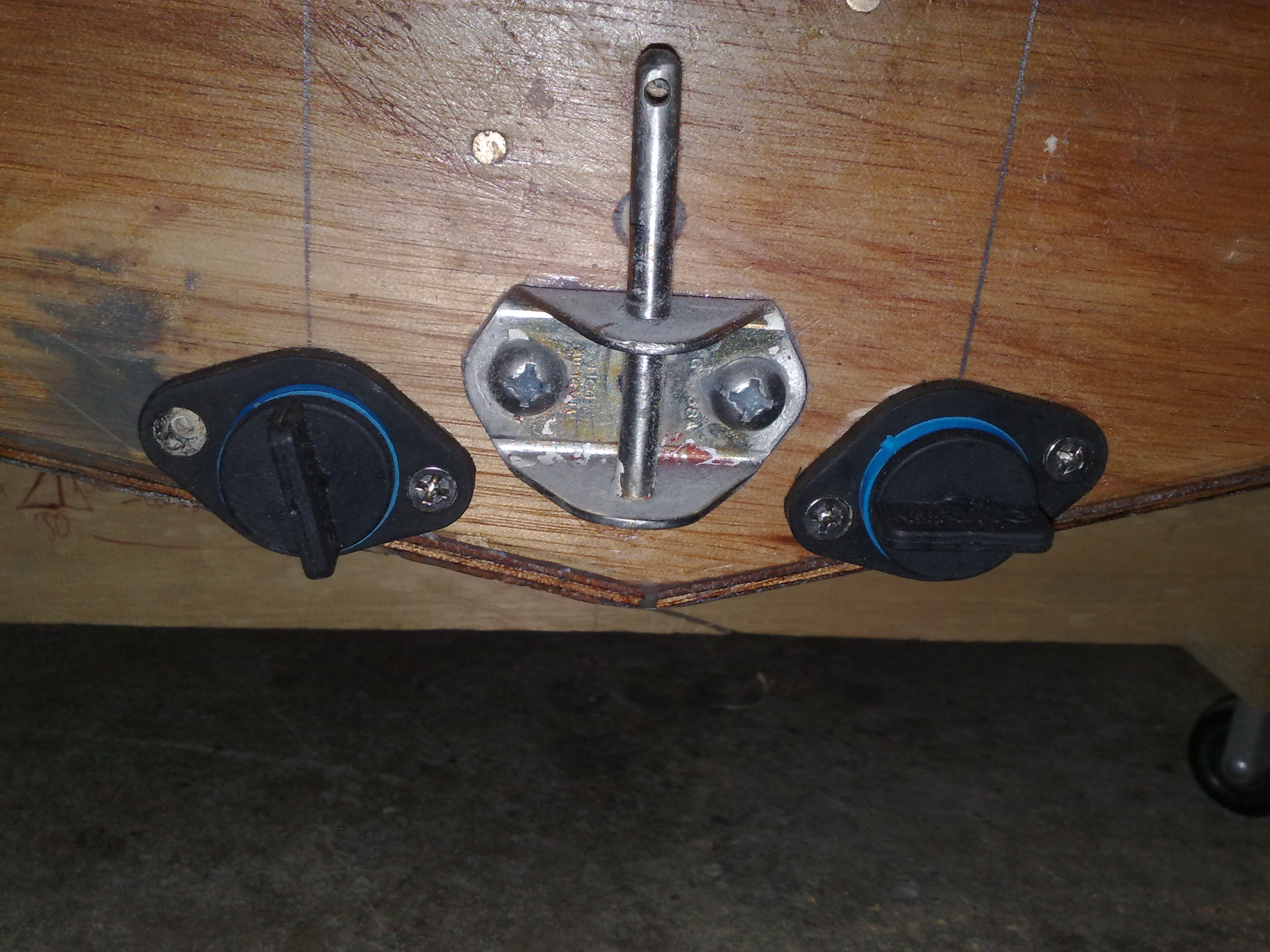

Bungs fitted!



post-5437-073005000 1303445968_thumb.jpg

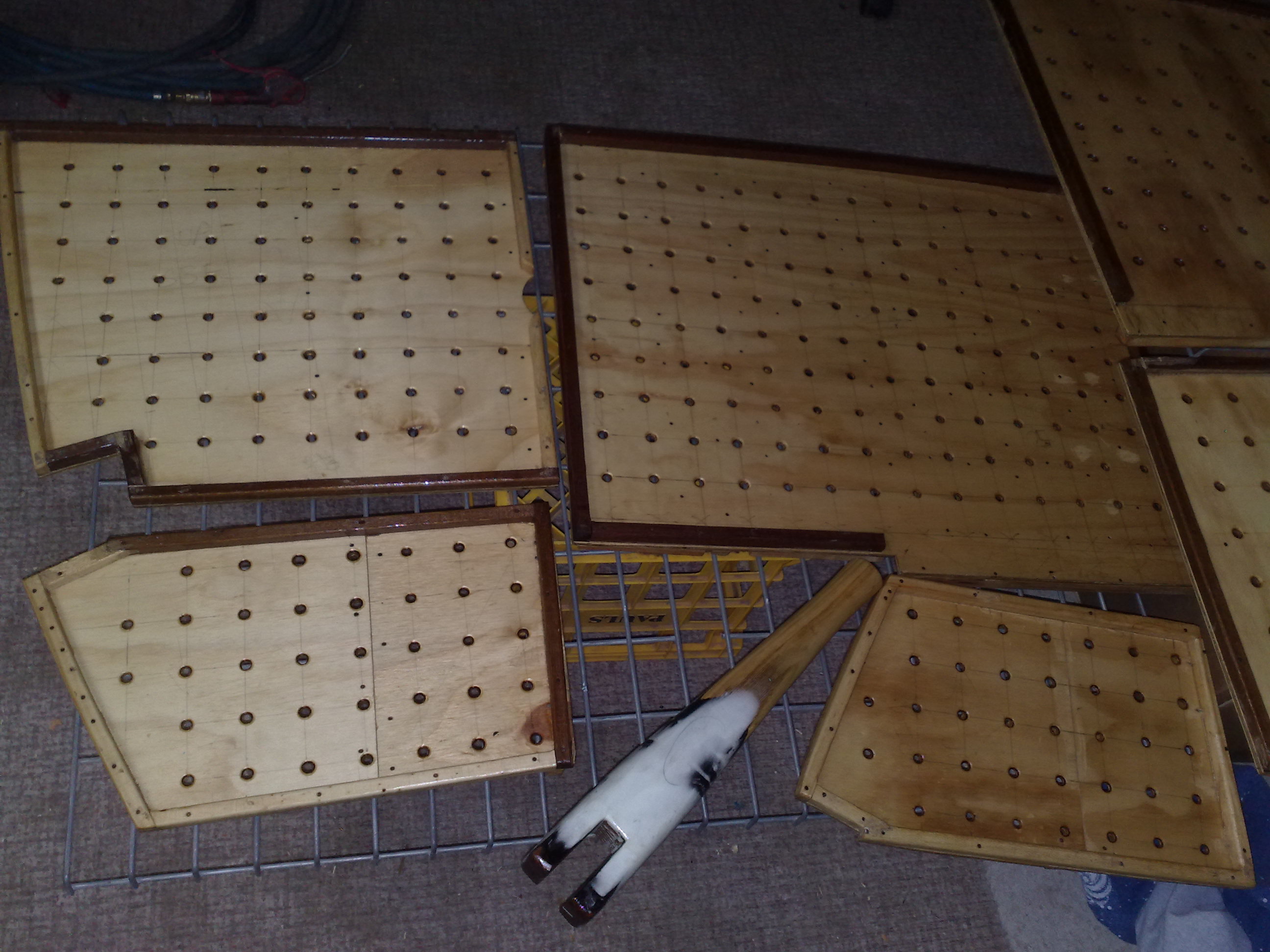

Flooring & rudder handle contructed of a timber/carbon fibre combination being epoxy sealed.



post-5437-031844900 1303446070_thumb.jpg



post-5437-008036500 1303446096_thumb.jpg

Edited by carbonboy
Link to comment
Share on other sites

post-5437-058780900 1303446315_thumb.jpg



Having been sanded back after cure, it was time for a spray paint session. Boss had a heap of leftover 2 pack stuff that he didnt want, so sent it my way. Good for the interior as its quite hard wearing.



post-5437-023246000 1303446375_thumb.jpg



First coat.



post-5437-099916300 1303446422_thumb.jpg



Al done, out to dry.



post-5437-096978800 1303446475_thumb.jpg

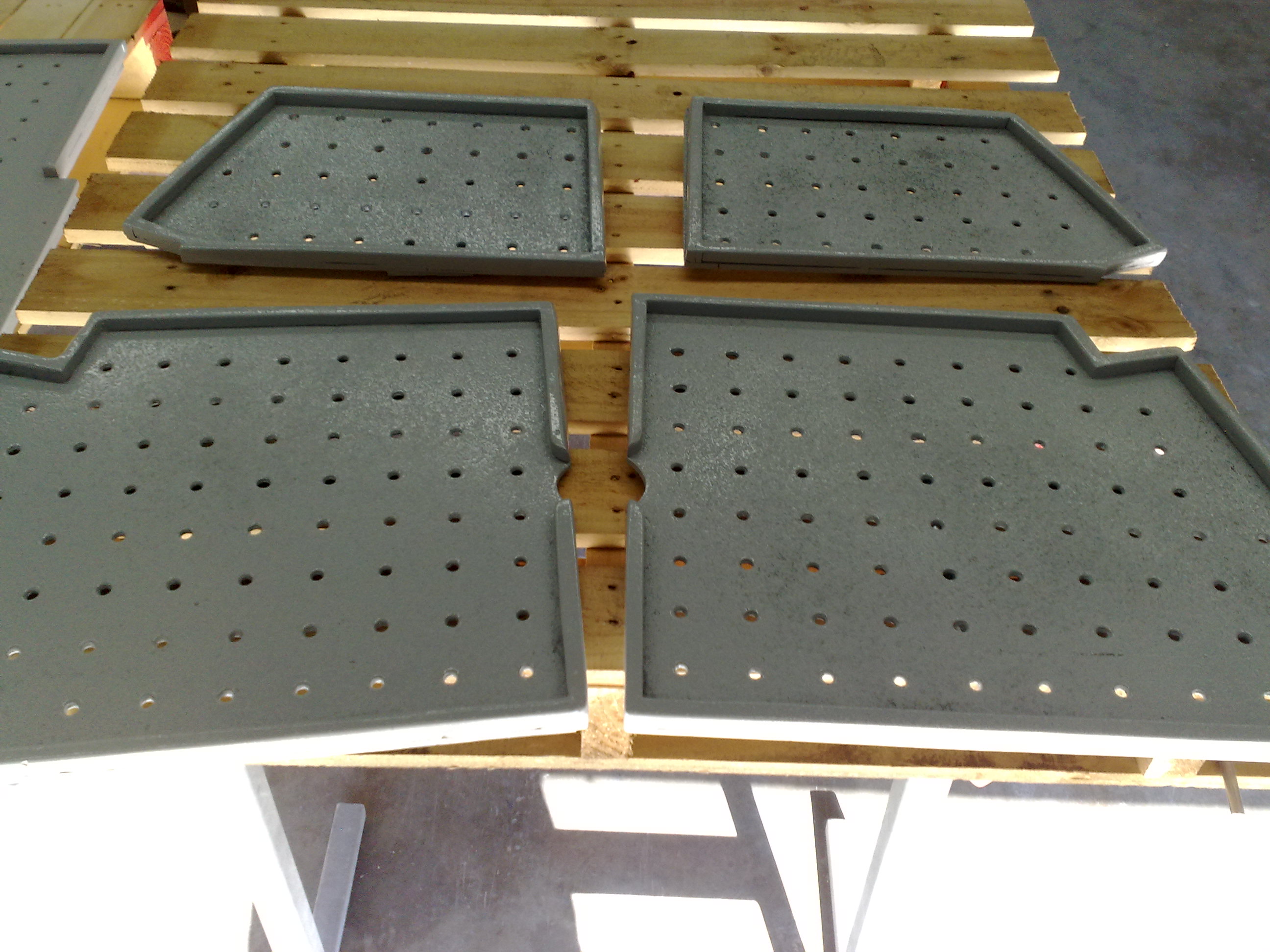

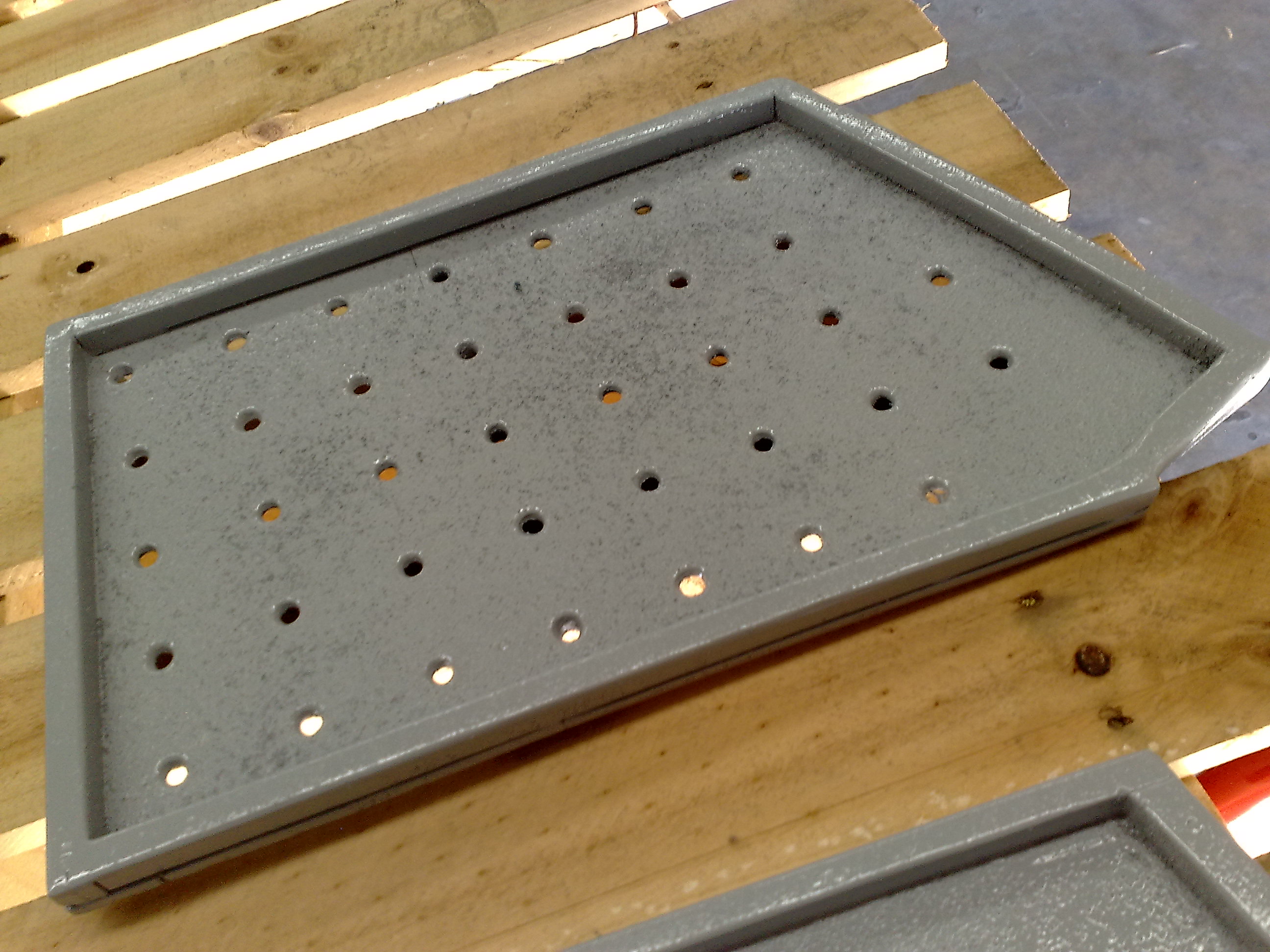

Some shots of the non-skid surface mixture sprinkled (liberally) on mid-spray session. Sand can be used but when you've got access to the good stuff...



post-5437-091766700 1303446565_thumb.jpg



post-5437-064556900 1303446594_thumb.jpg



post-5437-037697200 1303446643_thumb.jpg

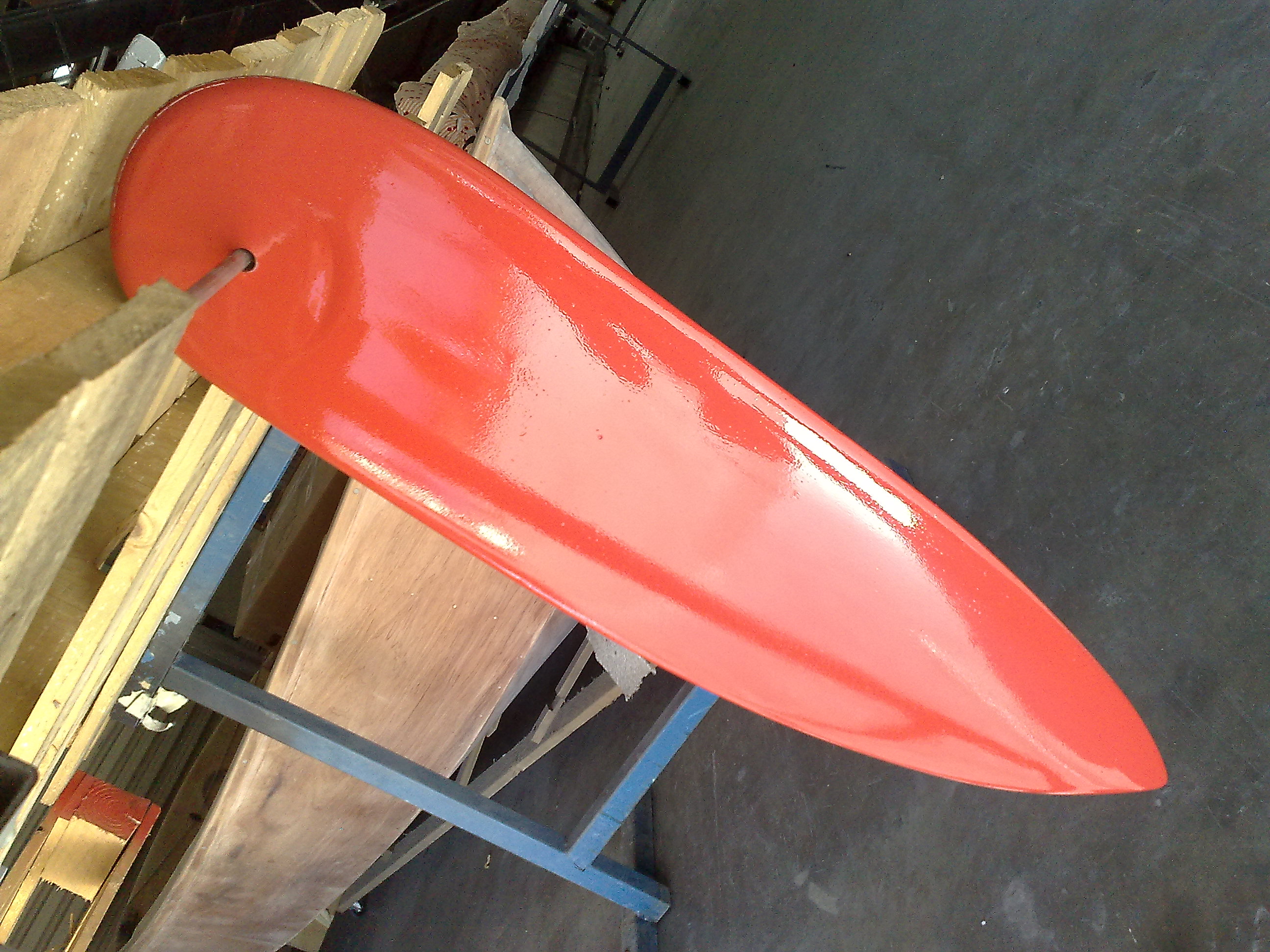

Rudder blade painted.



post-5437-012283600 1303446697_thumb.jpg



Centreboard painted.



post-5437-032702800 1303446736_thumb.jpg



Mast painted.



post-5437-035534700 1303446786_thumb.jpg



Boom painted.



post-5437-018521800 1303446810_thumb.jpg

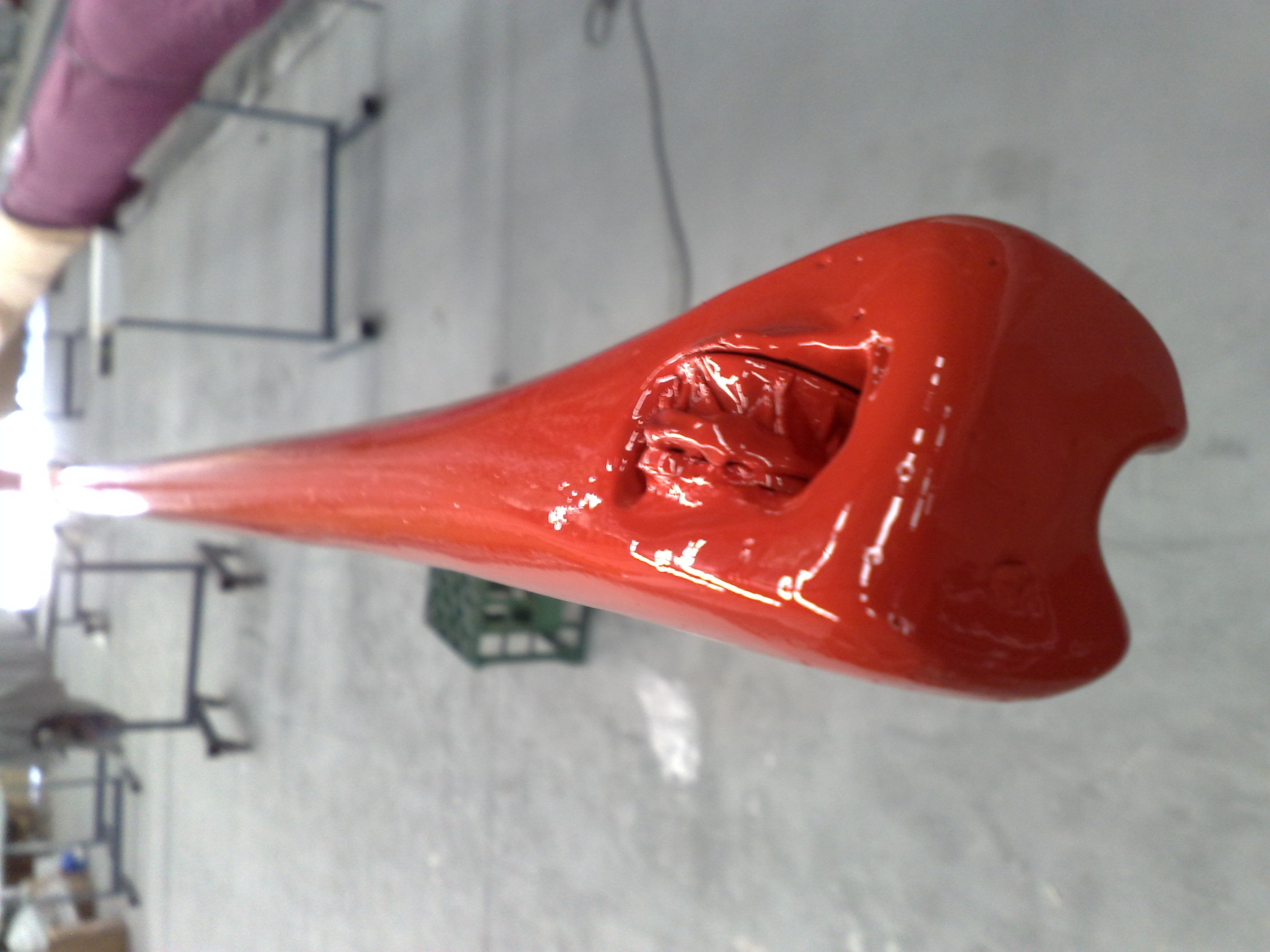

Mast tip closeup.



post-5437-011996800 1303446847_thumb.jpg

Link to comment
Share on other sites

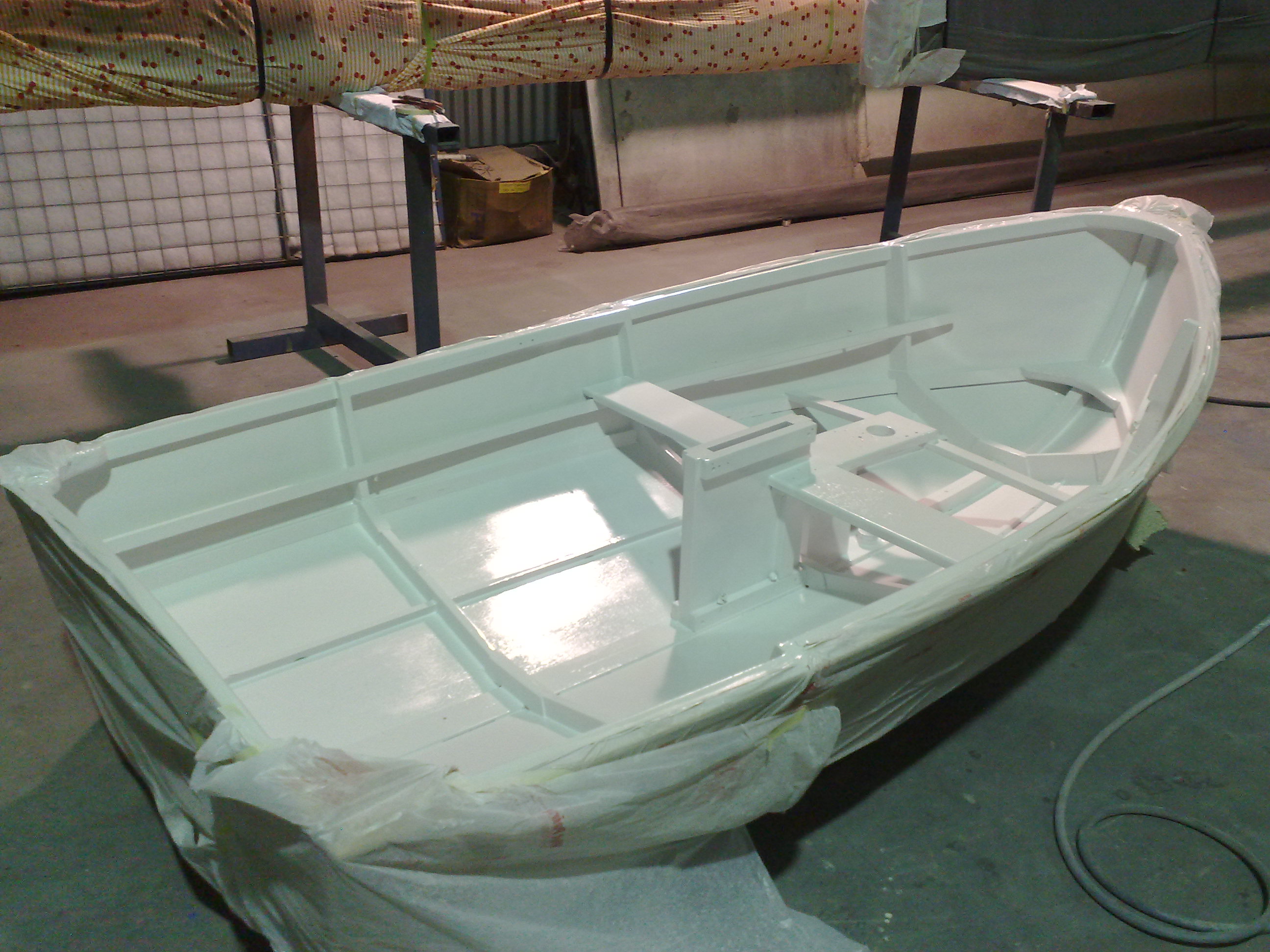

Interior sprayed! Yes I could've gone the clear varnish route, but I wasnt happy to show off all of my workmanship & varnish can be high maintainance, so a tick in the 'paint' option box.



post-5437-018079700 1303447003_thumb.jpg



post-5437-016430300 1303447042_thumb.jpg



I had been pondering a design for quite some time, I know that when its in the water only the fishies will see it but seeing as it lives out of water usually standing vertical, I drew some inspiration from this.



post-5437-028704500 1303447217_thumb.jpg



So the hours of drawing, getting things somewhat symetrical & masked up began.



post-5437-015940600 1303447309_thumb.jpg



post-5437-067957300 1303447334_thumb.jpg

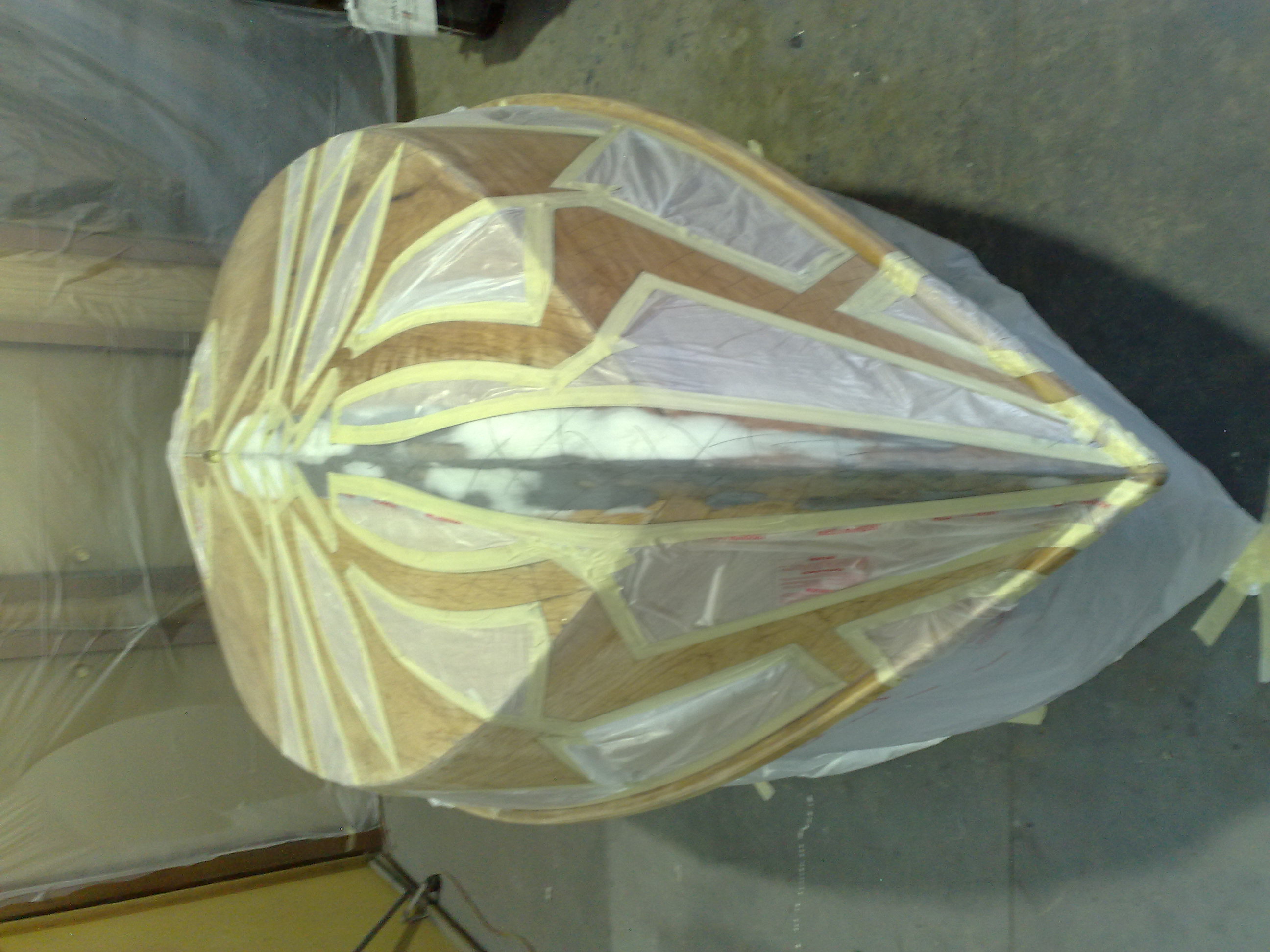

post-5437-000606500 1303447367_thumb.jpg

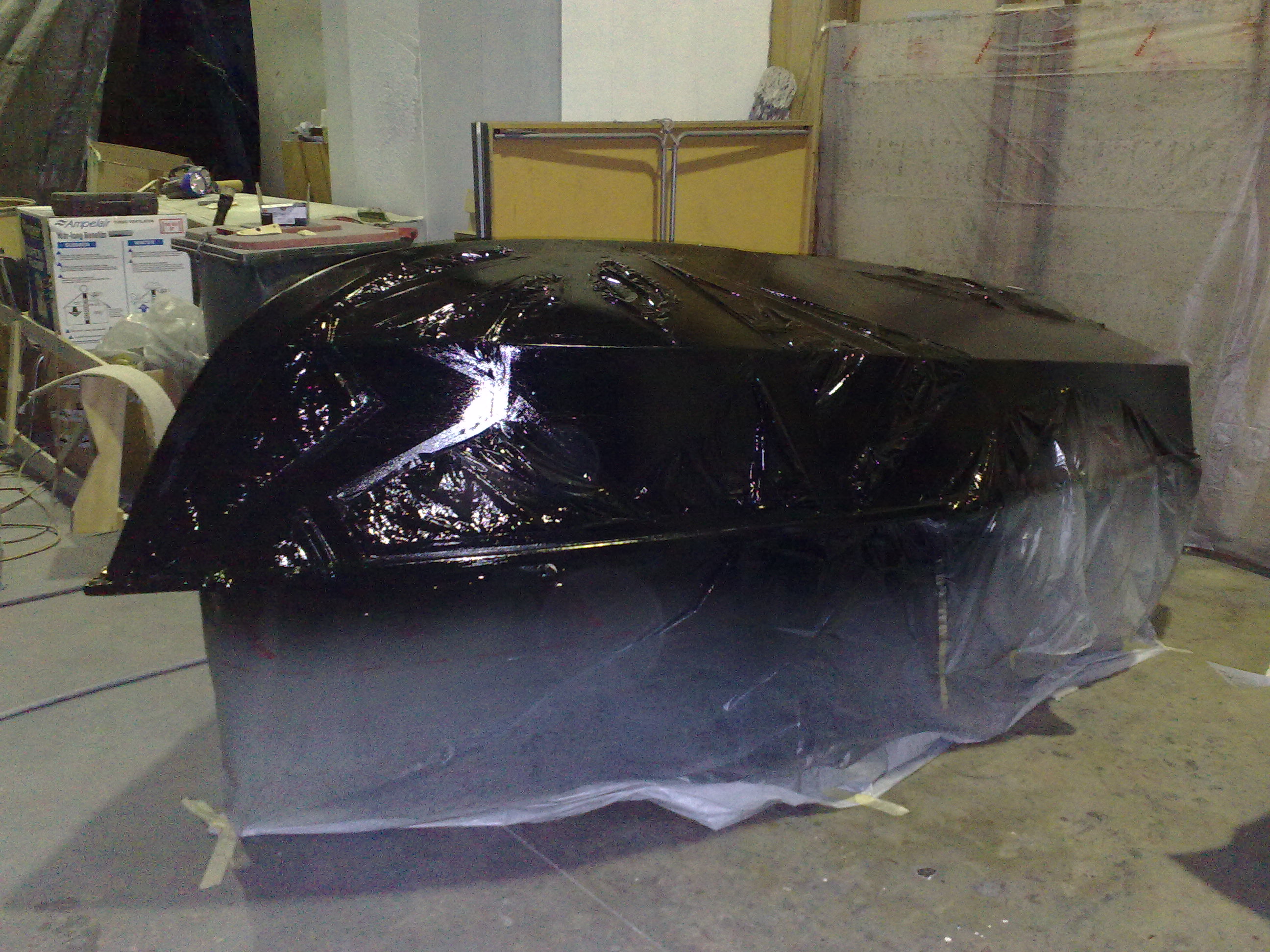

First paint colour goes on.



post-5437-025779900 1303447532_thumb.jpg



post-5437-077214400 1303447602_thumb.jpg



post-5437-032779500 1303447660_thumb.jpg



Rudder cassette & handle painted too.



post-5437-001777600 1303447696_thumb.jpg

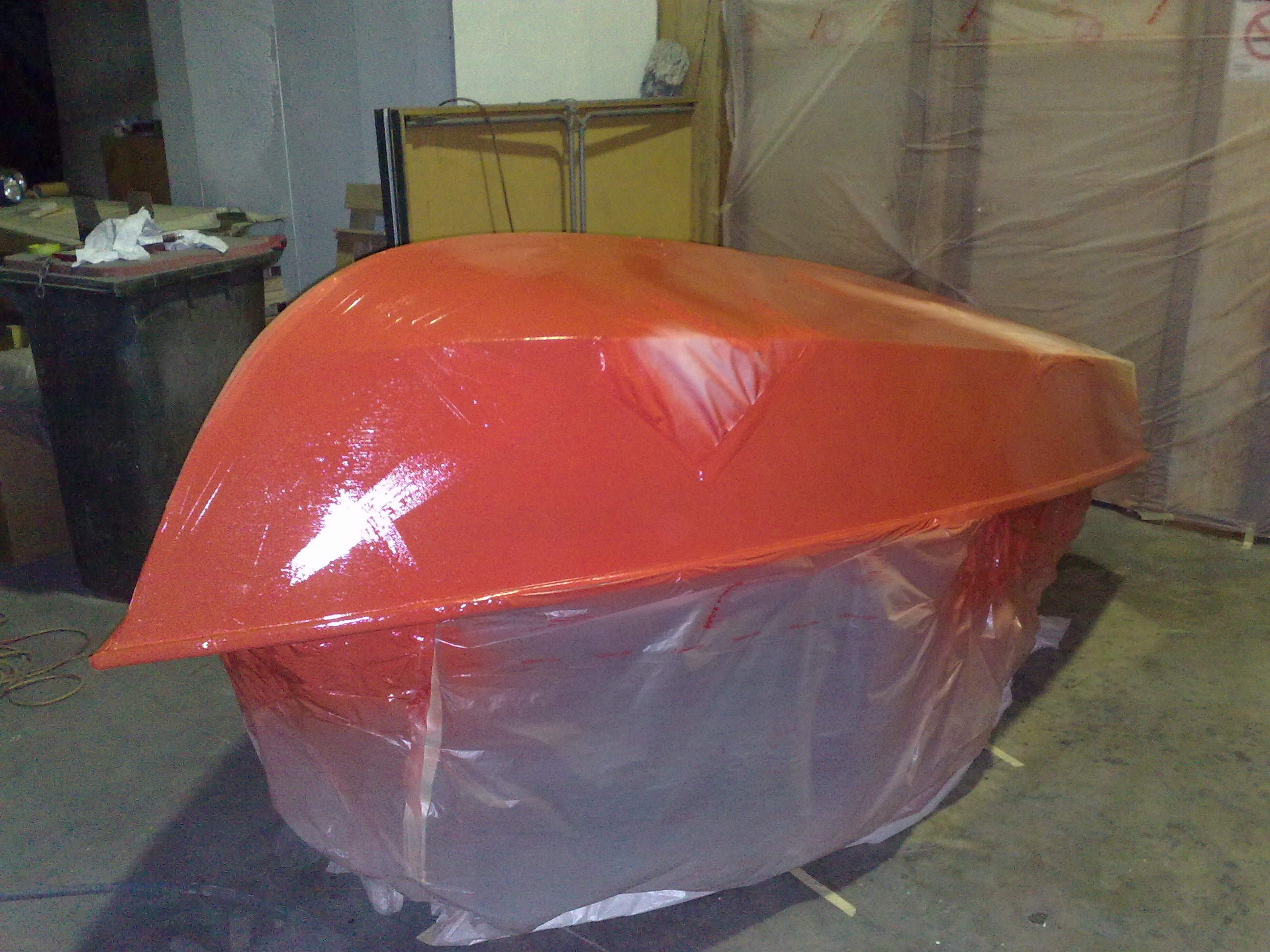

Masking removed, paint allowed to cure for a few days, then it was time to mask it all up to apply second stage paint.



post-5437-041672000 1303447838_thumb.jpg



post-5437-035380000 1303447928_thumb.jpg



post-5437-052905300 1303448008_thumb.jpg



Motivational messages to my old workshop manager, he was a cranky bugger who didnt like my sense of humour.



post-5437-055179400 1303448079_thumb.jpg

Link to comment
Share on other sites

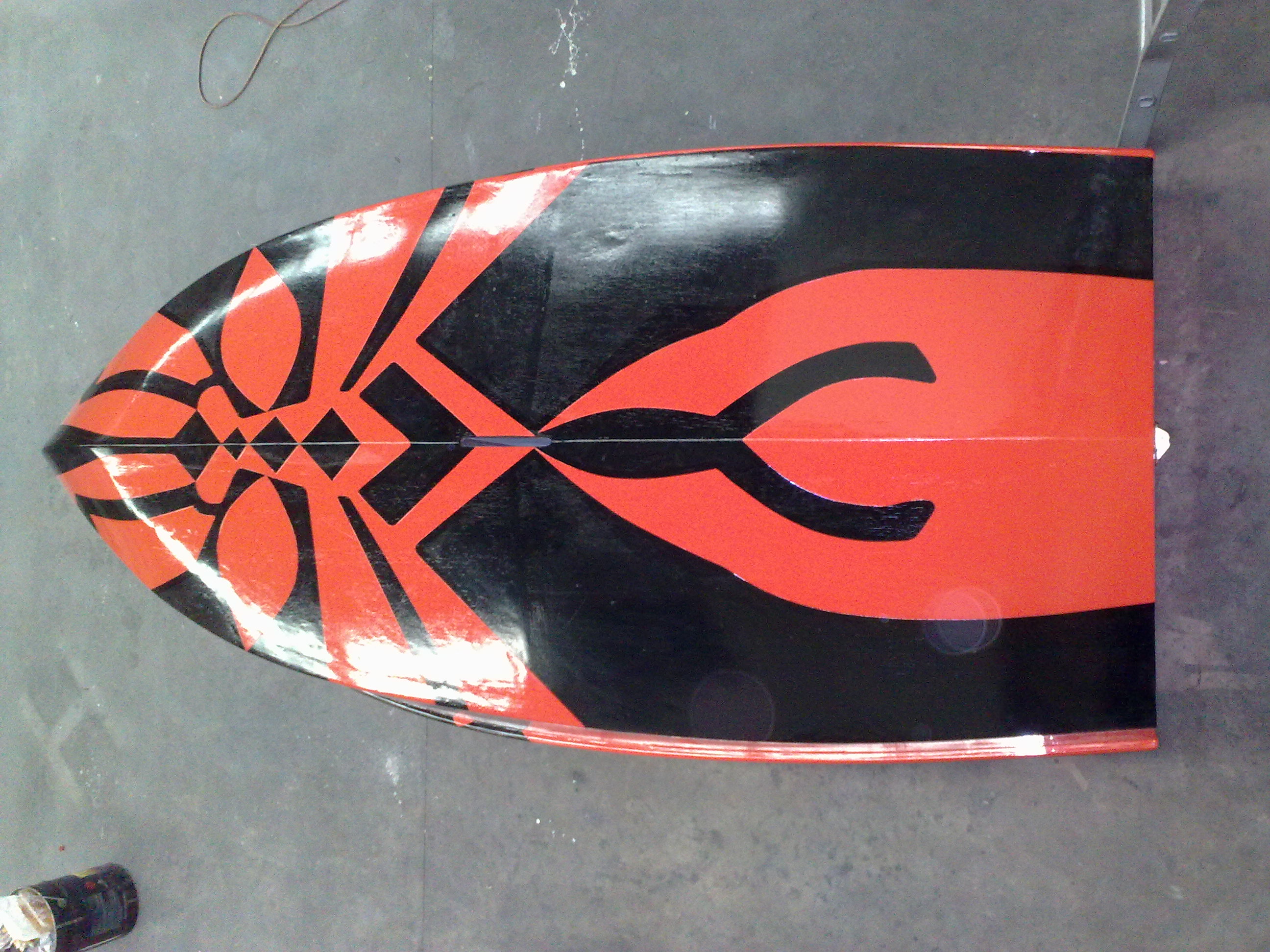

Masking removed, all is revealed!



post-5437-027126700 1303448262_thumb.jpg



post-5437-045575600 1303448304_thumb.jpg



post-5437-091807800 1303448379_thumb.jpg



post-5437-083909600 1303448430_thumb.jpg



post-5437-050172700 1303448472_thumb.jpg



Rudder hinges fitted.



post-5437-019296000 1303448510_thumb.jpg



Plastic oar lock mounts fitted & sikaflexed.



post-5437-010533000 1303448549_thumb.jpg



Rudder fitted to cassette.



post-5437-018951500 1303448644_thumb.jpg

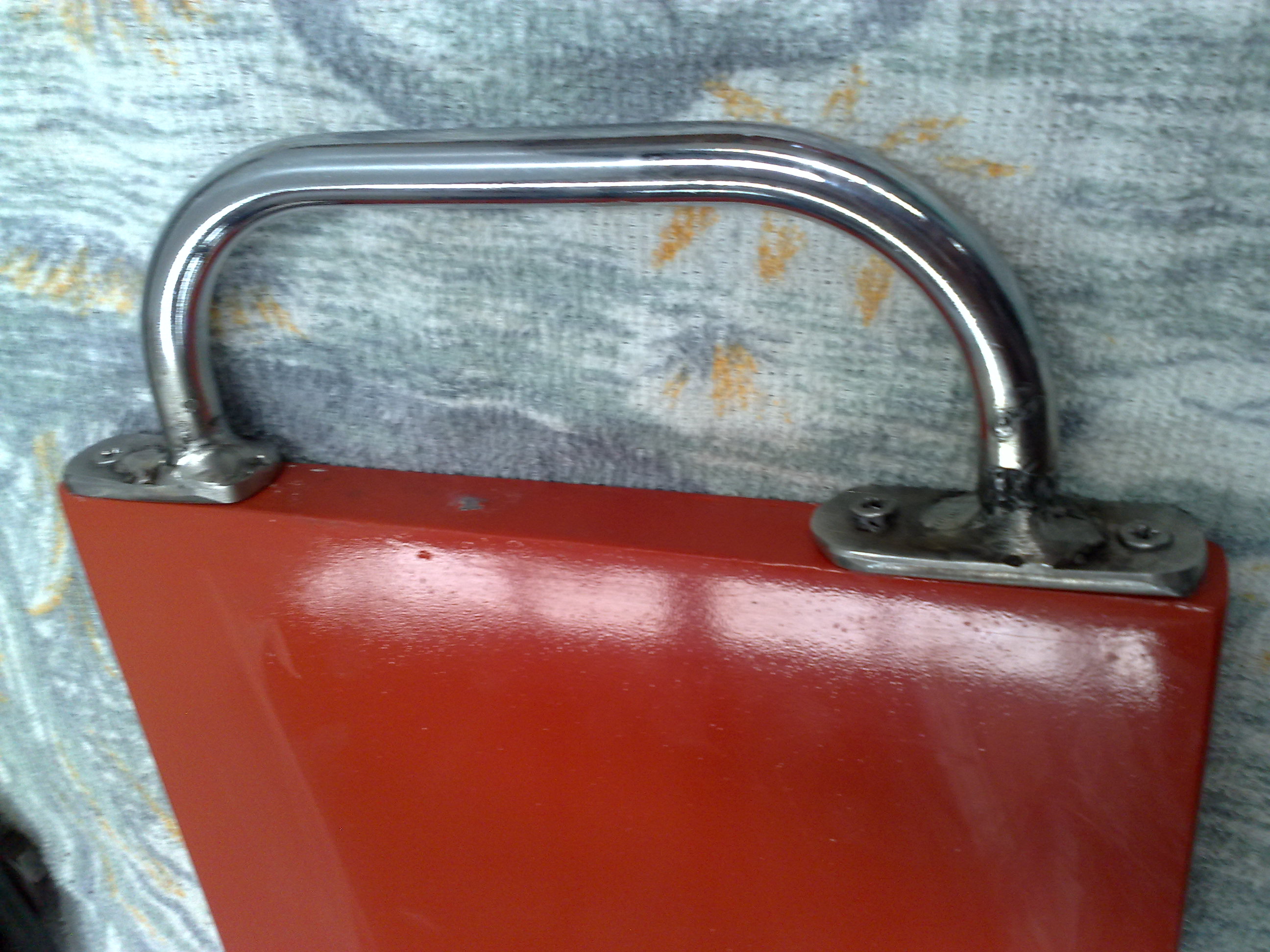

Me learning stainless welding to make a handle for my centreboard.



post-5437-013027700 1303448703_thumb.jpg



Getting towed home after painting for further fitout. Boss wanted more space in the workshop lol.



post-5437-040916700 1303448831_thumb.jpg

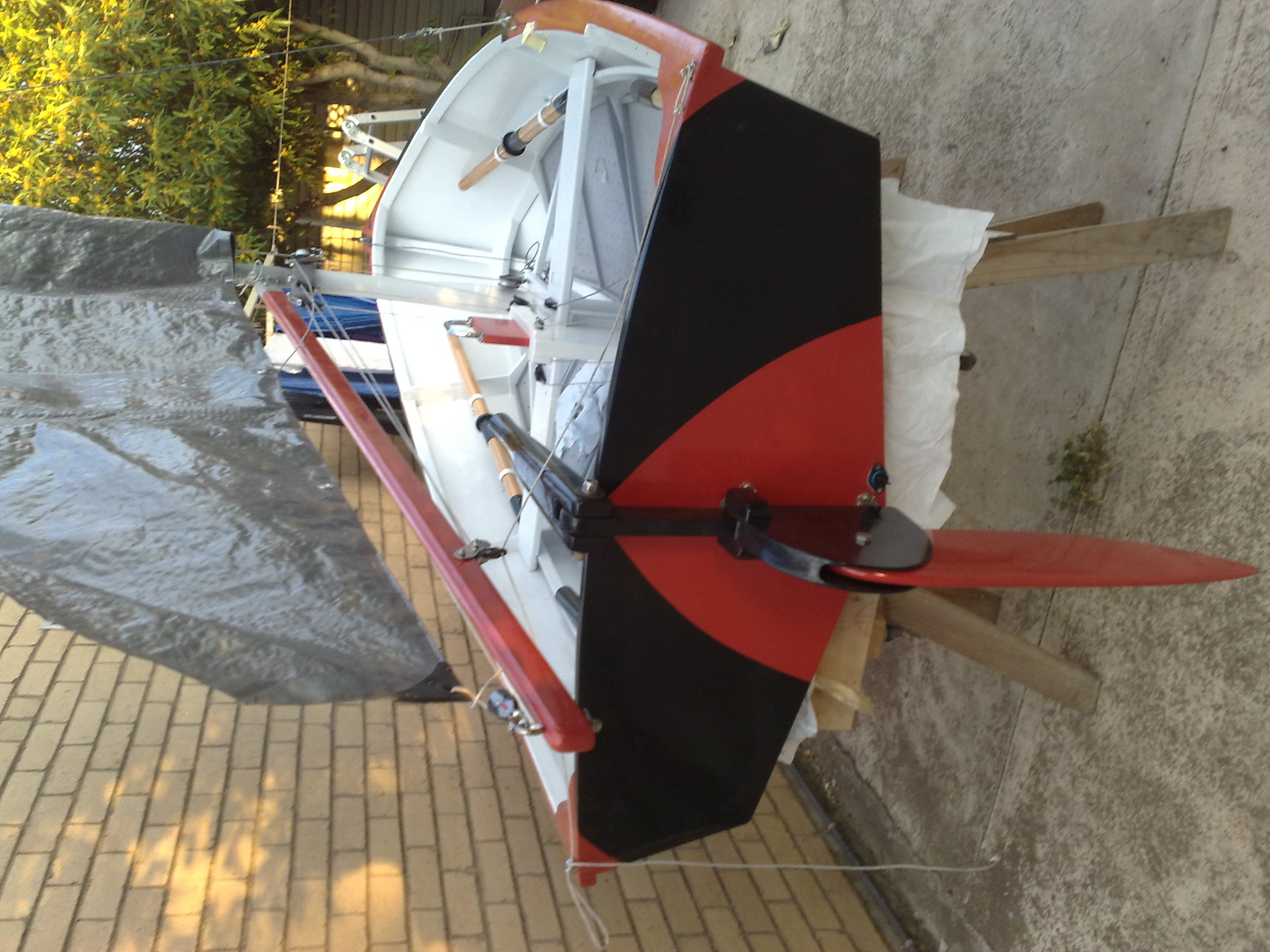

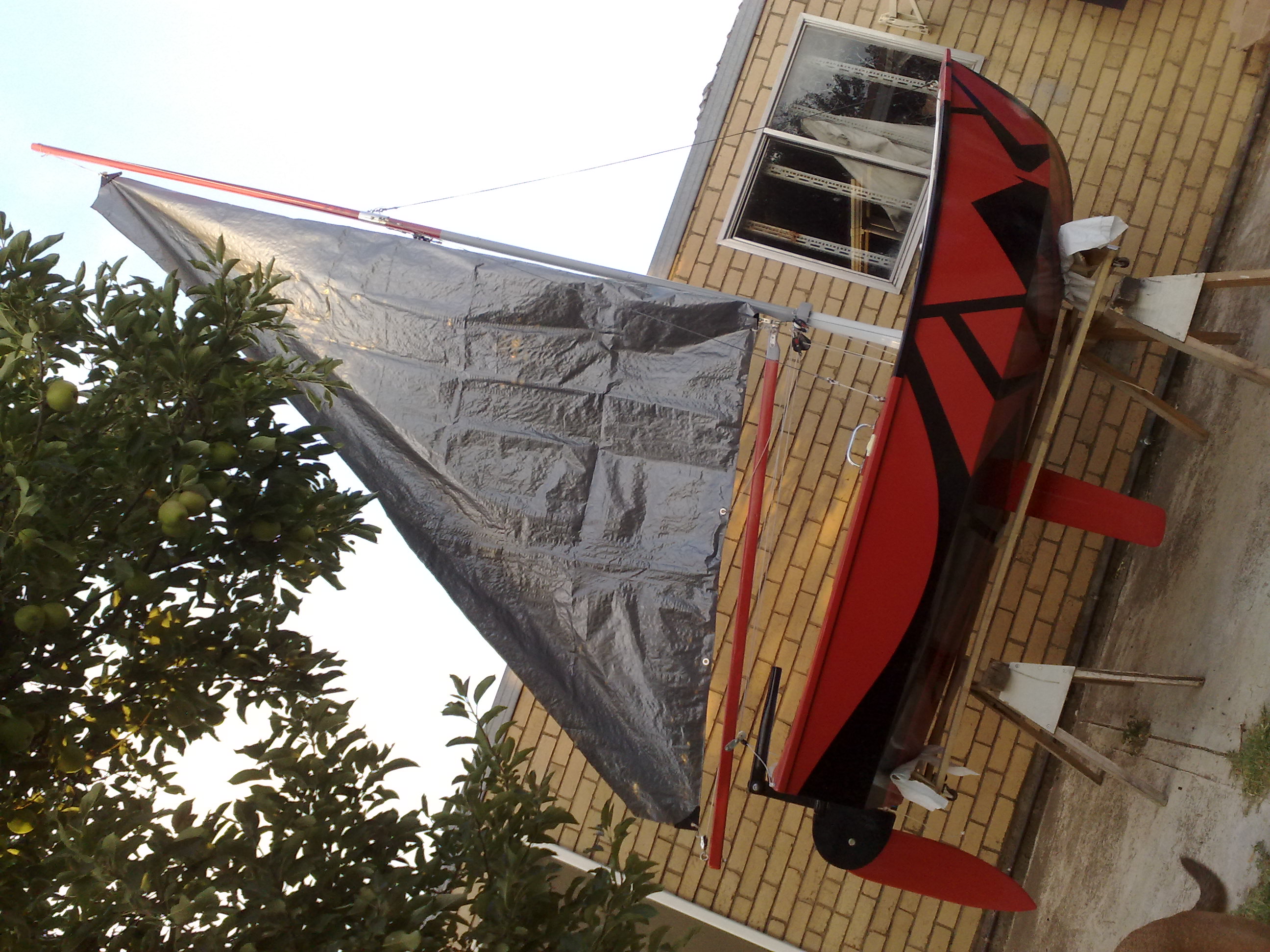

Getting her rigging sorted & final fitout.



post-5437-069757700 1303448912_thumb.jpg



post-5437-060699500 1303448960_thumb.jpg



post-5437-004334600 1303448996_thumb.jpg

Link to comment
Share on other sites

Unfortunately it hasnt been in the water even once yet :laff: Due to getting sidetracked on other projects it kinda just sat around for a while. Since having moved house I havent had the room for it so its currently sitting in storage in the garage at my parents place. Sad I know, but once the car's finished it'll be hauled out again.



post-5437-009836900 1303449186_thumb.jpg

Edited by carbonboy
Link to comment
Share on other sites

that is so cool :y: does it float :hmm: ?



Thanks man, umm I haven't actually put it in the water yet...in theory, yes.



Nice work on the boat. That represents a lot of hours.



Cheers, it has been a few but I didnt keep a log so I can't say for sure. By the time we got through the theory/practice work of the course we'd used up about 16 of the 42 8hour days we had to build it & therefore pass the course. So there wasnt time to muck about.



Very nice work man.



Thanks man, it was for the love! :y:

Edited by carbonboy
Link to comment
Share on other sites

Wow, that's looking heaps good! I've got a little boat which is sitting half finished out in my shed. This makes me want to go out and finish it.



Thankyou dude, it would be well worth the effort if you do. Finish it & I'll race ya! :wink:



I was liking it before the paintjob but that really looks good, shame some of it goes under the water. don't forget to give it a name on the side before the maiden voyage.



Some of it, most of it... :rolls: :laff:. I initially wanted to go the clear varnish route as even though its pine & plywood, it would still look nice with the right coating. Problems were: varnish needs regular maintainence & I'm lazy-ish, I'd added carbon/fibreglass reinforcements & not all the joins were up to a standard that I wanted people to see as I was just learning as I went along. Then the creative side kicked in :wink: :yes: If I ever build another, it'll be a clear varnish finish with a small outboard. Problem is, I hate going fishing!



I will be sure to have a name painted on her before the maiden journey, still not sure what it will be yet, thinking "SSBS". (Silly Sailing Boat Saga) Either way there will be a bottle of Passion Pop smashed over the bow once in the water & hopefully floating. (wrapped in plastic bags to catch the broken glass of course!)

Link to comment
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

Loading...

×
×
  • Create New...
