How To Fix Your Abysmal Headlights

Recommended Posts

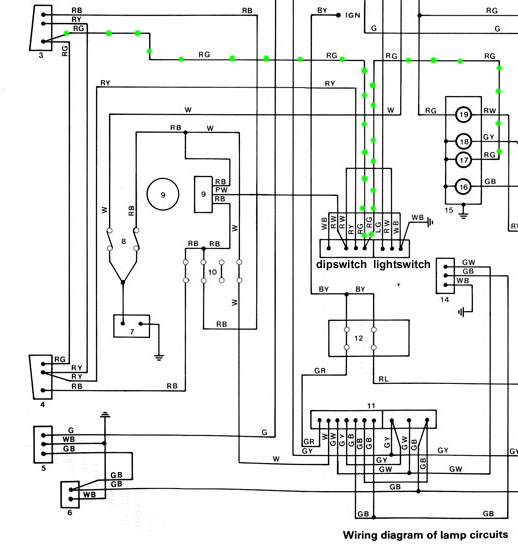

Here is the factory wiring diagram. The green dots show the low beam R/G wire has a junction at the dipswitch that goes off to the blue light. Flick to high beam and the power in the low beam wire goes through the blue light.

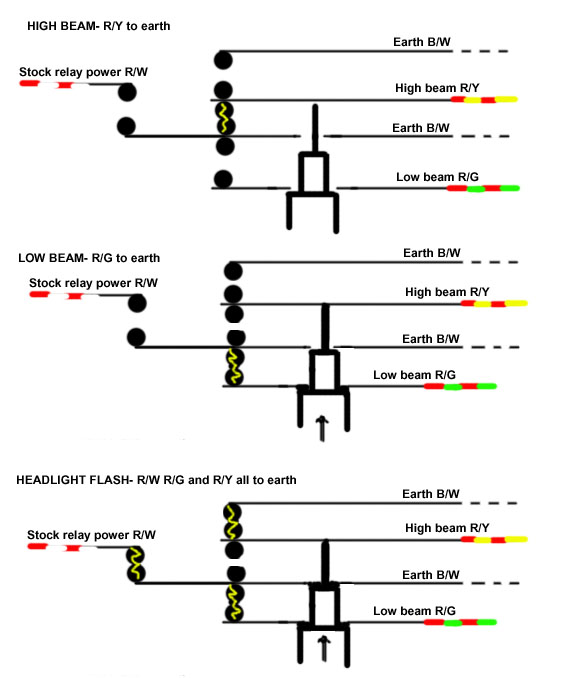

Now, inside the dipswitch is a stack of copper fingers with contact buttons on, attached to the wires and controlled by a plastic column with steps on it. The fingers are drilled so they only get moved by some steps. In the 'rest' position, the lights are on high and power from the stock R/Y high beam is earthed. The column does nothing.



When you pull the dipswitch back towards you it pushed the plastic column forwards and lifts the high beam finger off the earth, simultaneously pushing the low beam R/G onto the other side of that earth finger.



When you pull it back again to flash your lights, even though they are not turned on, it earths BOTH sets of lights AND connects the stock headlight relay to earth which powers the lights.



If it goes wrong, it can be fixed, although be careful of the plastic getting brittle.



One other thing I found.... there is an unused headlight connector behind the driver's headlight, and if you plug a 3rd headlight bulb into it THE BLUE LIGHT WORKS!



Share this post


Link to post
Share on other sites
Members dont see this ad
you need a good set of ratchet crimpers



True, but $140 is two tanks of gas & I'd probably never use them again. Like the ratchet ring spanners I'd like to have but can't justify buying...

Share this post


Link to post
Share on other sites

True, but $140 is two tanks of gas & I'd probably never use them again. Like the ratchet ring spanners I'd like to have but can't justify buying...



$110 is a more realistic price and they are well worth the money..

Share this post


Link to post
Share on other sites

I bought my set of ratchet crimpers from superhero for something like $24 or something and thirty are brilliant one squeeze and any connection is tight as a ticks ass highly recommend buying a set and while your there buy a decent set of write strippers aswell you will never look back

Share this post


Link to post
Share on other sites

Just to update.. nowdays these are what we are using, and great value for money. Does the same job but much neater!



http://www.ebay.com/...SxVVEfx&vxp=mtr

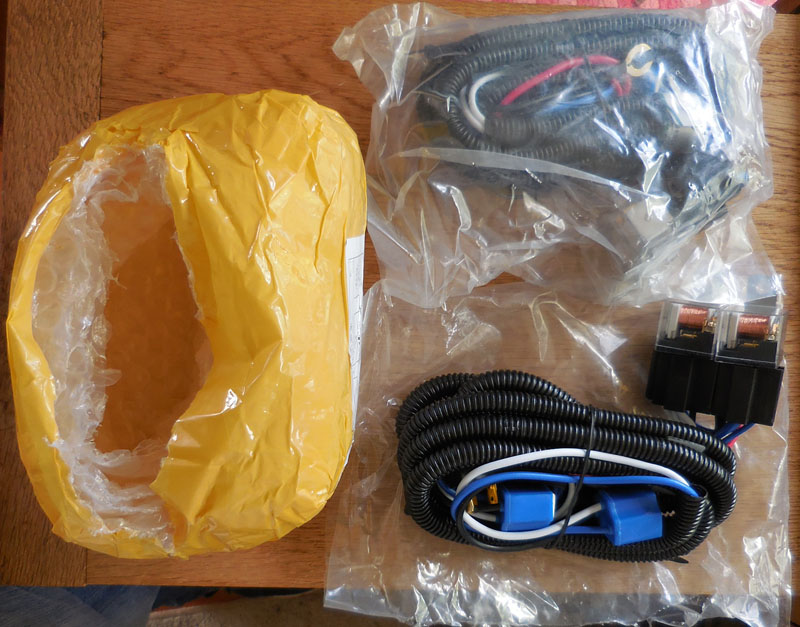

So a headlight relay wiring hardness, it comes with a fuse, two relays, bulb plugs and power wiring for $20US incl shipping.



Here's a pair of them Steve & I bought for the Corollas.
