ke30kb Posted June 26, 2014 Report Share Posted June 26, 2014 Just got my dash back from getting re-vinlyed, I installed the clusters. - Speed, Petrol and Heat signal active - Park brake light and indicators lights active - Speed backlight and the backlight for the petrol are out? All the connections are in the back correctly, what could be wrong? Quote Link to comment Share on other sites More sharing options...
Banjo Posted June 26, 2014 Report Share Posted June 26, 2014 Hi Kai, Are you using LED replacement globes by any chance. If so, then the ones that are not working could be back to front, as they are polarised, whereas a normal globe is not. If they are LED globes, then take the ones out that are not working & rotate them 180 deg, and they should work. Cheers Banjo. Quote Link to comment Share on other sites More sharing options...
ke30kb Posted June 26, 2014 Author Report Share Posted June 26, 2014 Hi Banjo, Thank you for your response, I actually haven't changed the globes at all however, swappedthem with the working ones to see If they were blown. Is there a fuse for them? Quote Link to comment Share on other sites More sharing options...
Mechanical Sympathy Posted June 27, 2014 Report Share Posted June 27, 2014 May be a silly question - but have you checked whether the instrument dimmer knob is turned down? Once I "fixed" a girlfriend's Gemini by checking that... Quote Link to comment Share on other sites More sharing options...
ke30kb Posted June 27, 2014 Author Report Share Posted June 27, 2014 Yeah man one of the first things I checked, I'm going to replace all of my fuses fingers crossed Quote Link to comment Share on other sites More sharing options...
Banjo Posted June 28, 2014 Report Share Posted June 28, 2014 (edited) Hi Kai, There are only three (3) backlight globes on the KE30 dash. One either side of the speedo, and one to the lower right of the fuel guage. The one on the RHS of the speedo serves to light the temp guage. It is highly unlikely you have lost an earth, because the other warning lights are working. Does you fuel guage work, as it shares an earth with the dash backlight globes ? It sounds to me like there is an o/c on the printed circuit board on the back of the dash assembly. The trackwork is "narrowed" in some areas, so that it acts as a fuse if a bulb goes s/c. Have a close look at the pcb track work between each of the three (3) back ligh bulbs. There are three narrowing of the tracks. Cheers Banjo Edited June 28, 2014 by Banjo Quote Link to comment Share on other sites More sharing options...
ke30kb Posted June 29, 2014 Author Report Share Posted June 29, 2014 Hey guys, just noticed after installing my dash my acceptors lights aren't working either. Aircon back lights all dash lights are not functioning. Have replaced all fuses. Starting to really puzzle me Quote Link to comment Share on other sites More sharing options...

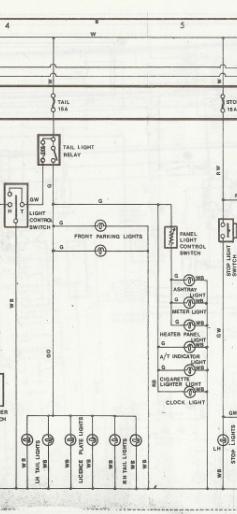

Banjo Posted June 30, 2014 Report Share Posted June 30, 2014 Hi Kai, Here is the part of the wiring circuit you should be looking at. All tail lights, front parkers & licence plate lights at the rear are fed via the 15A "TAIL" fuse & the lighting relay. The dash board lights are fed from the same source. If your tail lights and parkers are working, then the fuse & relay are working OK. If the dashboard lights are not working, it is most likely you have lost a main earth connection for the dash. Off memory it is a "white" wire, or a "white" wire with a black tracer line on it. The tail lights & parkers are earthed seperately, so that's why I think it is a common dash earth wire you've lost. Hope that helps. Let's know how you go. Cheers Banjo Quote Link to comment Share on other sites More sharing options...
ke30kb Posted July 3, 2014 Author Report Share Posted July 3, 2014 Hey Banjo, You're 100% right, thank you for your feedback! All other lights are working as you've said. It has to be the dash earth! I've been searching high and low and still can't locate the bloody thing! Going to have another thorough look tonight! Quote Link to comment Share on other sites More sharing options...
Clapped out Posted July 3, 2014 Report Share Posted July 3, 2014 Food for thought, Positive battery terminal, has two main wires that power the whole car, possibly bad connection on one? Just weird that only half the stuff in your car is working, cheers! Quote Link to comment Share on other sites More sharing options...
ke30kb Posted July 3, 2014 Author Report Share Posted July 3, 2014 That's for the help guys, it did help. Made me pay attention to certain areas. It ended up being that the dimmer switch connection was cactus. Once replacing that, the lights came on. Did a voltmeter check and found it had no power to it! Quote Link to comment Share on other sites More sharing options...
