Disc Specs for the KE10 - KE70 Front Brake Upgrade

rollababe09 · January 9

Hi all.

I was hoping to get some help on this. I'm trying to follow the upgrade guide on here

https://www.rollaclub.com/wiki/index.php?title=Ke10_Disk_Brake_Conversion

There's no info I can find about which KE70 discs to use. Can anyone shed any light on this? Or have measurements from their own KE70 discs they fitted?

So far I have KE55 GIRLOCK backing plates & calipers I bought from OZ some years back when on holiday. I'm in NZ

Still need to sort KE70 Hubs and Rotors

Thought its about time I sort out the KE70 parts for this upgrade

I've checked with a wrecker of old Toyota parts, he asked which model KE70, IDK...

I've done some checking and there seems to be multiple rotors listed for the KE70. So far I've got 3 numbers that come up from Toyotas own listings. But no specs.

43512-12100 (79-83)

43512-12070 (79-83)

43512-12190 (83-87)

Managed to find some info from aftermarket part#s

DI-212 (228.4mm OD, 32mm Height, 11.5mm Min, 12.5mm Max) $16euro each https://spareto.com/products/japanparts-brake-disc/di-212

DF1915 (229mm OD, 31.5mm Height, 64mm ID, 11.5mm Min, 12.5mm Max) https://spareto.com/products/trw-brake-disc/df1915

(These 2 might be listed for the 79-83 years)

DF7533S (81-88) $52.45+ea

Size: 218mm OD, 64mm ID Hole, 11.5mm Min , 12.7mm Max, 30mm Height)

and found this listing for KE55

DI-218 (217.6mm OD, 30.3mm Height, 9mm Min, 10mm Max)https://spareto.com/products/japanparts-brake-disc/di-218

Any info would be appreciated! Thanks 🙂

altezzaclub · January 9

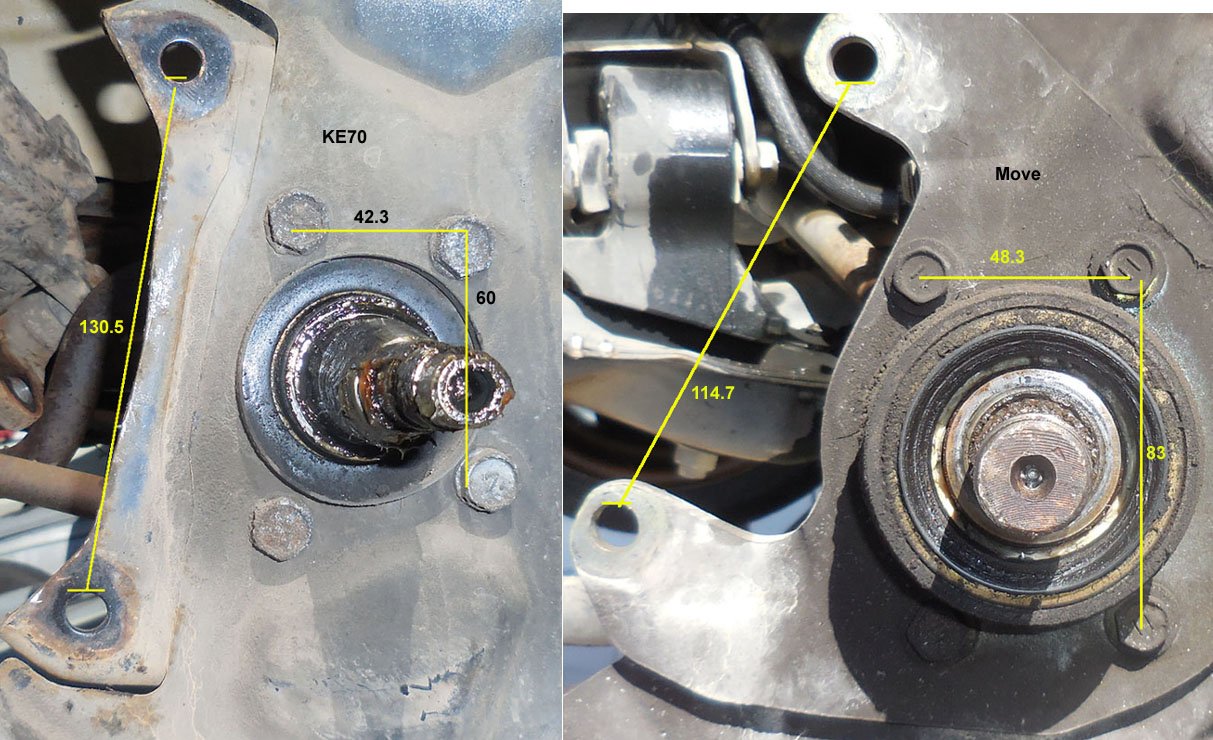

Here's the dimensions I measured off my 1983 slanty when I converted it to Diahatsu Move vented discs. They would be the $52 discs at 218mm. I wonder if the 229mm ones are on AE86s. The longer life ones, 83-87, are on wagons & vans. They stopped making KE70/AE71 in 83.
