foodrap Posted July 5, 2018 Author Report Share Posted July 5, 2018 Quote Link to comment Share on other sites More sharing options...

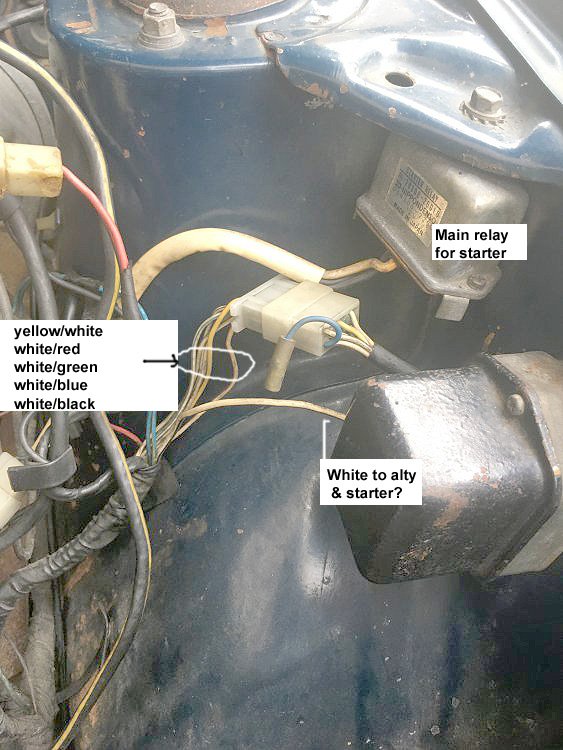

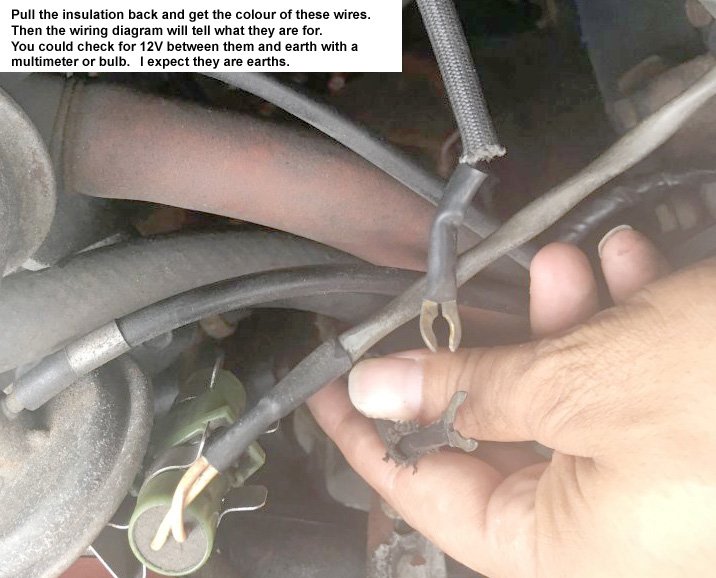

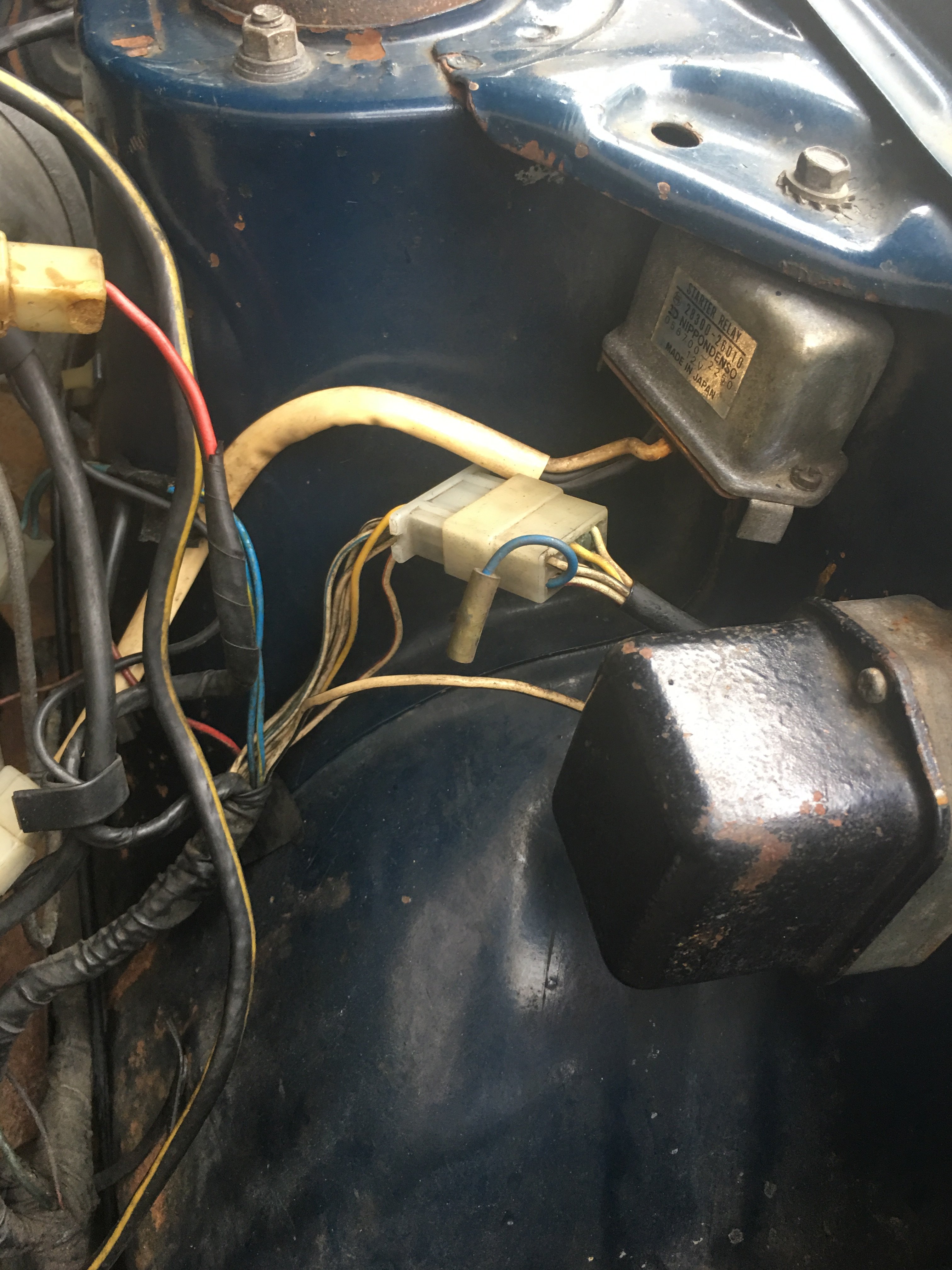

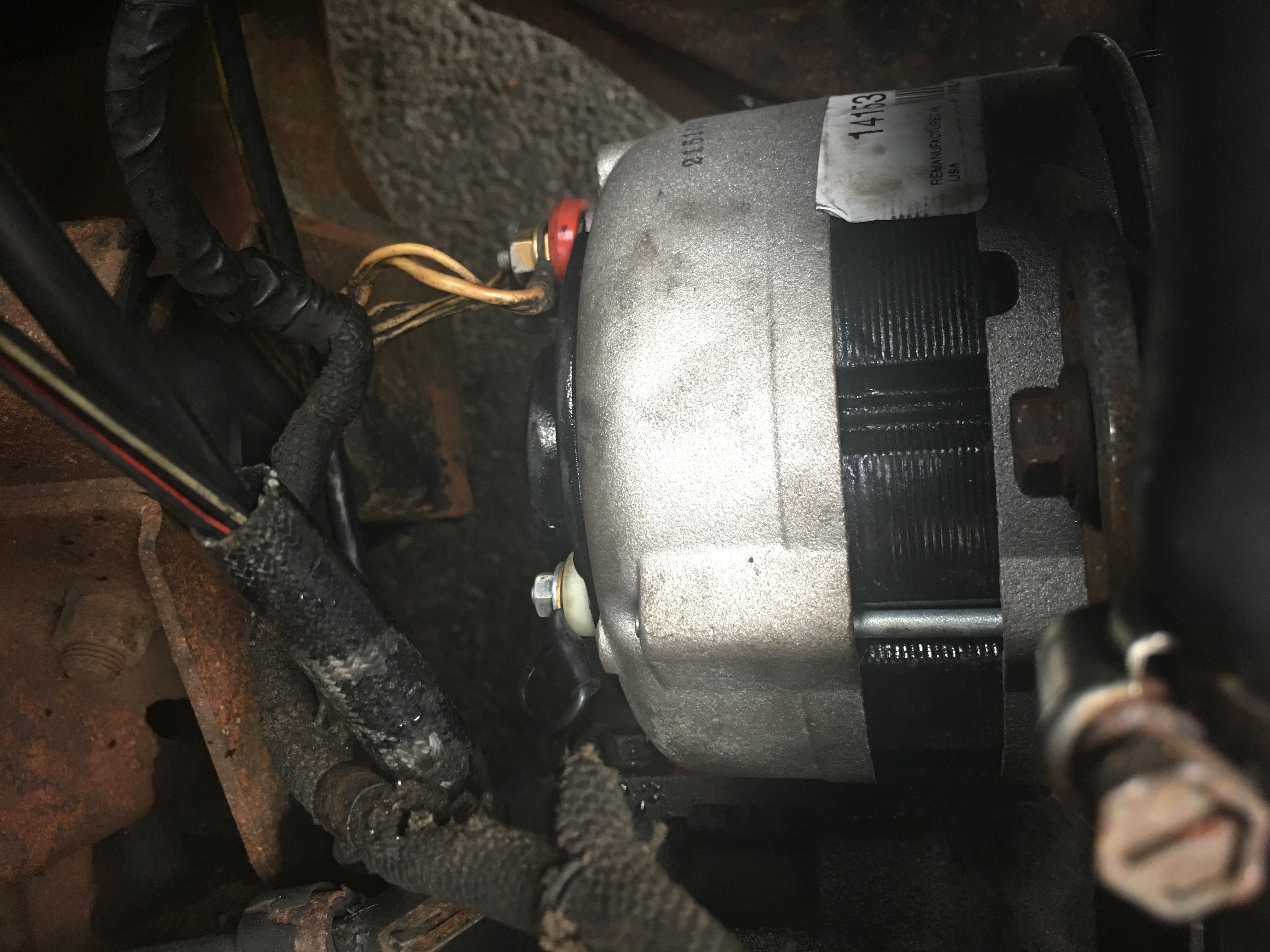

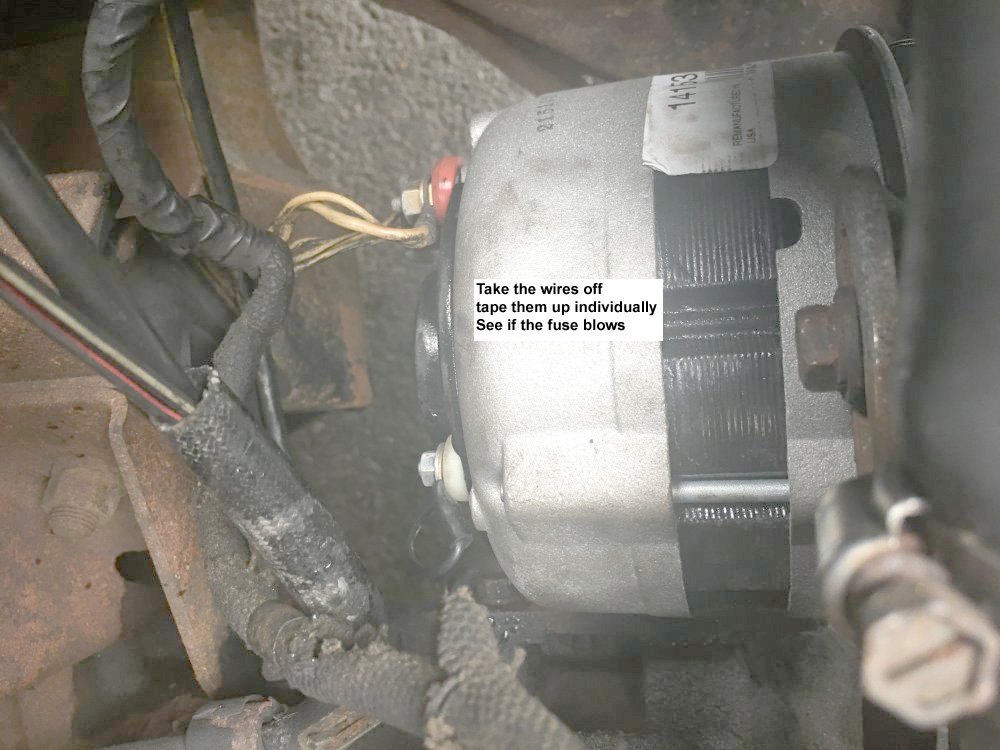

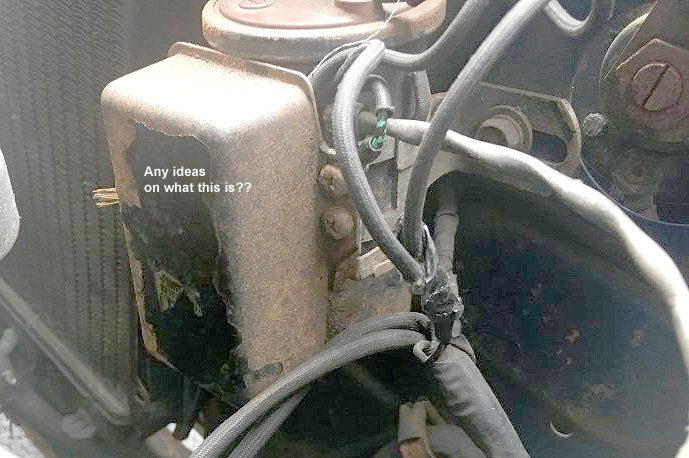

altezzaclub Posted July 5, 2018 Report Share Posted July 5, 2018 OK, here's a better diagram, off the KE17 but it looks the same. Mainly, you can read wire colours off it, which generally on the web you can't. Take the wires off the alty and tape each wire up separately so they can't short out. Check the wire colours on the regulator & unplug that. See if the fuse blows with those two things disconnected. Pull the insulation back on these & see the wire colours. I don't know what this box is for. Any ideas anyone? Quote Link to comment Share on other sites More sharing options...

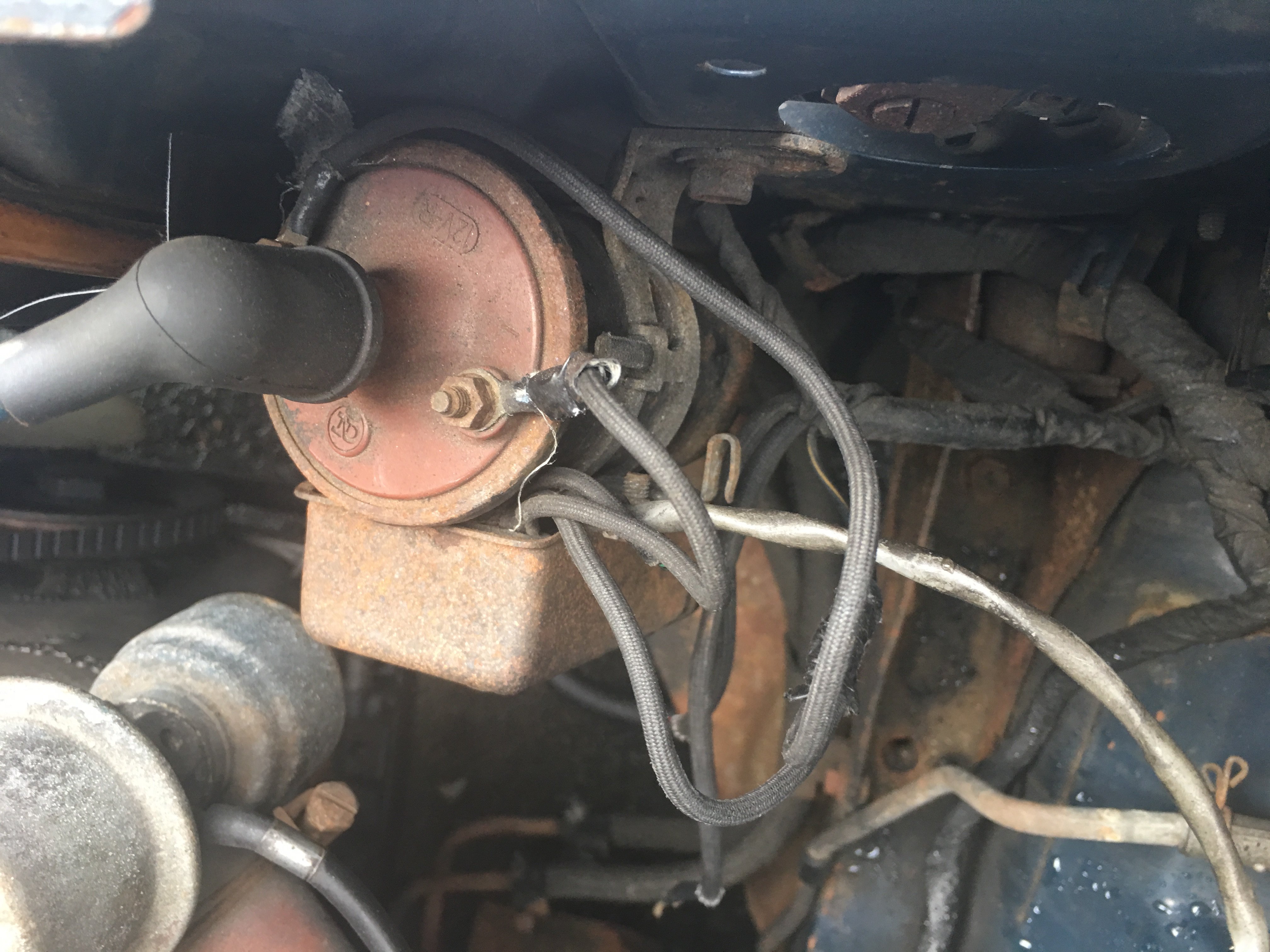

Big G Posted July 5, 2018 Report Share Posted July 5, 2018 I am guessing that metal box on the coil is a housing for the ballast resistor. The second pic of the coil shows the cables coming out of the box and onto the terminals of the coil. The only problem with that idea is there no ballast resistor on the wiring diagram? Quote Link to comment Share on other sites More sharing options...
altezzaclub Posted July 5, 2018 Report Share Posted July 5, 2018 Yes, and the coil is a 12V, so it doesn't use a ballast. Some sort of relay? Quote Link to comment Share on other sites More sharing options...
foodrap Posted August 19, 2018 Author Report Share Posted August 19, 2018 So the cars been back on the road and running smoothly thanks to God. Mechanic called in his Dominican buddy who took a day on it and went back to DR before I got a chance to ask him what it was. We spoke on the phone for a second and he s said it was wired wrong. Couldn’t say much more in the few minutes we spoke. So thankfully with all your guys help and then diagrans I printed out and left for him I think it made a world of difference. Thanks a bunch. Quote Link to comment Share on other sites More sharing options...
Banjo Posted August 22, 2018 Report Share Posted August 22, 2018 Hi Christopher, Glad it all worked out OK in the end ! Quote We spoke on the phone for a second and he s said it was wired wrong. Would be nice to find out what was the wiring error. If you ever talk to your DR mate again, please find out, what it exactly was, & let us know here. Quote Thanks a bunch. You're welcome ! We all here like a happy ending, & another Rolla keeps on rollin ! Cheers Banjo Quote Link to comment Share on other sites More sharing options...
foodrap Posted August 26, 2018 Author Report Share Posted August 26, 2018 Question does anyone have a fuse box cover? In need desperate need. Lol. Cheers Quote Link to comment Share on other sites More sharing options...
altezzaclub Posted August 26, 2018 Report Share Posted August 26, 2018 What's it look like?? A long straight one like Banjo's post?? 8 or 10 fuses?? I can have a look at the wrecker, but they are only KE35 & KE55. They've gone to 2-rows wide by then I think. Another chance may be at Woolshed Rallying on the old Coronas lying around, I'll be up there next week for a look if you can tell me what shape I'm looking for . Quote Link to comment Share on other sites More sharing options...
metasac Posted March 25, 2019 Report Share Posted March 25, 2019 Hey fellas sorry to intrude. First of all, let me say that I'm happy that this is still a live forum and we haven't all abandoned such forums for FB. I'm the US and have a TE21 w/ a 1.8 3TC. While y'all are on topic of guessing what certain electrical boxes do - can anybody tell me what this thing at the base of my fuse block is? It started buzzing recently - no doubt due to a short I created by daring to *touch* a bundle of wiring - and I unplugged it. Everything still seems to work, including starter, flashers, wiper, and all lights.... Quote Link to comment Share on other sites More sharing options...
altezzaclub Posted March 25, 2019 Report Share Posted March 25, 2019 Looks like a relay. Get the wire colours that go into it and check a wiring diagram for their function. Quote Link to comment Share on other sites More sharing options...
