Ke26 restomod project


wenisman

Recommended Posts

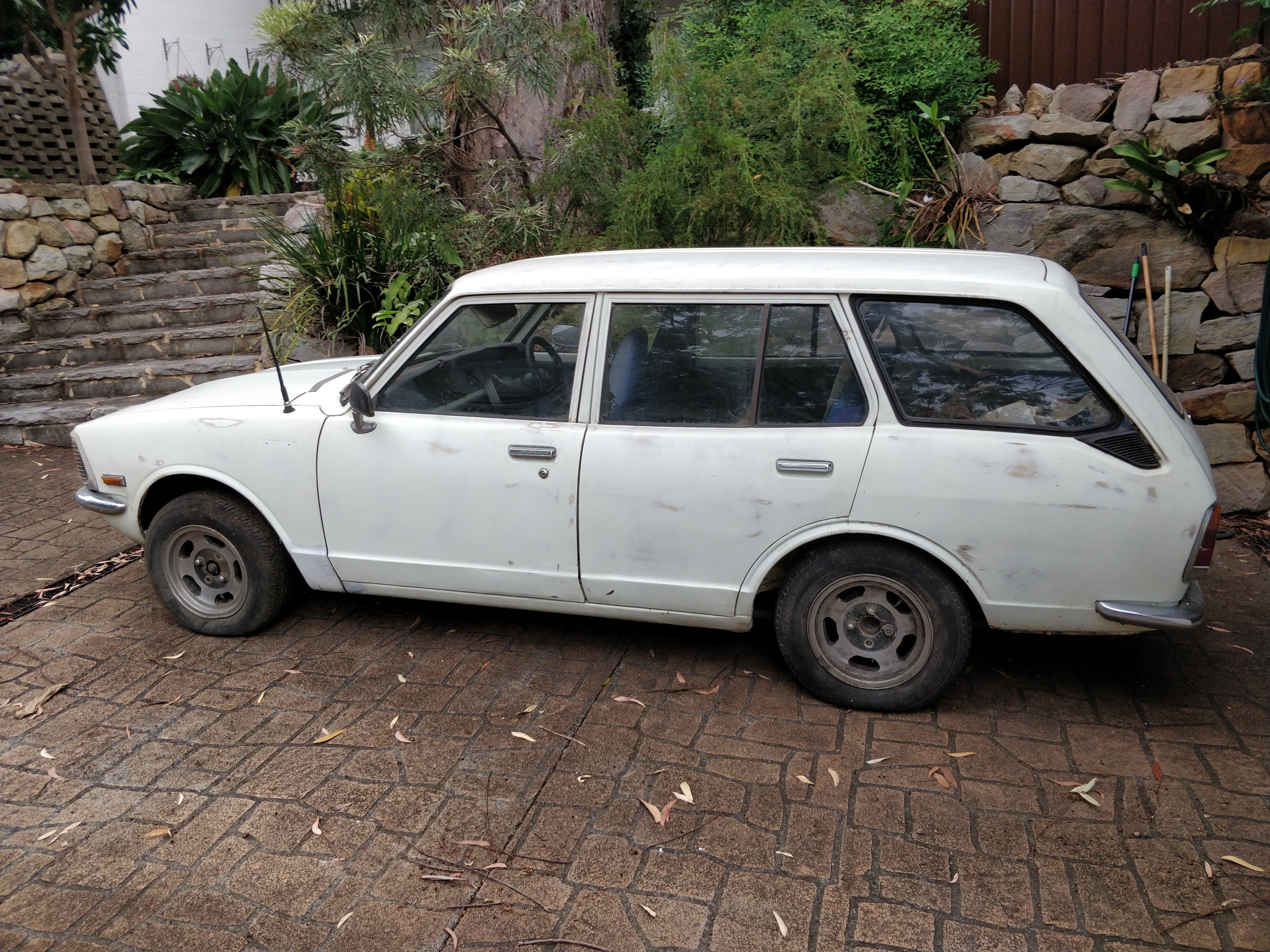

So I have finally started on the restoration project for an 1974 Corolla ke26 wagon. He is affectionately called Kevin.


Anyone please feel free to ask questions and I'll try to answer then as best I can.



But I have started stripping the basic panels from the car. They have been acid dipped and coated in kephos to keep the rust at bay for now.

Link to comment
Share on other sites

Members dont see this ad

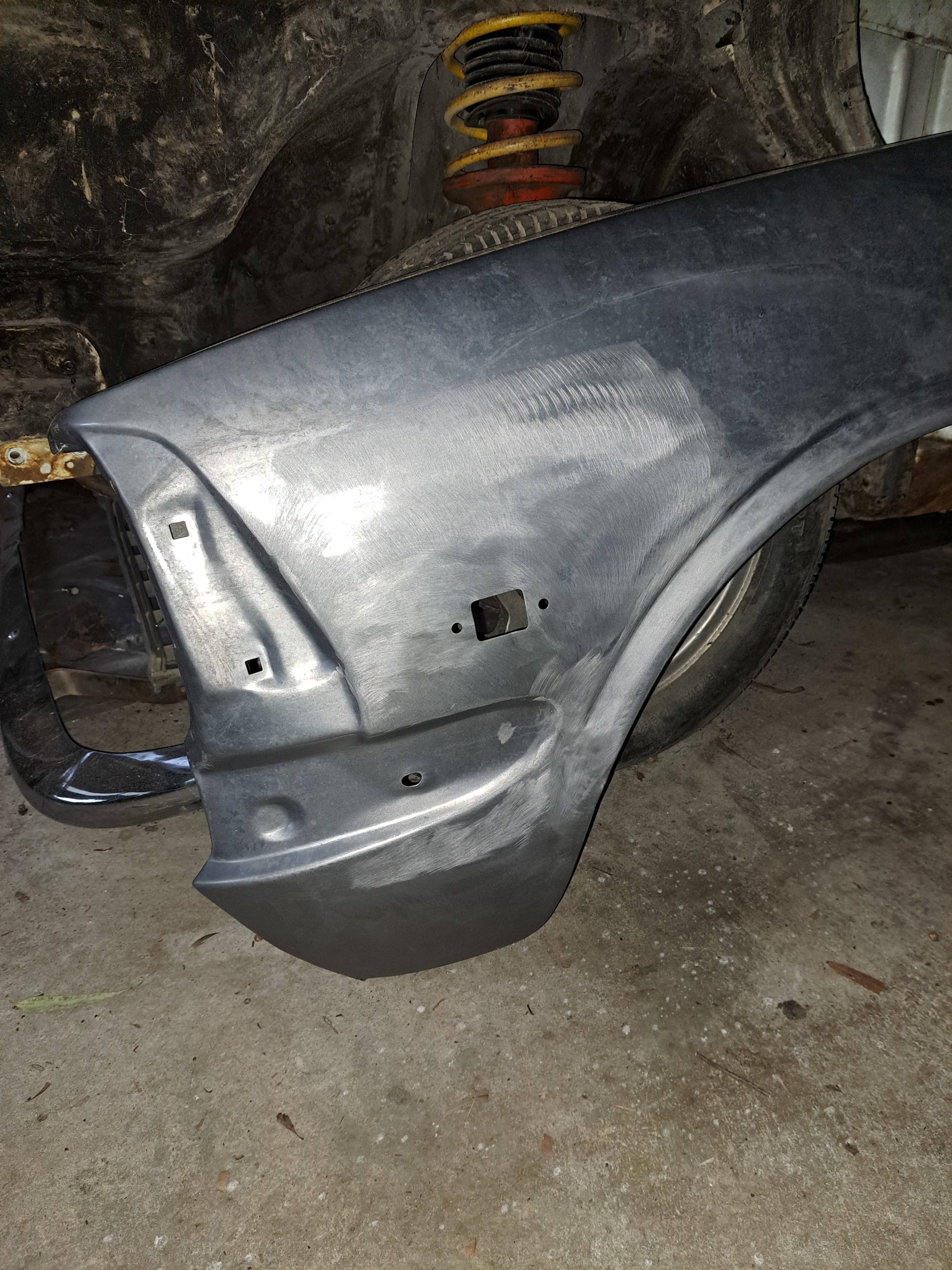

The first panel to be restored was the passenger side fender, it was rusted and filled will big from an previous accident. But after a few minutes with the rubber mallet she was mostly straight20220613_065113.thumb.jpg.b6b90583a96bc1fd267ebf1c9c0f7d07.jpg

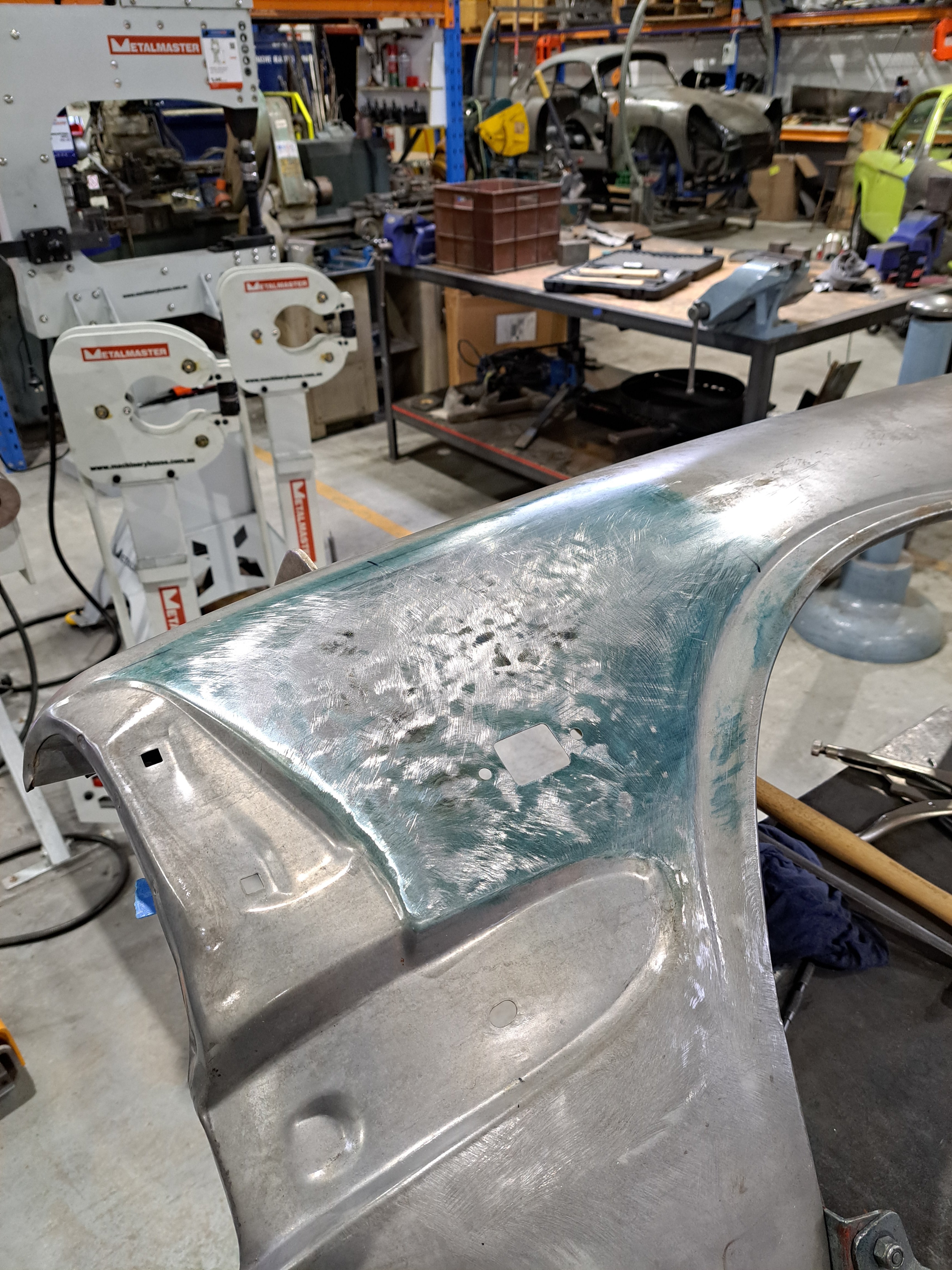

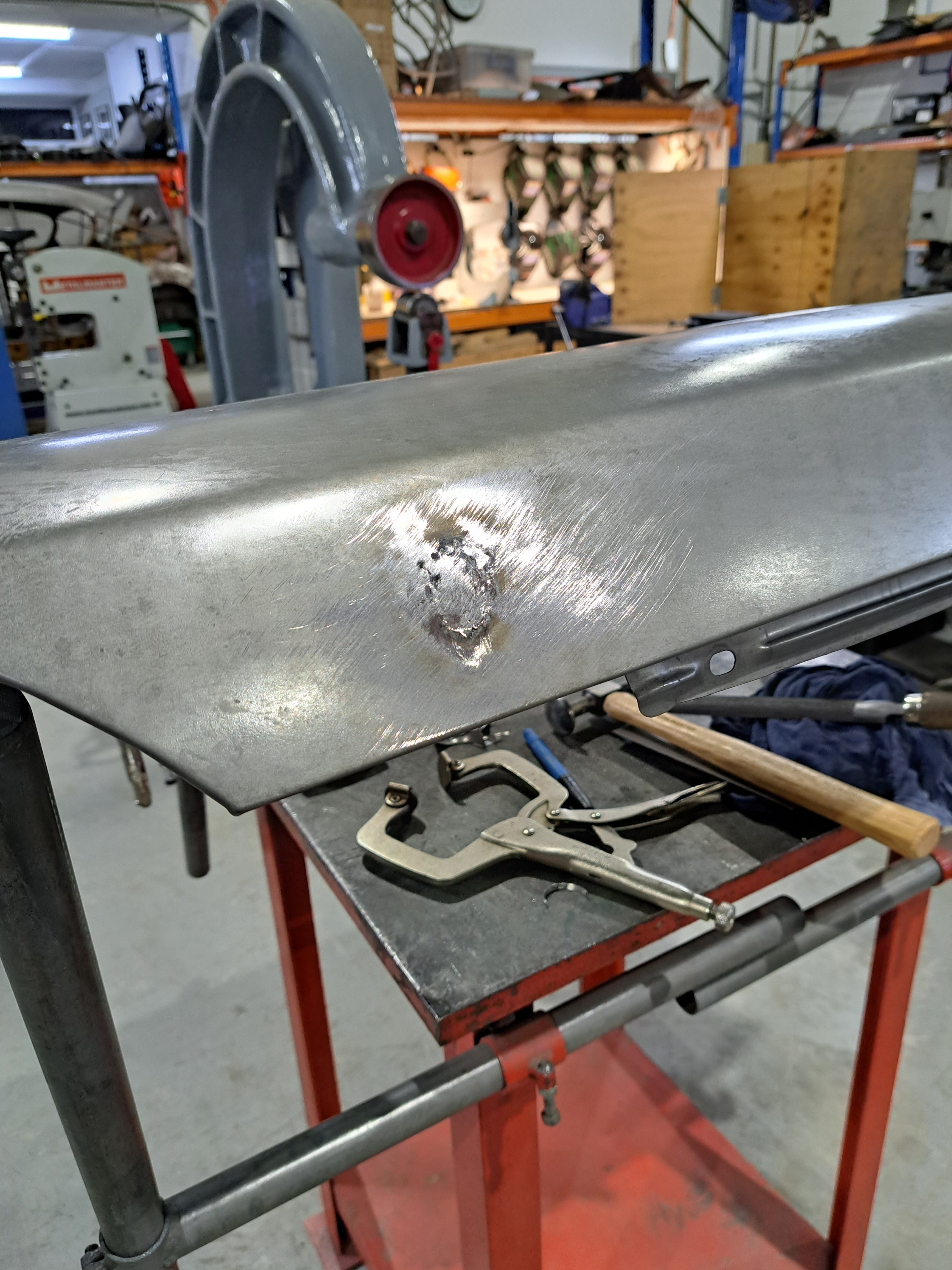

But taking it further I matched the contour from the drivers side fender which required heat shrinks to bring it back into line. It is now file finished on the damaged section




Link to comment
Share on other sites

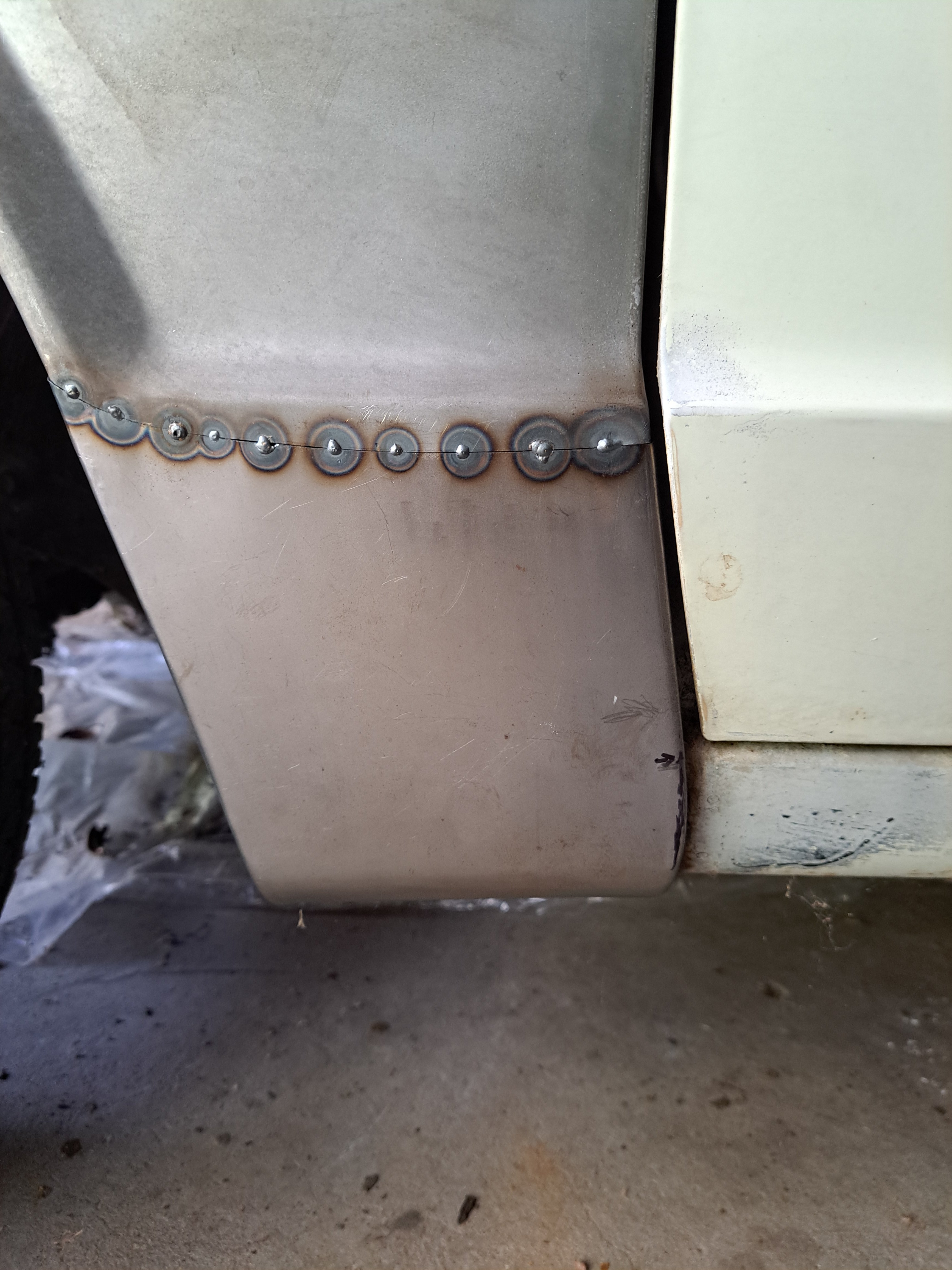

The fender then needed the sheet metal work. the old aerial hole got welded up, it was a pretty nasty hole but it got welded up and once again file finished.

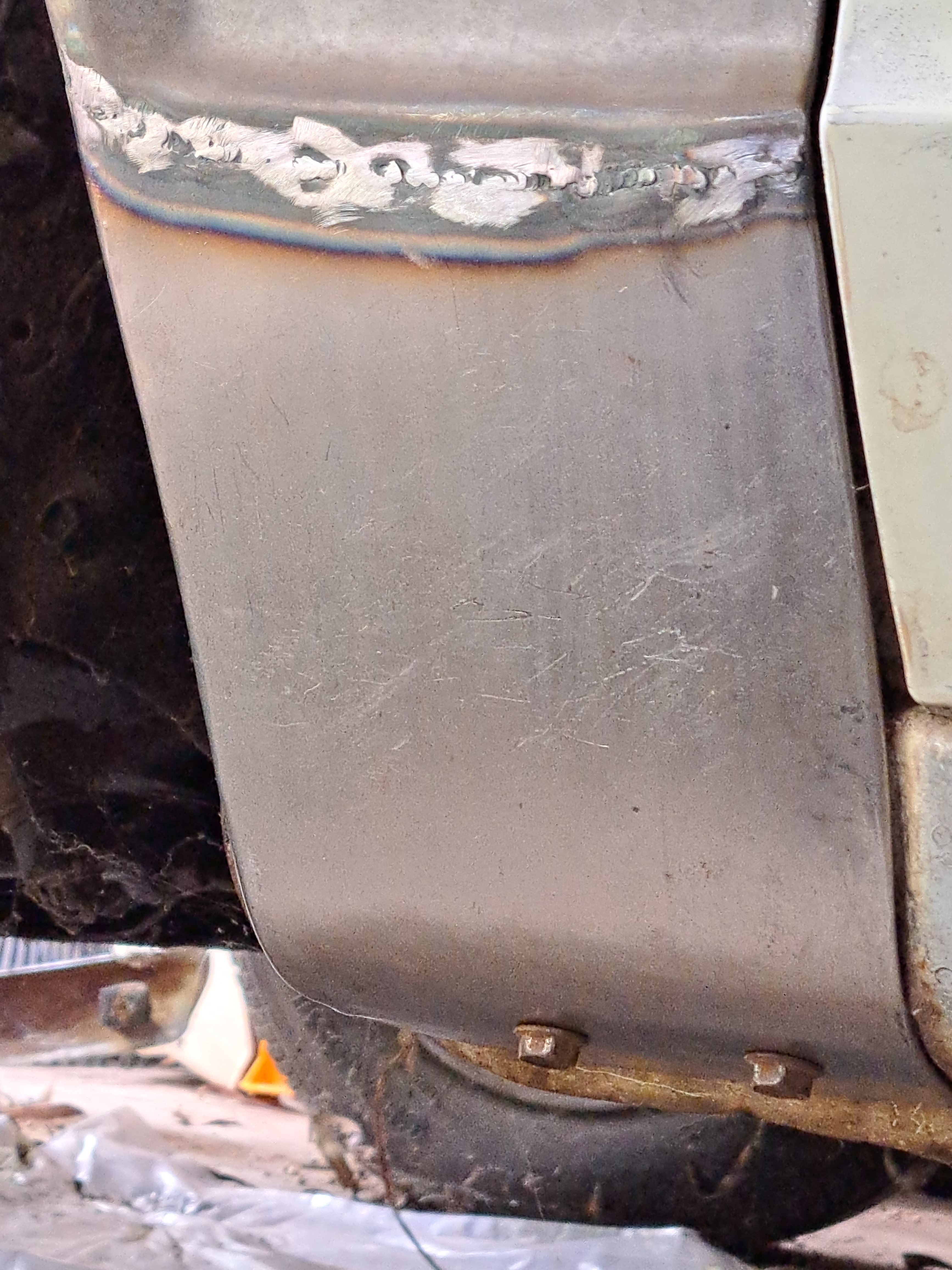

The bottom off the fender behind the wheel was completely rusted out, I tried to get the fender patch panel from rare spares but they weren't in stock. So with some CAD (cardboard aided design) I cut a new peice from 0.8mm steel. Put it through the English wheel, the slip roller to get the right curve, then the swager to get the fold lips started.

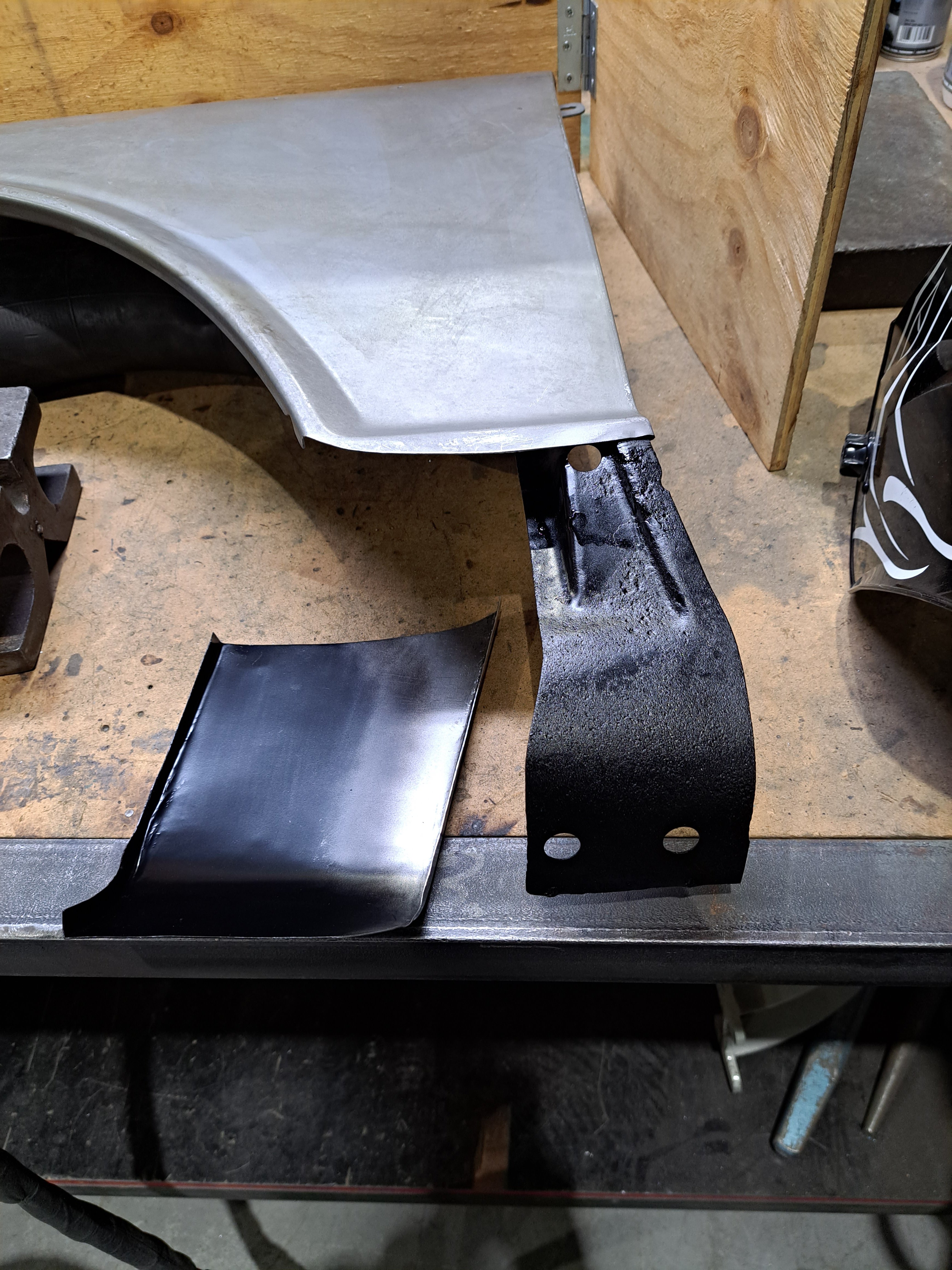

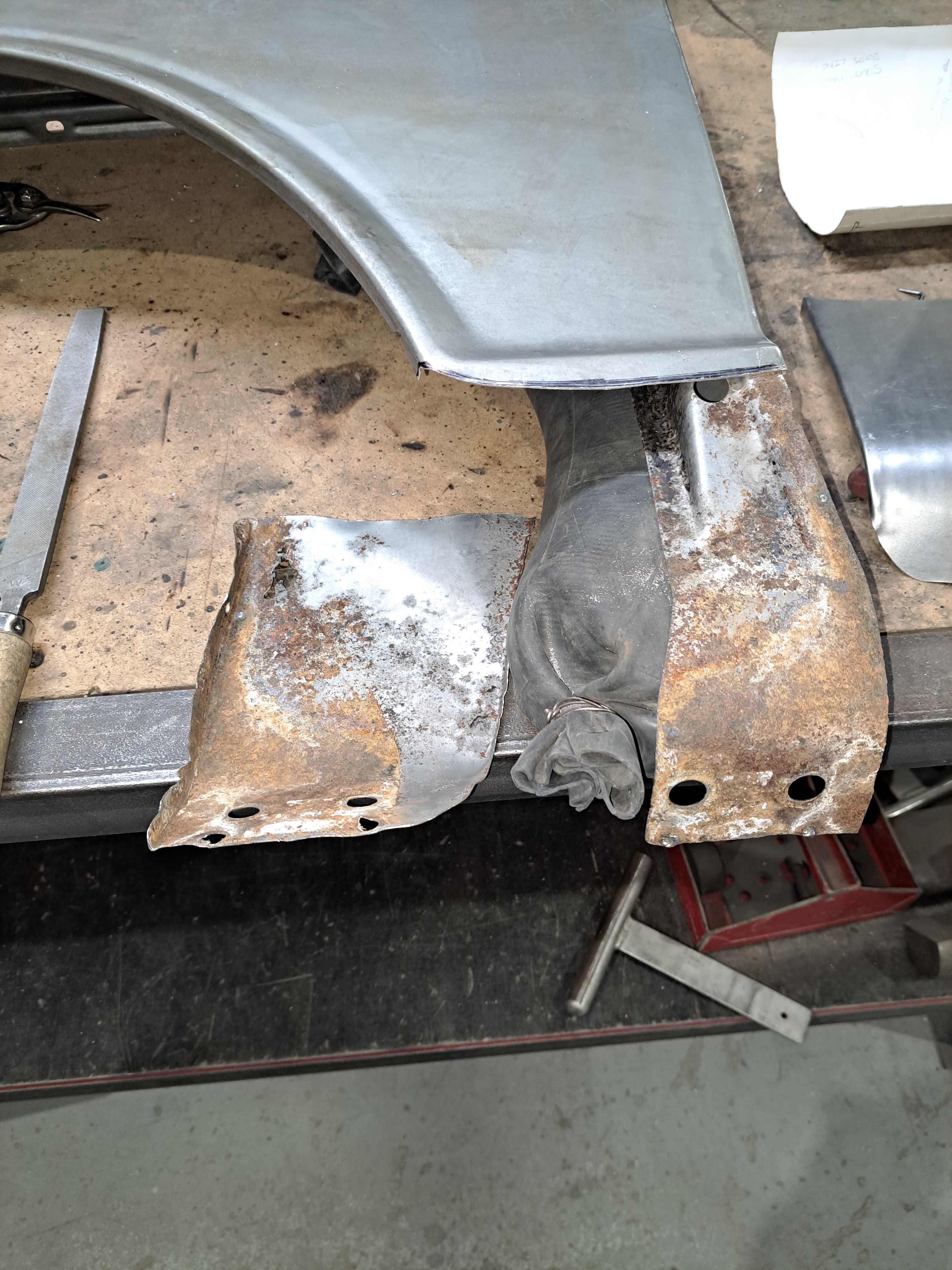

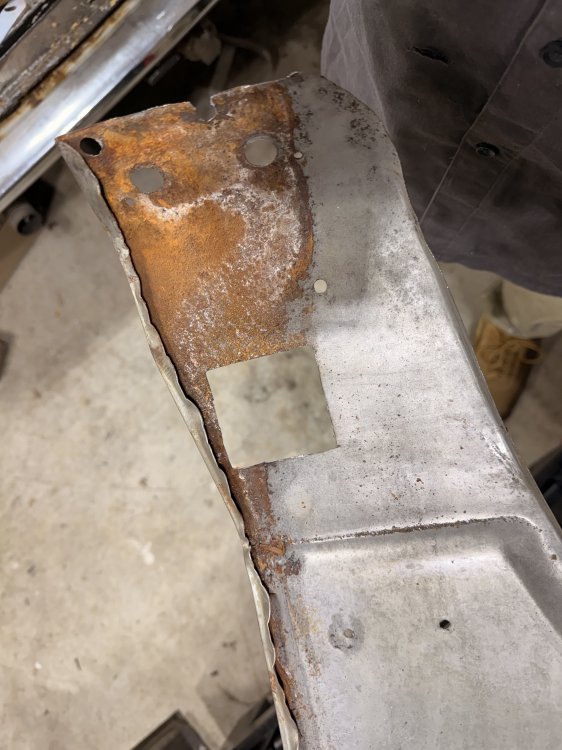

Once the old panel was cut off there was a lot of rust between the panel and the brace. So I sandblasted it and then applied some rust converter and weld through primer. 20221122_194619.thumb.jpg.fb3d8a7f01cd997c8f0b578e756f423d.jpg






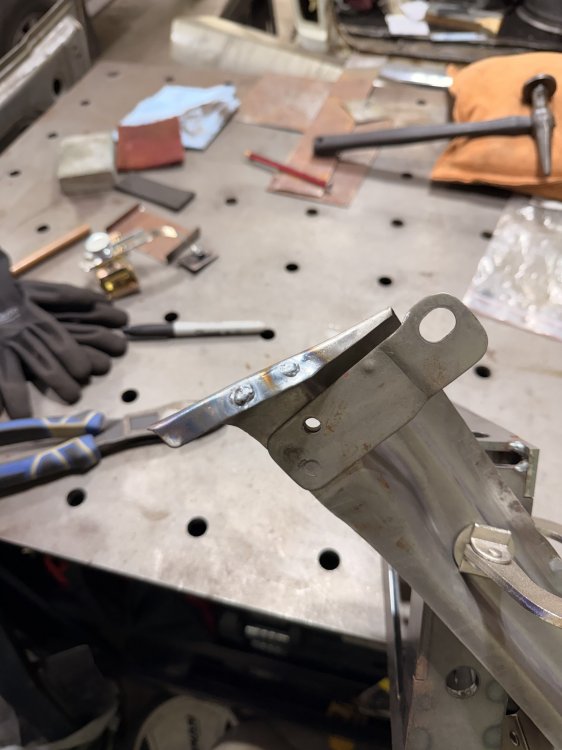

And then tacked in place whilst I test fitted it back to the car.


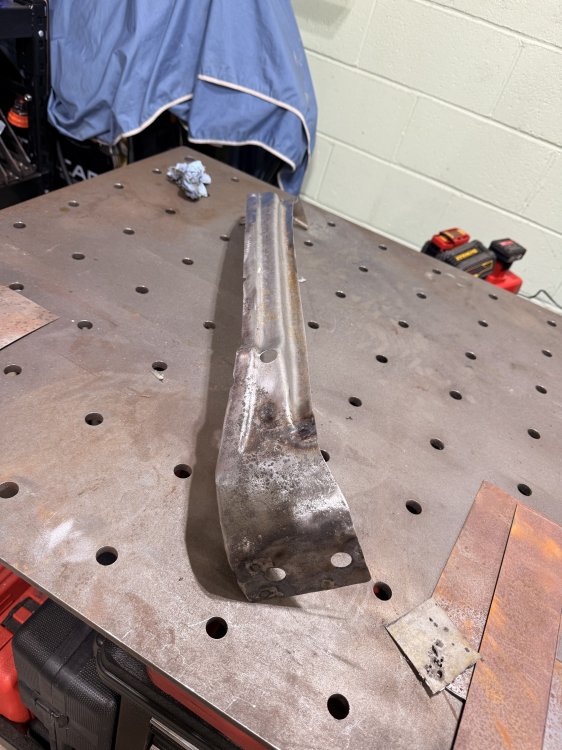

And obviously file finished


I need to fix the panel gap, a line of weld should fix it at the point of the door.

  • Like 1
Link to comment
Share on other sites

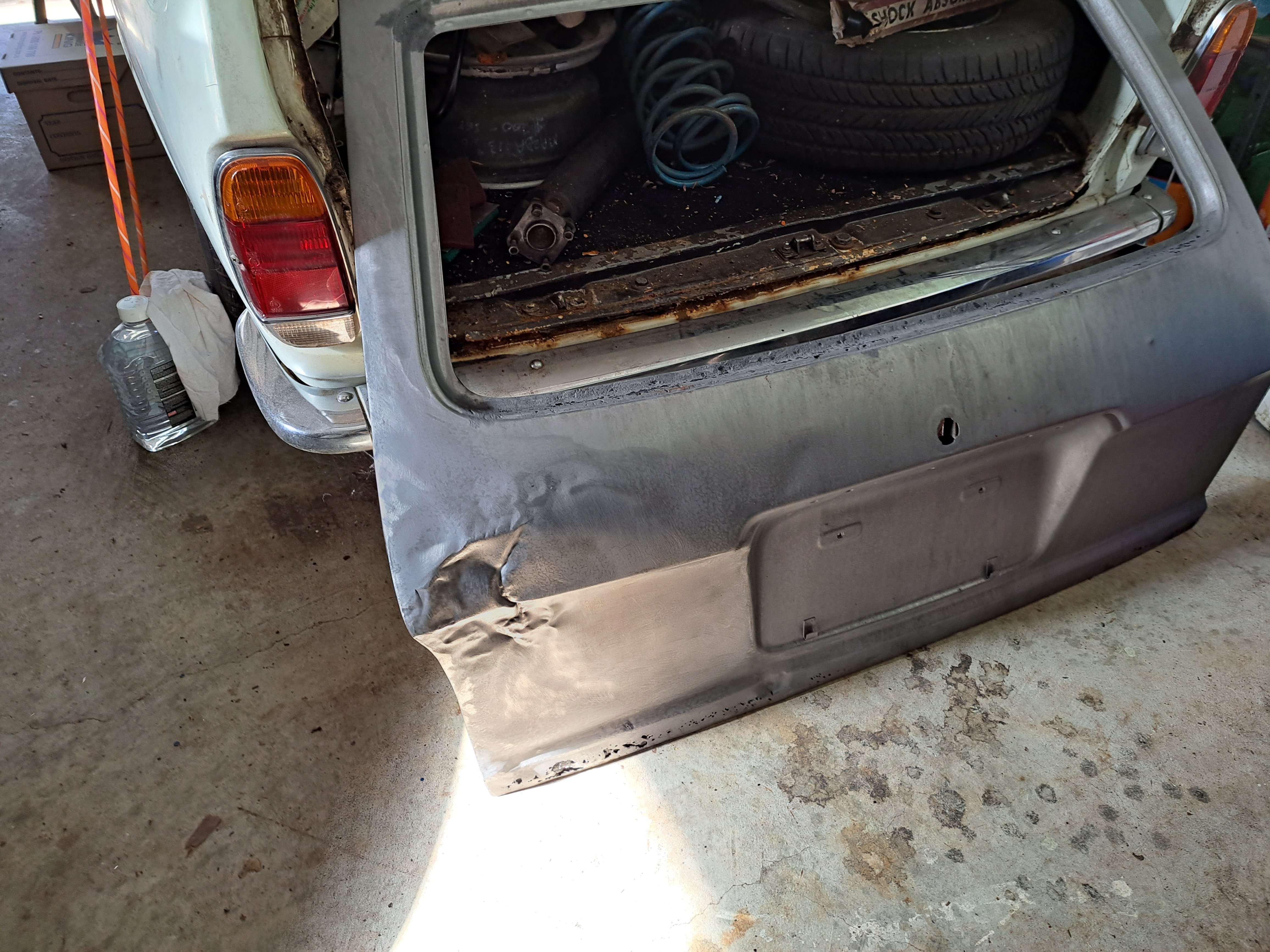

The tail gate is in a sad shape, there is much rust to be repaired and then a serious accident had seen the left have caved in and filled with bog.




Following the bread crumbs I can see that the rear passenger fender had been replaced, and the internal panels are... Questionable as there were also covered in bog. So I have started on the tail gate and will post pictures soon.

Link to comment
Share on other sites

I have also removed most of the steering and suspension.

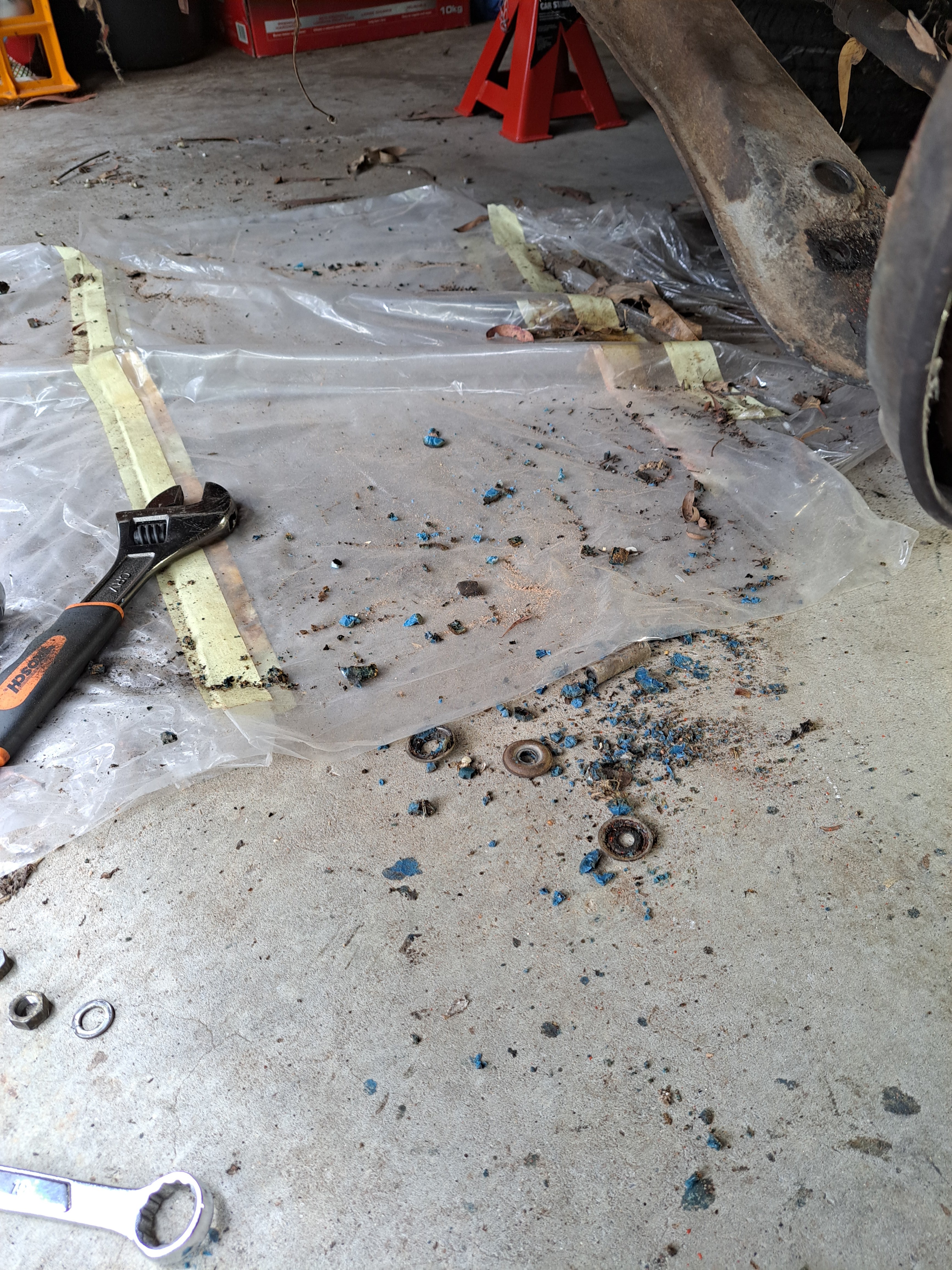

The bushes for the suspension where so shot that they literally crumbled and fell out when I jacked the car up.

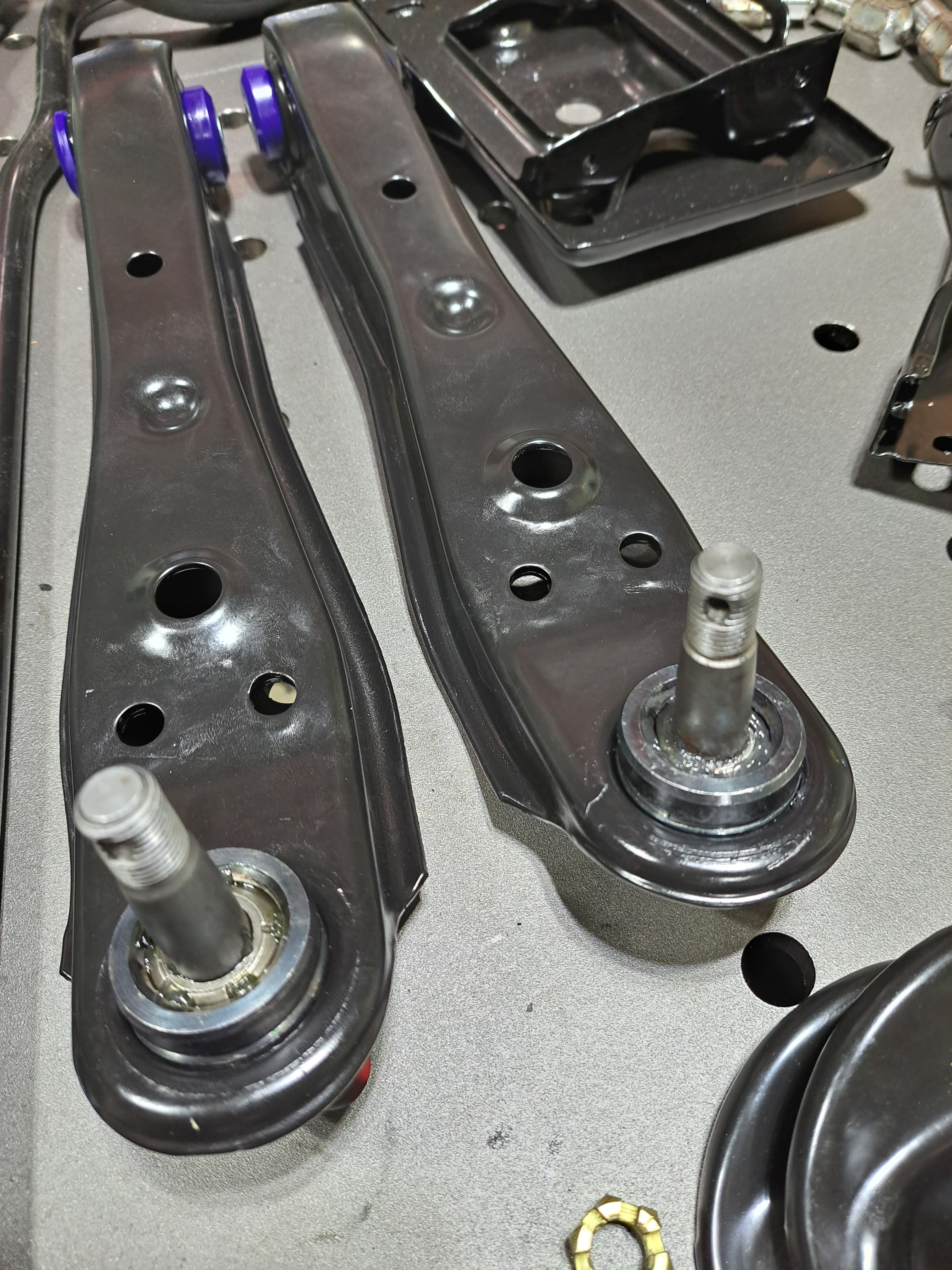

But following the labor of love I spent time with the wire brushes, a jug of degreaser and a few cans of wurths rust converter, primer and then Eastwood's top coat in satin black. A sneak peak of the suspension arms with superpro bushes20230213_183910.thumb.jpg.9ffec32400547921a56d4a4a390c5734.jpg





Link to comment
Share on other sites

Hi Geoff,

               Fabulous start to your project thread.  I take my hat off to You.  That is such a daunting project, when what you have to start with; requires so much love/care, & work.   Enjoy, & keep this thread updated.



Cheers



Banjo

Link to comment
Share on other sites

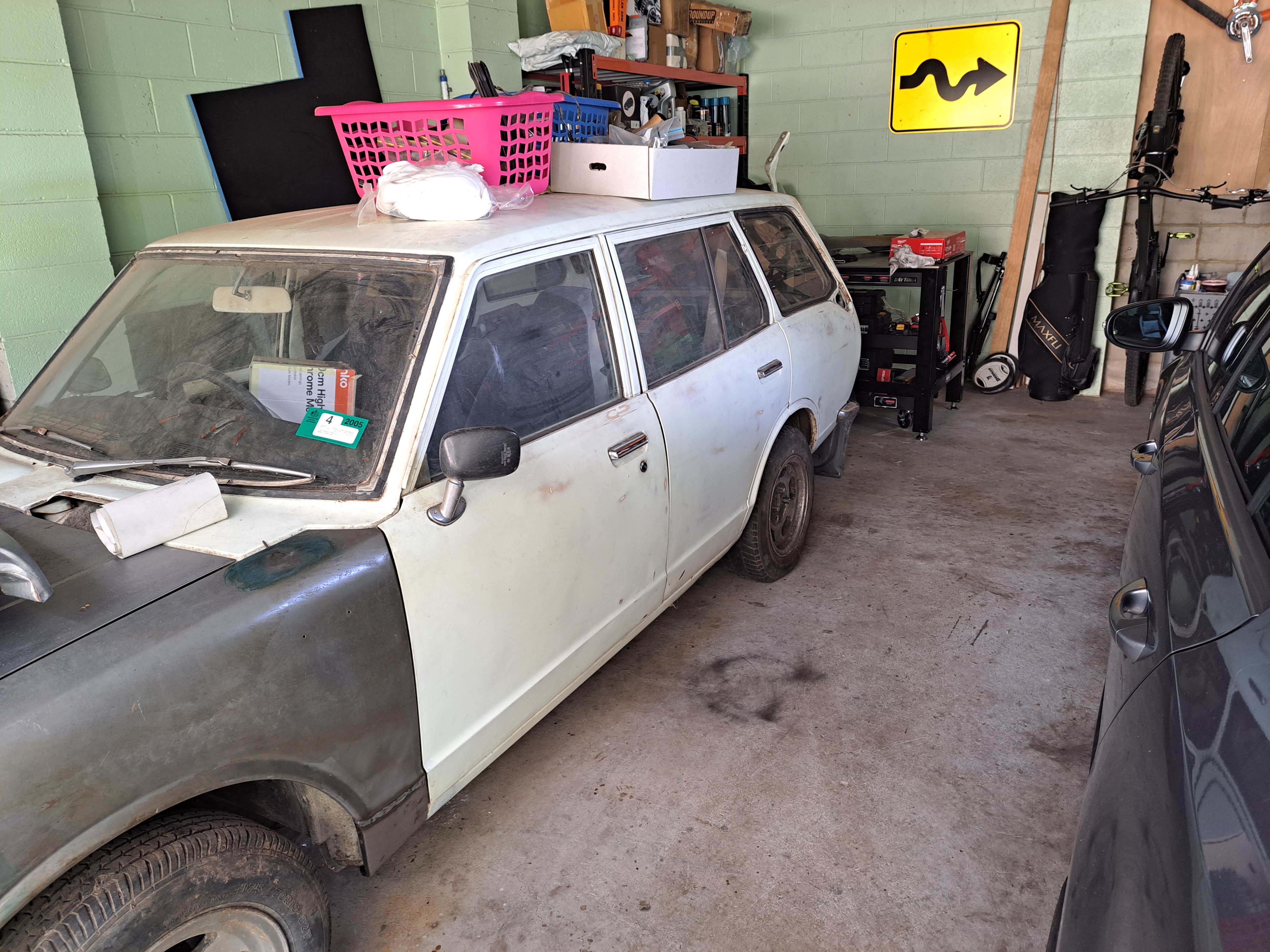

From the original photo the rear shocks were completely gone as the car was sagging in the rear. So I have replaced the rear shocks with some kyb shocks for now... I'll post up a bit later with my adventure down suspension lane




The rear shocks were stuck in their compressed state, but once the kyb shocks went in the car went back to a neutral stance with a little weight assistance.




So I marked the new shocks and started on the new shock brake combo. That's a mission but I think it will work out

Edited by wenisman
Correction
Link to comment
Share on other sites

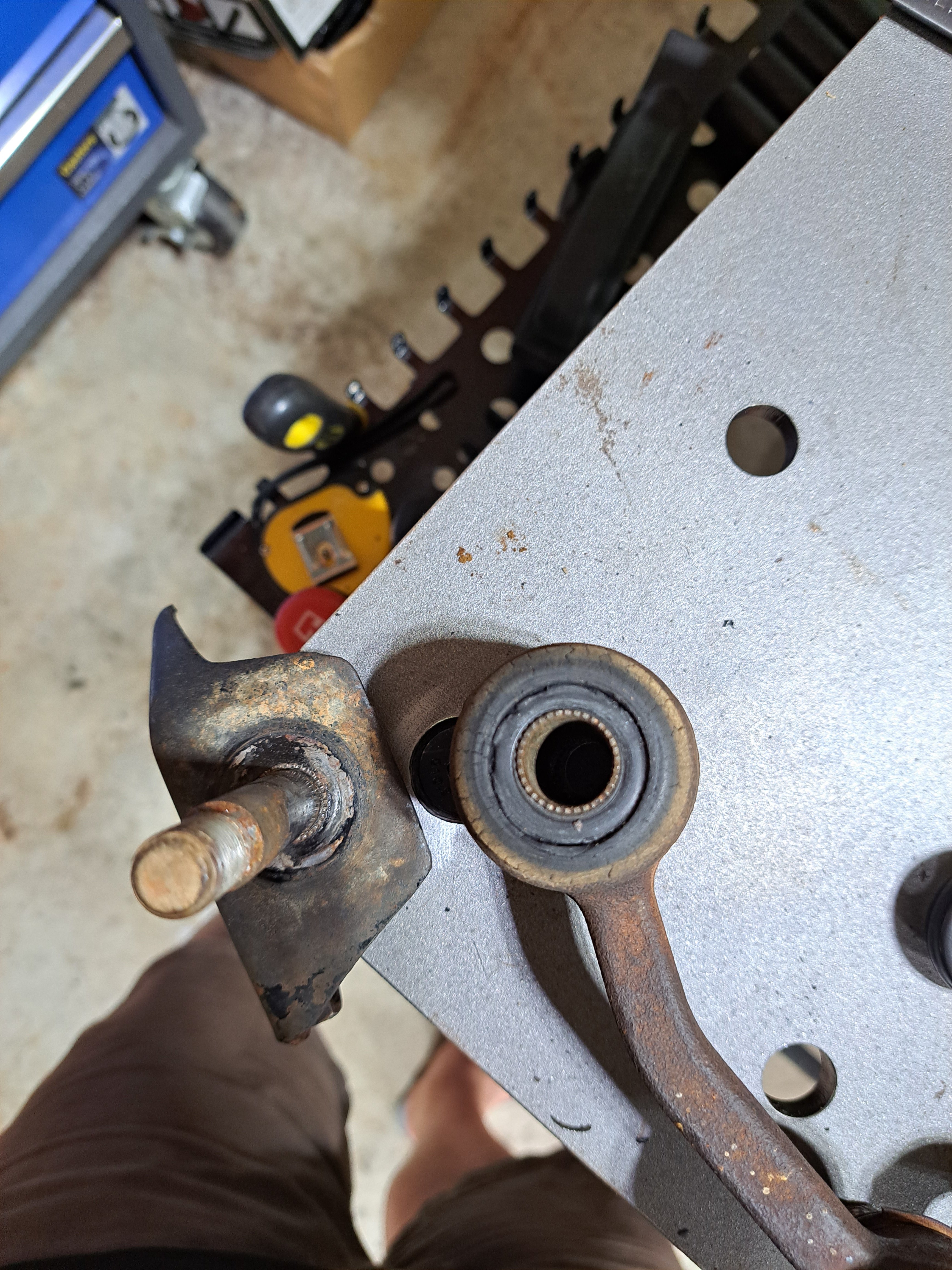

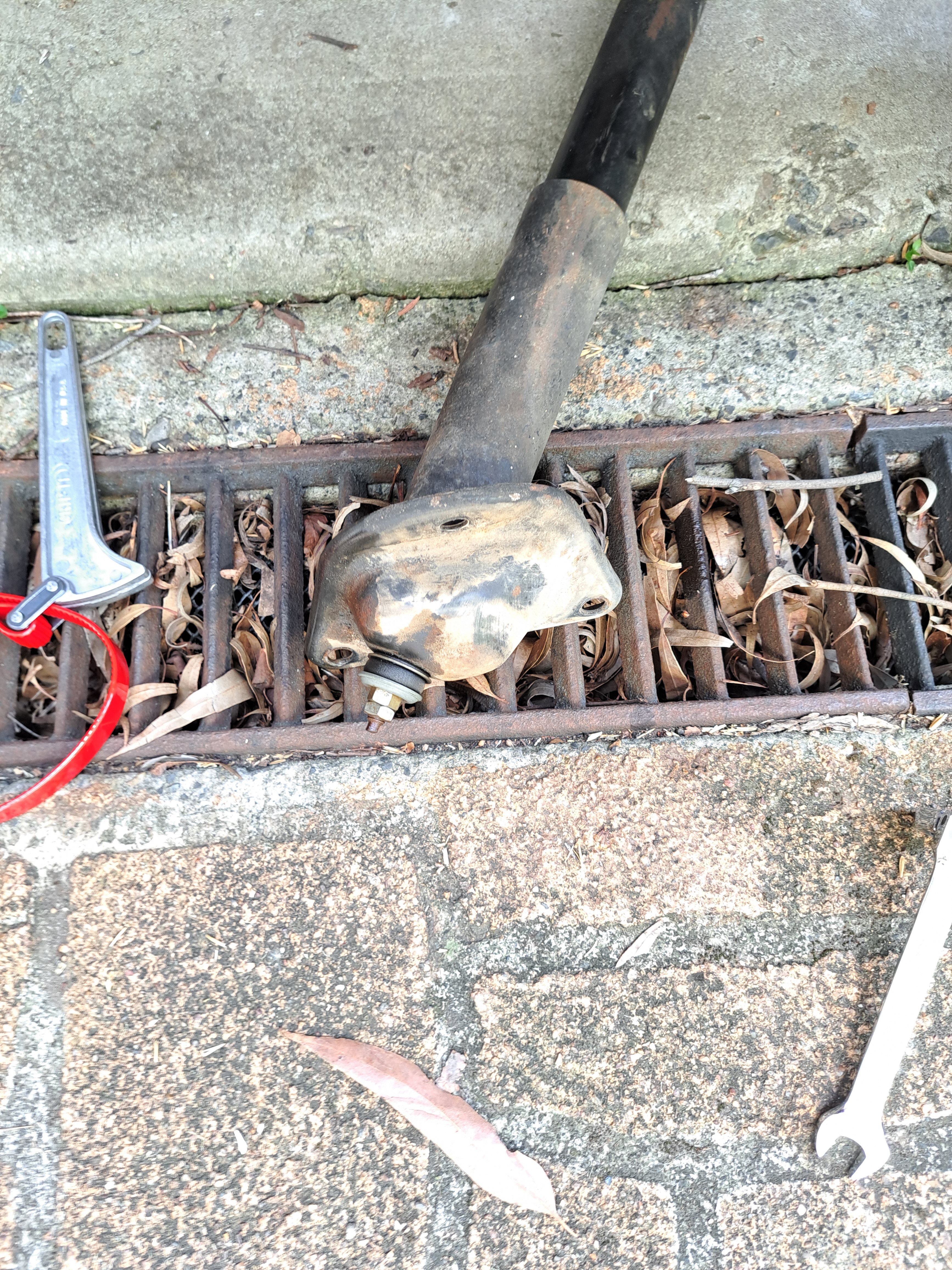

I also spent some time with the idler arm, the thread on it says enough, but the old one was seized on. I stripped the bolt getting it off... But the rubber bush was pretty much torn through which is not ideal.




But I have a new 555 idler arm, it's once again rust converted, primed and painted in satin black.

Whilst I was at it, the old locks were... I don't know how to describe it except to say some one has put a screw driver through all of them. So I tried the ace auto parts locks but the ignition barrel was wrong. However auto parts complex had the right locks for the job! I'll post up soon how they look, but they fitted... I am not happy with the look of the petrol cap but I'll fab something up

Edited by wenisman
Edit
Link to comment
Share on other sites

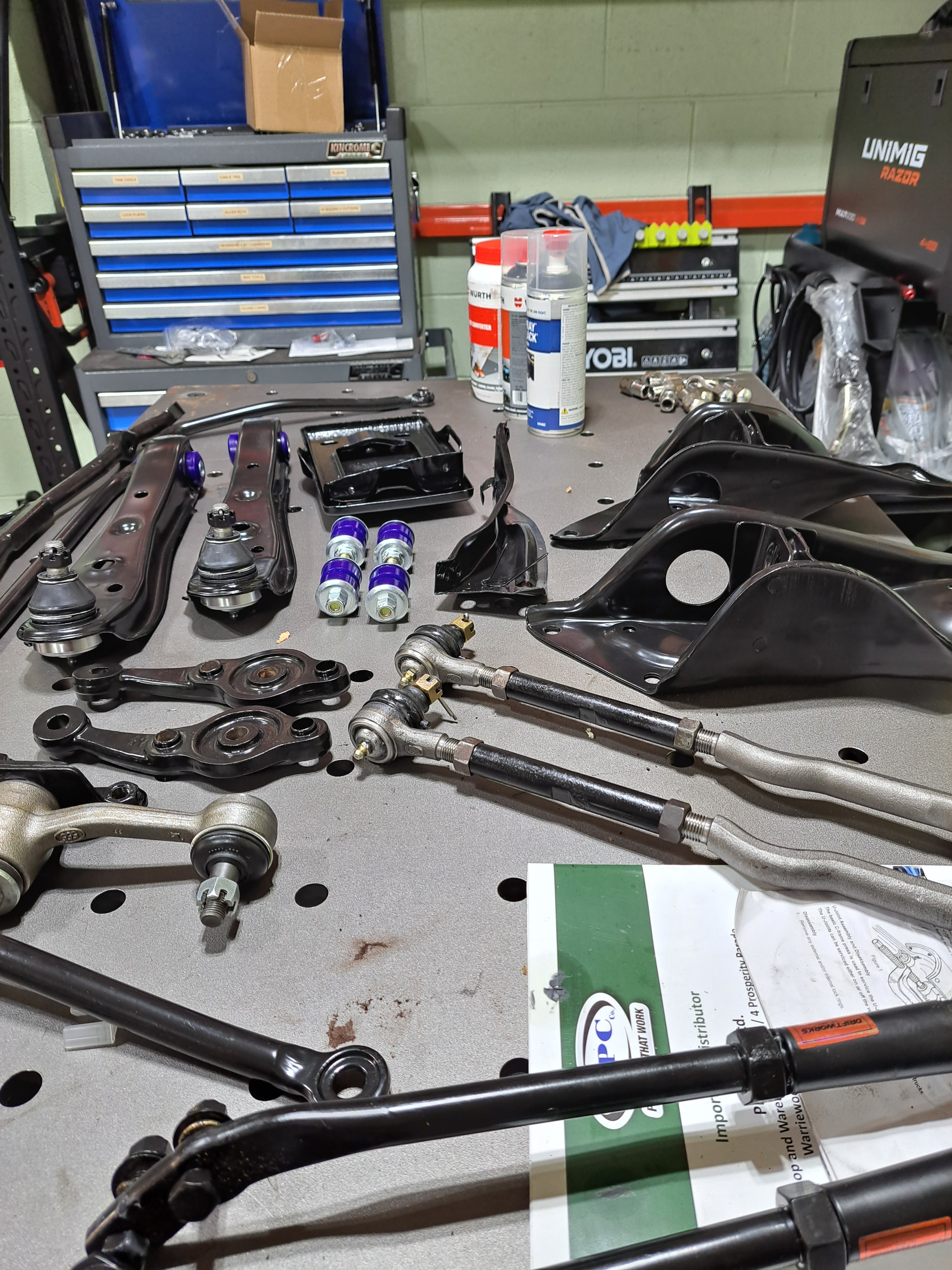

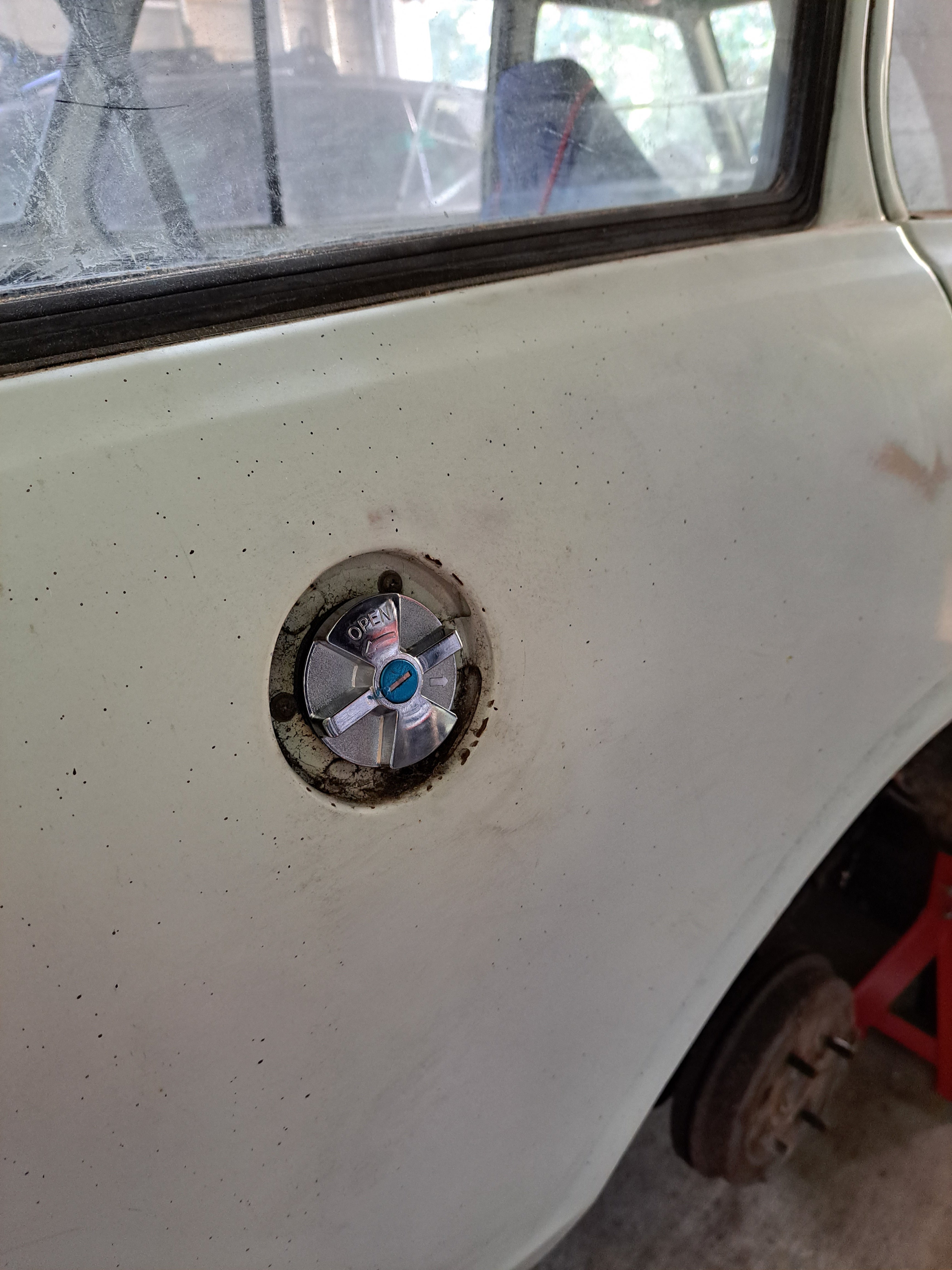

So the completed set of steering and suspension for the front is looking ok. I feel like I should have painted the lock nuts on the tie rods so I'll go back and fix that.20230217_104814.thumb.jpg.a7d3e371b5f7006a1977f74399ac1541.jpg

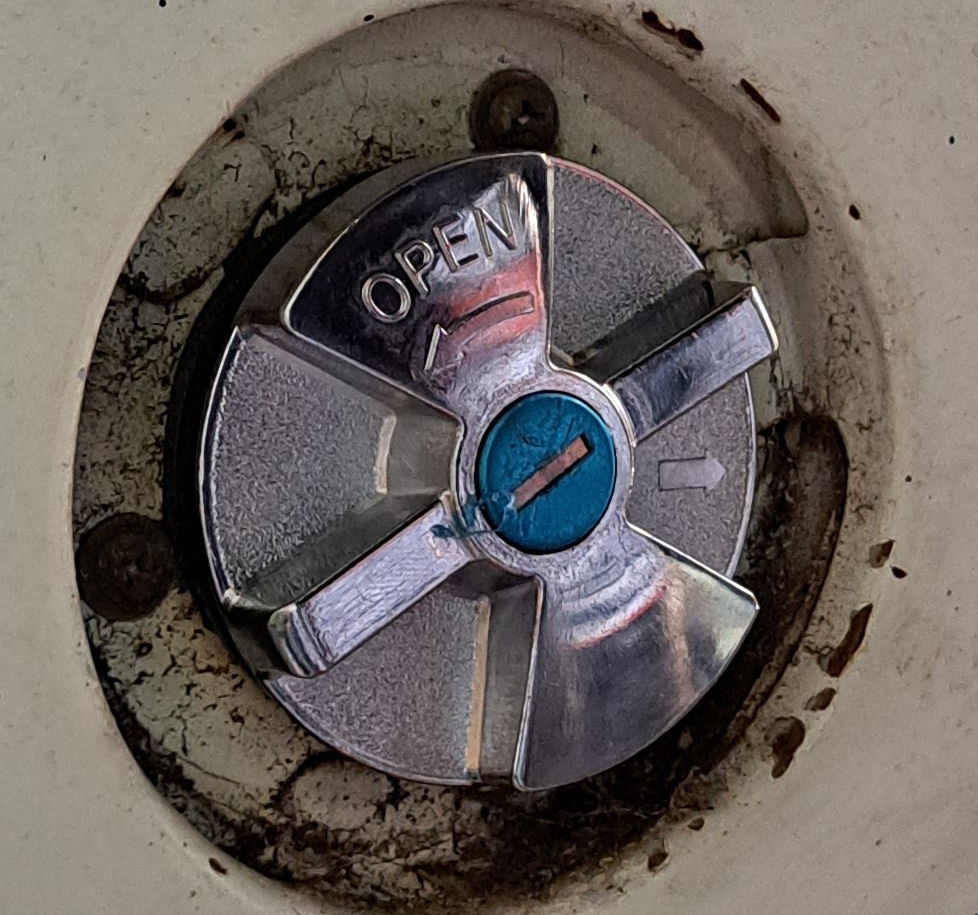

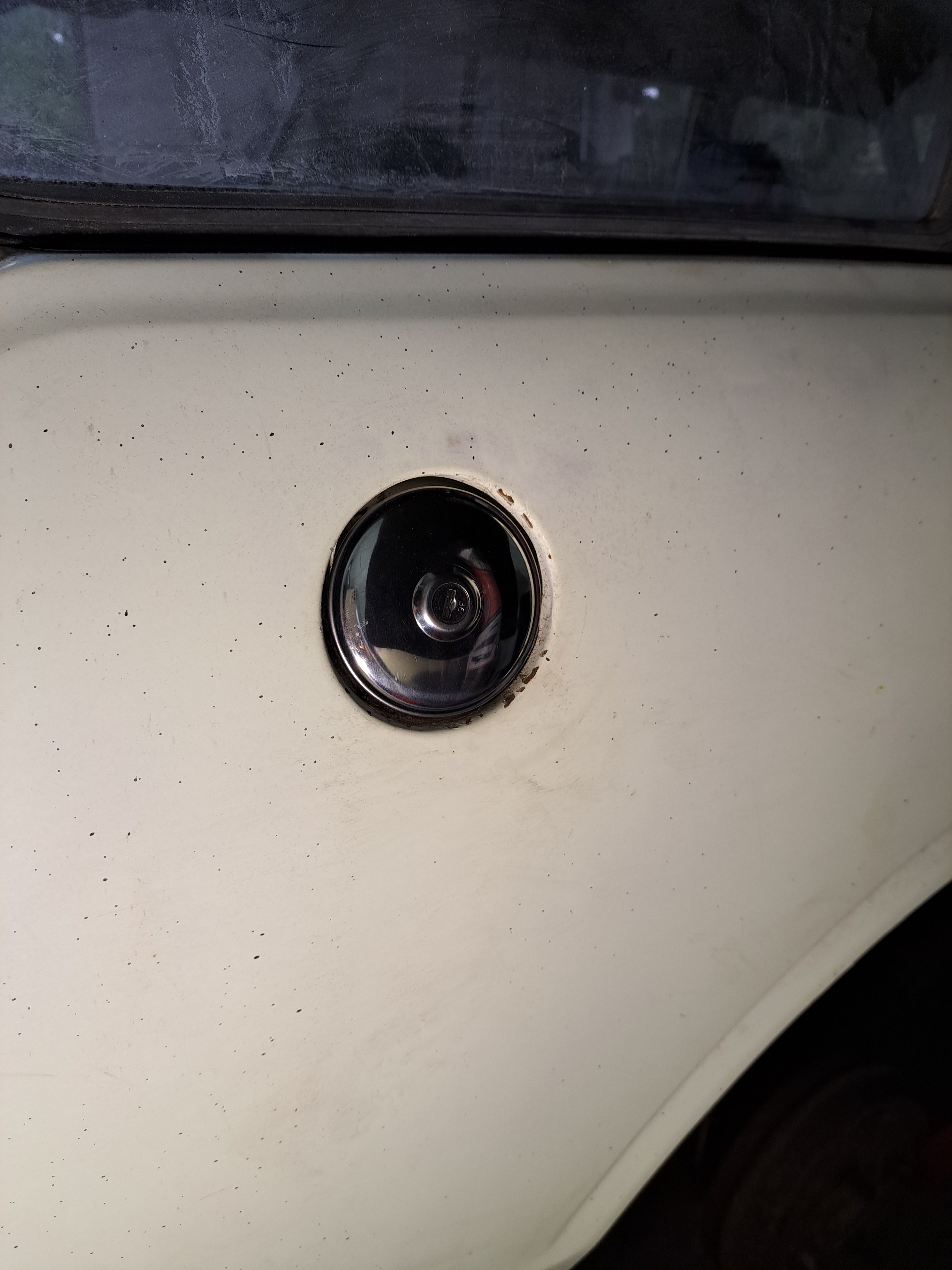

And now the new petrol cap is in place I'll start thinking how I can fab something to make it look better.... Suggestions welcome 🤗
