Dyno Sheets


curly

Recommended Posts

Members dont see this ad
  • Replies 44
  • Created
  • Last Reply

Top Posters In This Topic

  • 1 month later...
  • 2 months later...
  • 1 year later...
  • 6 months later...
  • 4 months later...

Corolla Ke20 built to Historic Group Nc spec



3K bored 40thou to 1198cc

Bigport head

Twin 45 Dcoe Webers





Crappy wild cat extractors and 2" street exhaust - tuned length exhaust and possible upright coming soon



Big thanks to Nick at Topend Performance 0413 967 462 for his efforts with this motor. Head flows over 160hp.


Link to comment
Share on other sites

  • 2 weeks later...

1983 AE71 sport coupe, 4AGE smallport, J160 6 speed, Richmond Racing (Dwarf car) 3.9 final drive, fitted into an AE86 disc brake rear diff






1606cc 4AGE N/A, smallport head and block,

3 rib rods and crank, with Euro OEM Toyota 10 to 1 pistons, w/ aftermarket gudgeon (wrist pins)

Web Camshaft - grind 577 (equivalent to a 264 type cam)

TRD valve springs













140-145 whp depending on the dyno. 140-145 whp calculates to about 160-170 crank hp





dyno run back in 2012 -



Link to comment
Share on other sites

Damn...nice results dude!



Blue Things Specs: 4A-GE 16v bigport, standard crankshaft, conrods & 9.4:1 pistons. 0.25 head & 0.25mm block skim, TRD headgasket, standard camshafts/valves/springs, some minor port work by Head 2 Head.

DIY intake manifold, Keihin CVK 40mm carburetors (185 mains, 35 idles, 160 airs, no washers on needles), random exhaust.




Link to comment
Share on other sites

  • 1 year later...
  • 1 year later...
  • 4 years later...

Starlet KP61

NA 4K bored to 80.5mm

pretty much stock CR

balanced and lightened bottom end (+/- 2.5kgs lighter)

+1mm oversized valves

Kentcam T124 camshaft with handmade adjustable pulley

martelius handmade manifold replica

2x weber idf 36

eletronic dizzy

std 98 octane fuel

87hp (+/-  65kW with muffler)

90hp (+/- 67kW without muffler, straight piped)

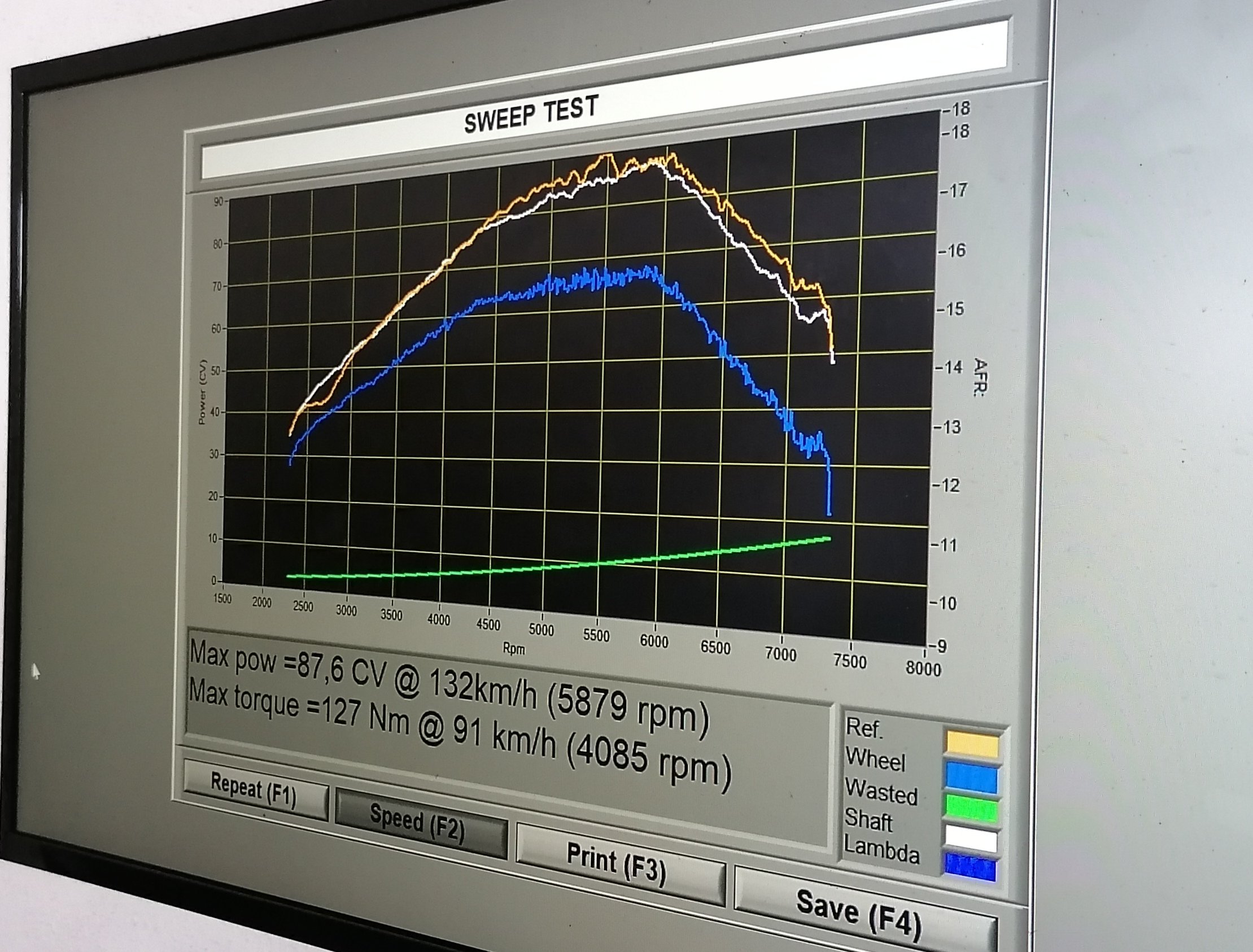

com panela1.jpg

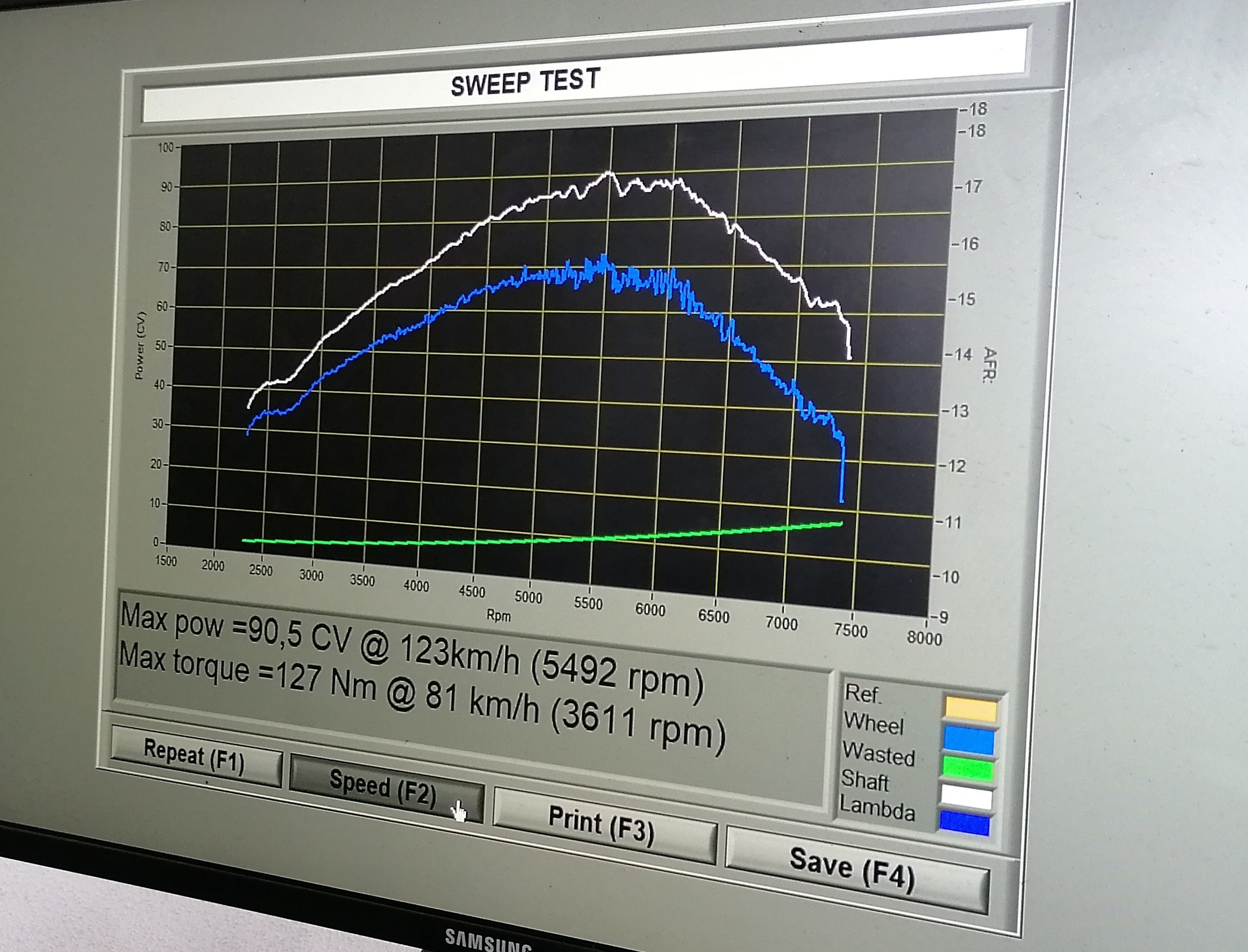

sem panela1.jpg

Link to comment
Share on other sites
