Hi Rune, This depiction, is probably how your alternator is hooked up. The battery connection on your alternator is not one of those three (3) light wires. The battery connection, is the very heavy terminal, just showing in the top of your pic of the alternator connections, with the big "B" next to it. The three (3) wires, are most likely, the same as the IG (ignition), S (sense battery voltage), & L (light - charge) in the above depiction. So if you can determine which wire one is the charge light, which shouldn't be too hard, both remaining wires go to the battery. One via the ignition switch, & one directly to the battery. That last one, would be connected to the fusible link, which is usually very close to the battery terminal itself. P.S. Most of the alternators we have in Australian Rollas, with internal regulators, only have two (2) wires. The battery sense, is quite often, just connected internally inside the alternator, to the "B" terminal. Let us know what you find. Cheers Banjo

Giday Rune, Thanks for the pics. Is that a four poster hoist, you've got your Rolla sitting ? I wish I had one of them ! With this "thin" radiator you have found, I presume you are still going to remove that bulky clutch / fan arrangement, & still fit an electric thermofan. Is the alternator one with an external or internal regulator ? I thought I spied a box on the engine bay wall, just across from the turbo, that looked like it could be an external regulator ? If the alternator is the original, that came with the 2TG motor, then it shouldn't be too hard to find a wiring diagram for it, to see where those three (3) wires go to. The other way is to strip the ends of each of them, a little & check the continuity to other wires in the likely places, with the same colour code. Is it a Bosch alternator ? Has it got a model number on it anywhere ? I suspect it is an alternator, with a built-in regulator, so any wiring diagram, will indicate where those three wires go to. Charge Warning light ? Ignition Switch ? Battery ? Do a little research, & you should be able to solve it. Start off with the Charge warning light. That one will be easy, & then that only leaves two (2) off. Cheers Banjo

Hi Daniel, I'll certainly take a few pics of the 36:1 trigger wheel, when I receive it. Wow, that's a lovely looking Rolla you have there. I love it's stance, & the wheels. What other mods have you done to it ? Is the engine stock ? You might be interested in the COP setup, I have made for my 4K/5K, which should hook up to the Speeduino easily, either sequentially, or wasted spark, paralleling them up in pairs. One of the usual problems with these long stemmed COPs, is that they get very hot; being basically inside the head. With my arrangement, & all that air passing around them, that won't be an issue for me. Cheers Banjo

Hi Daniel, Beautiful picture ! Thanks. What model Speeduino board are you using ? The V0.3 or V0.4 PCB ? I've got a V0.37 kit, which I put together at the end of last year, but haven't had a chance to test, or hook it up, until this horrible COVID-19 thing, slowed us all up. I've actually got it running on the bench right now, & testing all the inputs & outputs using Studio Tuner, with latest firmware. I presume you are running your Speeduino in "distributor" mode, or have you got 4 off seperate coils, or maybe 2 off coils & waste spark ? What sort of enclosure did you put your Speeduino in, & where did you mount it ? Under the bonnet, or under the dash, inside somewhere ? The V0.37 board doesn't seem to have enough mounting holes in the boards, to mount it securely. Would be interested how you fared with yours, whereas the V0.4 seems to be specifically designed for an enclosure. If there any other Rollaclub members, who have used a Speeduino successfully, you might like to add your thoughts, in this thread. Love to hear from you. One of the advantages of "machined" trigger wheels, is, that if they are centred perfectly, the gap between the Hall sensor tip, & the end of each tooth, is pretty precise. Have you rotated your laser cut ones, & measured the clearance with the sensor tip with a feeler guage to see what variation you obtained ? Sorry about all the questions, but I hope to have it up & running, as soon as I receive the 36:1 trigger wheel next week. Cheers Banjo

Hi Daniel, Thanks for that larger photo ! I suggested in this thread earlier, that an ideal point to mount the Hall Sensor bracket, would be to two (2) mounting points, on the lower front edge of the 4K block, where the A/C mounting bracket was attached. Looks like you might have used those holes also. Could you provide us with a picture from the side, so that it depicts the whole bracket assembly ? Thanks ! Banjo

Hi Pete, Has your part book got the P/N for the KE20 strut tops ? Without part number, I could not check availability with Amayama. I placed an enquiry with Amayama yesterday, describing part, but now they need chassis number. I thought I had found it on the web yesterday, but it turned out to be a front indicator orange lense. Cheers Banjo

Hi Mason, There are two types of 5 speed boxes available for the your KE Series. There was one that came out of KE55 Coupes (about 1979), that has the gear shifter coming out through the floor, in the exact same spot as the 4 speed. There is the 5 speed GB out of the KE70, that has the extension on the rear, so that the shifter point is further back. This is probably the preferred option, but does require cutting a hole in the floor, & changing the rear gearbox mount & cross brace, to the KE70 one. Both these options are a straight bolt up to a 3K-4K-5K engine. Just keep searching, & you may come across one. I got one, from a guy several years ago on the Gold Coast who was cleaning out a garage, because they were moving. He only wanted $100 for it. When I inspected it, on the garage floor, it was attached to a 4KC engine. I said I'll take it, so you'll have to unbolt it for me. Bugger that, he says . . . just take the lot. Luckily, I had the trailer on behind my car, so we slid engine & gearbox, up into the trailer, & I was off, in case he changed his mind. Turns out the 4K was in good nick, so I'll mark that purchase down with a big tick against it ! Only issue with the 5 speed boxes are that parts for repair of same are getting very rare, including bearings. Cheers Banjo

Thanks Pete ! I've learnt something today. A few years ago, I refurbished all my KE30's, ball joints, tie rod ends, & pivot point, with "555" branded parts, which I purchased on-line. I remember at the time of installing, thinking, these are really good quality, & look exactly like the originals, I'd just removed. Now I know why ! Thanks. Banjo

Amayama might be the go ? You really need to have the original OEM part number, to make it easy, but it's amazing how much brand new stuff they have for olde Japanese cars. Some parts are expensive, but others, I've been presently surprised. Very fast delivery to Australia, as they apparently consolidate everything for Australia, into one shipment, & then deliver out of a warehouse somewhere in a southern suburb of Sydney. https://www.amayama.com/en Cheers Banjo

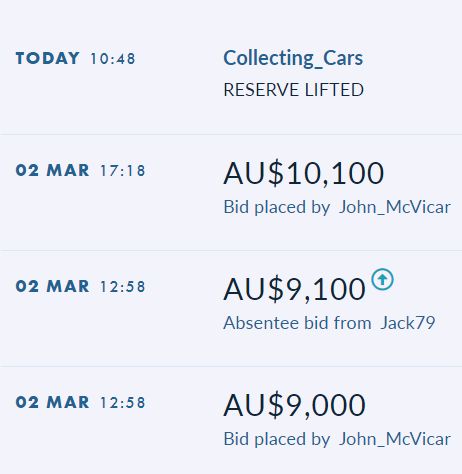

I think that KE38 sold for about $ 7.5K a year or so ago. It wasn't original. It had been resprayed etc. off memory.

Hi Luca, Welcome aboard ! Where are you located, & what sort of availability to alternative engines do you have ? How much power do you need to generate ? What are you going to be using your KE38 for ? What shape is the body & the rest of the car in at present. (pics please ) What kind of transmission, is currently in your KE38 ? auto/manual/4sp/5sp ? Don't forget, if you start upgrading your engine, there are a lot of other things, like brakes & suspension, that must also be upgraded. Give us a bit more description, & your intentions/aspirations, & we'll go from there. Does your KE38 look a bit like this one. Think this one might be a 1978 model. Cheers Banjo

Welcome Aboard ! Yeah, I would be doubtful if any the main-line spare parts places stocked them, as they are in pretty small demand, these days. You best bet is ebay. There are a couple on there at present; both second hand & new aftermarket ones, out of Thailand. There are still a lot of olde Rollas in that part of the world, & it has spurned an after market manufacturing need. All the Rolla bits, I've sourced from Thailand over the years, have been pretty good. Someone, on here might have some, they can spare. Love to see some pics of you & your grandson's project. Which state & region, are you located ? Cheers Banjo

Hi Mason, Thanks for the pics ! You really have been busy on your KE36 recently. What region of NSW are you located ? I actually had a KE36, exactly the same as yours, years ago. It actually was white also. Went to Rolla heaven years ago. Died of the dreaded "cancer". Has yours really only got 73K klms on the clock ? Definitely, worth looking after. I'm a presuming it has a 4 speed manual gearbox ? If so, an upgrade to a 5 speed, from a KE70, would make it very pleasurable to drive. Cheers Banjo

Hi Mason, Glad you got it all fixed, & that we were able to help. Where are you located ? Keep an eye out for a good second hand, or rebuilt 85A Hilux alternator with built-in solid state regulator. They come up on ebay every now & then. One of the best upgrades you can do early Rollas. Pity your cars electrical wiring, has been hacked by someone else previously. Makes it a bit hard for you. Another thing you can easily do, is clean all the earth points. Battery negative terminal. Earth terminal between battery negative & the chassis. Earth/chassis strap or cable between chassis & engine block. That one is very important, as it takes all the starter current, which is the largest load in any car, & potential for the greatest voltage drop or reduction. Any other electrical issues, just give us a yell. There are a couple of "experts" on here. Don't really like using that word "expert". Ex is a has-been, & a 'spurt", is a drip under pressure ! Cheers Banjo

Hi Geoff, Certainly will let you know. Cheers Banjo

Hi Rune, Here is a better pic I found on the net, clearly depicting the difference between the long & short nose water pumps for the 2TG engine. Cheers Banjo

I have contacted the ebay seller, in Melbourne, who is producing these trigger wheels for the 4K engine. He is supplying me one with a 36:1 configuration, which I should have later this week. I had a quick look at the crankshaft pullies I have floating around my shed for 3K, 4K, & 5K engines. The 3K & 4K, appear to be all the same, at about 110mm in O.D. The 5K pullies are larger in diameter, at around 125mm O.D. I even found one 5K pulley, with a harmonic balancer built in ? I'll have a quick play, later today, to ensure the 3K/4K I.D., is the same dimension, as the 5K pulley, as I may want to fit it to the 5K engine also on my engine test bed, to experiment a bit. The water pump/fan pullies I have on the shelf all seem to be the exact same O.D. at around 140mm. If that is the case, then on 5K engines presumably, the water pump, & maybe alternator; ran at slightly higher RPM. Have never investigated pulley sizes previously, & was wondering if anyone on here, has gone through this exercise before ? I can only presume, that because the 5K was used on Toyota commercial van & forklifts etc., that they needed extra fan & water pump RPM, to improve cooling ? Cheers Banjo

Hi Tor, Yes, the "long nose" water pump, is to accept the fixed fan assembly, & the short nose water pump, accepts the viscous clutch type fan assembly. Rune may have to source the other fixed fan type water pump, to convert to thermofan. Cheers Banjo

The alloy radiators certainly do cool down quicker. I remember, when I carried out my thermofan upgrade, I was going to install a thermofan cut-out timer, so it couldn't "run on" for more than say 15 minutes, to protect the battery from ever going flat, because the fan stayed on. In practice, the engine coolant gets much hotter, after you pull up, & turn off the ignition. After you pull up, there is no fan on, & there is no "ram effect" of air through the radiator, as the car is now not moving. So if you pull up, & the thermostatic control switch for the thermofan is off, then I find, as I walk away from the car; all of a sudden the fan comes on, as the heat in the block, elevates the coolant temperature. This can sometimes take several minutes, before this occurs. However, after the fan is switched on, it will always switch off, within 60-90 seconds. I therefore decided not to put a run-on timer cut out on. The only reason, I could think, it could still be required; was if there was a condition in the fan motor, that created a high current, which "welded" the contacts in the thermostatic switch, & therefore kept the thermofan continuously running. P.S. I have watched with amusement in shopping centre car parks, after I walk away & look back, to see someone walking past my Rolla, just as the thermofan "kicks in". They stop & look & stare at the car, I presume, not expecting a car that olde, to have a function, which is so common in all modern cars. Cheers Banjo

I know what Pete is saying, because we all want out Rollas to look "olde Skool" when we lift the bonnet, but the truth of the matter is, that the aluminium finned core, is so much more efficient at removing heat than the original old brass or copper cores. From my personal experience, the change-over to an electric fan, & an aluminium radiator, is one of the best & easiest ways to improve the performance of your early Rolla, with quieter operation; more power; & better engine temperature control, being the result. P.S. I had personally been against aluminium radiators, before I did my conversion. I have a mate who is a "Mitsi" fanatic, & he was always having leaking issues with the mating of the aluminium core to the plastic header tanks, & the plastic header tanks splitting. Crossed fingers, I've not experienced that with my Toyota Echo aluminium & plastic radiator. I also installed an override switch, for the electric fan. It is positioned just down on the side of the console. It will get repositioned into the dash, one day. Mine is a three position switch, with a light that shows when the fan is in operation. 1: Fan on under control of the fan thermostat switch. 2: Fan off altogether. Used when crossing creeks, to prevent water being sprayed up over engine electrics. 3. Fan forced on, even if thermostat switch is off. Good for pre-empting a long mountain uphill run, approaching, or if you get caught in heavy, or stand-still traffic. Cheers Banjo

I still remember well, the first time I drove my KE30 after I had done the electric thermofan conversion, & got rid of the engine driven fan, altogether. It was a revelation how much energy is taken to drive that fan. I had a light on the dash, to show when the fan was switched on. It hardly ever came on, only when you pulled up at traffic lights, & there was no ram effect of air passing over the engine.

Hi Rune ! Welcome aboard. I'm sure others have come across this problem before. The clutch arrangement on the engine driven fan, is quite deep, & does take up a far bit of room. Your best option is to remove the engine driven fan altogether, & just retain the pulley, to run the water pump. Then you could obtain an aftermarket electric fan, that simple "ties' to your existing radiator. Another alternative, would be to replace you existing radiator, with another type, (preferably aluminium) from a Nissan or another make, that already has an electric fan as part of it. I used a Toyota Echo aluminium radiator, with integral electric fan on my KE30, which is covered in a post on this forum. Maybe take your existing radiator out, & existing fan off, then run your tape measure over, the space to see what dimensions you have to work with. Just make sure, if you do go looking for another radiator type, that it has in the inlet (top) & outlet (bttm), in the right places to match your 2TG engine. Please post a couple of pictures, once you've got the existing radiator & fan out. Cheers Banjo

Variable Reluctance (VR) sensors are two (2) wire, & do not require power. However, they are amplitude dependent on RPM, & can suffer from interference. They need "signal conditioning" (squaring up), before being fed to most ECUs. Hall Effect sensor, is the way to go. https://fullfunctioneng.com/info/Hall vs VR.pdf There are plenty of generic Hall Effect types around, that can easily be adapted to the K Series engine, with a simple bracket off the engine block. This one on ebay is a tubular threaded / adjustable one, & is less than $ 15. There are two (2) spare mounting holes on the K Series block, where the A/C compressor bracket goes. (exactly the same as the alternator one, on the other side of the engine) They would be ideal, & are in the right area. Cheers Banjo

I have contacted the ebay seller in Victoria, & he has advised, they have 12:1 & 36:1, ex stock, for the 3K/4K/5K motors, both at the same price. They have also previously made a 24:2 one for the 3K/4K/5K motor, so can cut another one, without issue. They are also prepared, to cut any preferred custom arrangement. The nice thing about all these, is that they come with mounting screws etc. & it will bolt straight up to the 3K/4K/5K crankshaft pulley. Anyone that is interested, should hop on the ebay listing, & contact the seller. Cheers Banjo

Hi Robert, Old 3K motors, have a few areas you should check, if you are going to take the sump off, while it is suspended. The 3K motors all had a double timing chain, but the oil pressure fed tensioner, does wear, & the timing chain can stretch. They have been known to slap on the inside of the cover, & in one extreme case I read of, wore right through the aluminium timing chain case. If you have the sump off, it is worth removing the timing chain cover, & inspecting chain, tensioner, & sprockets. If nothing else, the crankcase ventilation in this area is poor, & you will usually find a lot of hardened oil residue build up, that needs cleaning. Also if the sump is attached to the block, with "studs" & nuts, rather than bolts, I would remove the studs on the bottom, of the timing chain cover, & replace with 6mm bolts. It then allows removal of the timing chain cover in the future, without the need to remove or lower the sump, at the front. Cheers Banjo
